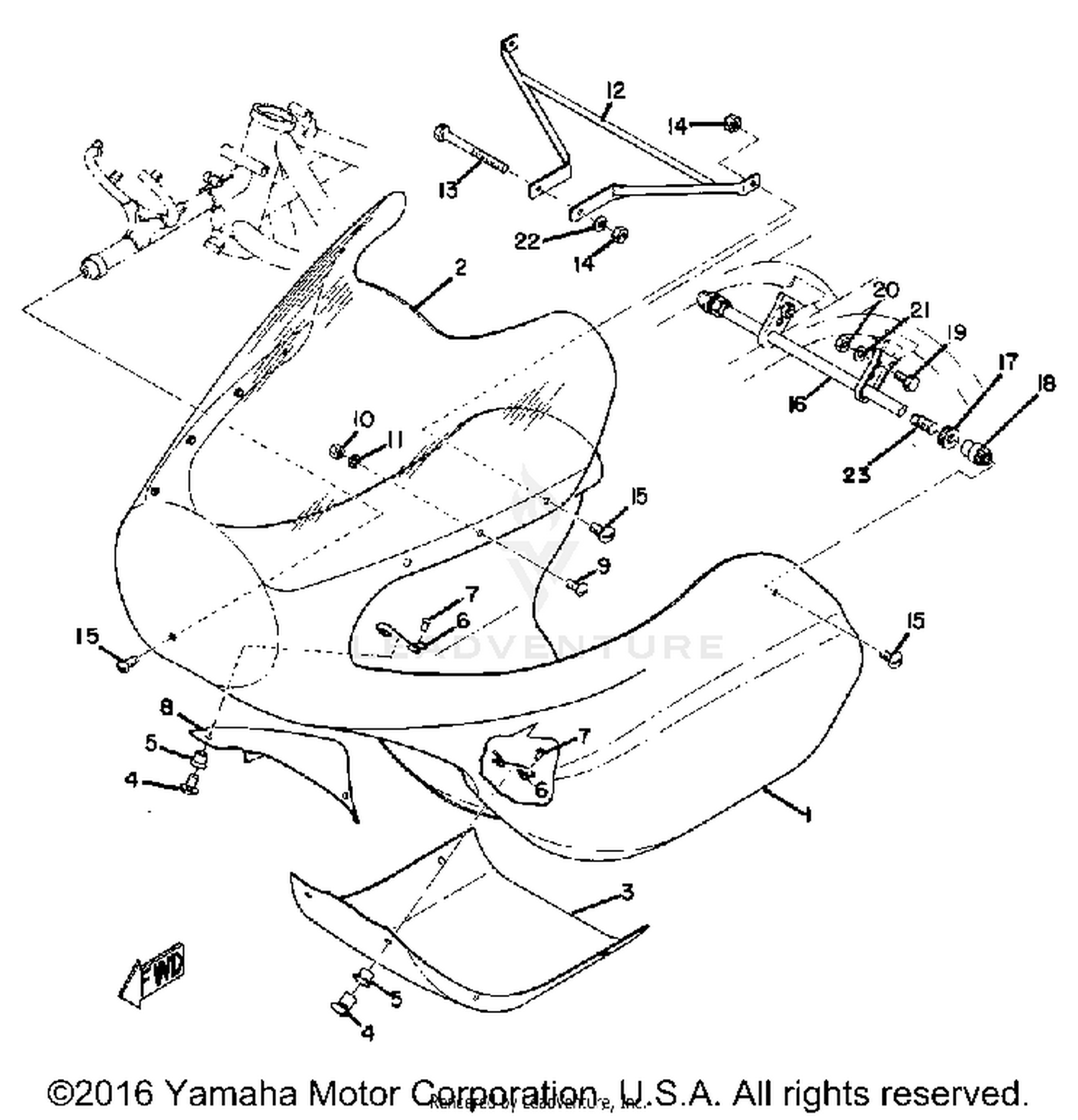

Cowling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TZ250C RR FR W/WDS
ACC-11110-75-05
|
$220.99 | ||
|
Unavailable |
|||
|
#
NO LONGER AVAILABLE
328-28350-00-02
|
$184.99 | ||
|
Unavailable |
|||
|
#2
TZ750E WNDSHD ONLY
ACC-11110-77-04
|
$53.99 | ||
|
Unavailable |
|||
|
#3
COVER, LOWER
240-28385-00-00
|
$51.80 | ||
|
Unavailable |
|||
|
#4
HEAD
240-28386-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#5
RIVET
240-28389-00-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
240-28388-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#7
RIVET, ROUND HEAD
90260-02002-00
|
$1.10 | ||
|
Unavailable |
|||
|
#8
COVER, UPPER
240-28384-00-00
|
$39.82 | ||
|
Unavailable |
|||
|
#9
SCREW, ROUND HEAD
90140-04012-00
|
$6.49 | ||
|
Unavailable |
|||
|
#10
NUT
95301-04600-00
Superseded by 95307-04600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY 2
240-28357-00-33
|
$70.71 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON
97321-06085-00
|
$1.05 | ||
|
Unavailable |
|||
|
#14
NUT, NYLON
95701-06300-00
Superseded by 95707-06300-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, ROUND HEAD
90140-06010-00
Superseded by 90150-06021-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY 3
240-28358-00-33
|
$67.96 | ||
|
Unavailable |
|||
|
#17
NUT, SPEC''L SHAPE
90179-14145-00
|
$2.20 | ||
|
Unavailable |
|||
|
#18
DAMPER
240-28371-00-33
|
$21.99 | ||
|
Unavailable |
|||
|
#19
BOLT, FLAT HD.DRILL
95201-08015-00
|
$2.00 | ||
|
Unavailable |
|||
|
#20
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
TZ250C RR FR W/WDS
ACC-11110-75-05
|
$220.99 | ||
|
Unavailable |
|||
|
#
NUT, WELD
90174-14001-00
|
$3.40 | ||
|
Unavailable |
|||
|
#
FAIRING TA250
ACC-11110-73-00
|
$160.99 | ||
|
Unavailable |
|||
|
#
TZ750E WNDSHD ONLY
ACC-11110-77-04
|
$53.99 | ||
|
Unavailable |
|||
