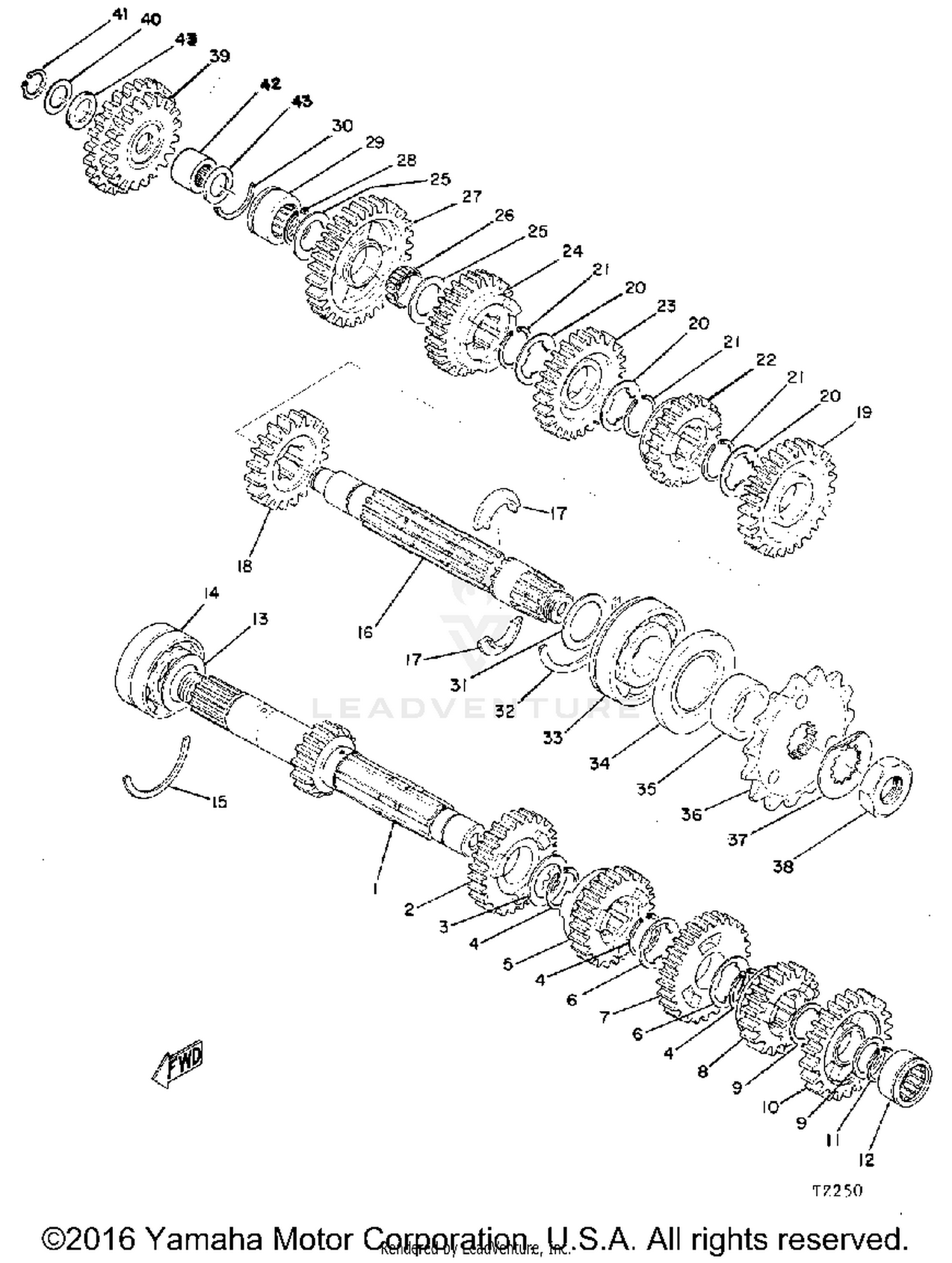

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
328-17411-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
328-17141-00-00
|
$63.01 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-25490-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
328-17131-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#6
WASHER, SPEC'L SHAPE
90209-21105-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 6TH PINION
328-17161-00-00
|
$75.04 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
328-17121-00-00
|
$55.86 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 5TH PINION
328-17151-00-00
|
$75.04 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CYL.#11
93311-22027-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM, DRIVE AXLE
168-17428-01-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#14
BEARING
93305-20502-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93440-52009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, DRIVE
328-17421-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#17
SPACER, DRIVE AXLE
156-17429-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#18
GEAR, 5TH WHEEL
328-17251-00-00
|
$40.08 | ||
|
Unavailable |
|||
|
#19
GEAR, 2ND WHEEL
328-17221-00-00
|
$55.86 | ||
|
Unavailable |
|||
|
#20
WASHER, SPEC'L SHAPE
90209-21105-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
GEAR, 6TH WHEEL
328-17261-00-00
|
$46.37 | ||
|
Unavailable |
|||
|
#23
GEAR, 3RD WHEEL
328-17231-00-00
|
$78.31 | ||
|
Unavailable |
|||
|
#24
GEAR, 1ST WHEEL
328-17211-00-00
|
$73.36 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE (T=1.0)
90201-20276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING (K20-24X10 S)
93310-22057-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, 1ST WHEEL
328-17211-00-00
|
$73.36 | ||
|
Unavailable |
|||
|
#28
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Unavailable |
|||
|
#29
BEARING, CYL.#11
93311-42045-00
|
$30.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP 2
278-17425-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHIM, DRIVE AXLE
168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.49 | ||
|
Unavailable |
|||
|
#32
CIRCLIP 1
278-17424-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING
93306-30506-00
Superseded by 93306-30504-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL, SD-TYPE
93102-35109-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR
90387-25192-00
Superseded by 90387-253M9-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPROCKET, DRIVE
9383E-17122-00
|
$19.49 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVE
9383E-15083-00
|
$45.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVE
170-17461-60-00
Superseded by 9383E-16105-00
|
$15.99 | ||
|
Unavailable |
|||
|
#37
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, LOCK
90179-18020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
IDLE GEAR ASSEMBLY
328-15650-00-00
|
$44.32 | ||
|
Unavailable |
|||
|
#
IDLE GEAR ASSEMBLY
278-15650-00-00
|
$72.94 | ||
|
Unavailable |
|||
|
#40
SHIM 1 (1.0T)
164-17417-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING, CYLINDER.#10
93310-21564-00
|
$4.84 | ||
|
Unavailable |
|||
|
#43
WASHER, PLATE (T=1.0)
90201-154E8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
