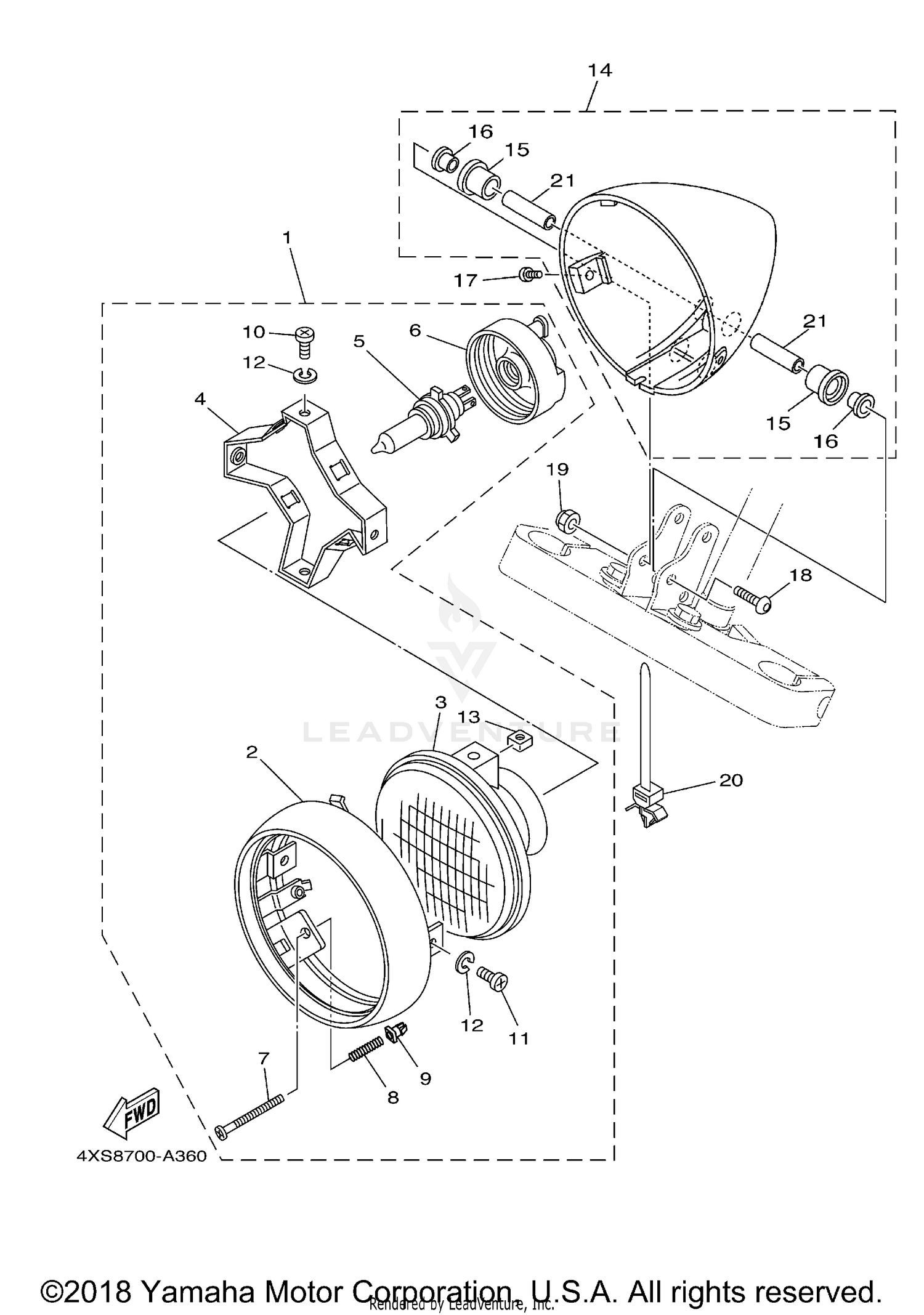

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSY
5KP-84310-01-00
|
$397.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM, HEADLIGHT
5JX-84315-01-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSY
5KP-84321-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET
5JX-84316-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SOCKET
4JG-84397-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, RIM ADJUSTING
90157-04001-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SCREW
341-84332-60-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTING
47J-84334-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
4KG-84365-00-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
50W-84333-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, ADJUSTING
4KG-84334-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BODY ASSY
5JX-84330-00-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, HEADLIGHT
42X-84345-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, BODY FITTING
1FK-84338-00-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
90157-05011-00
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92014-06045-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CROWN
90176-06041-00
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-10112-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR 1
5JX-84388-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
