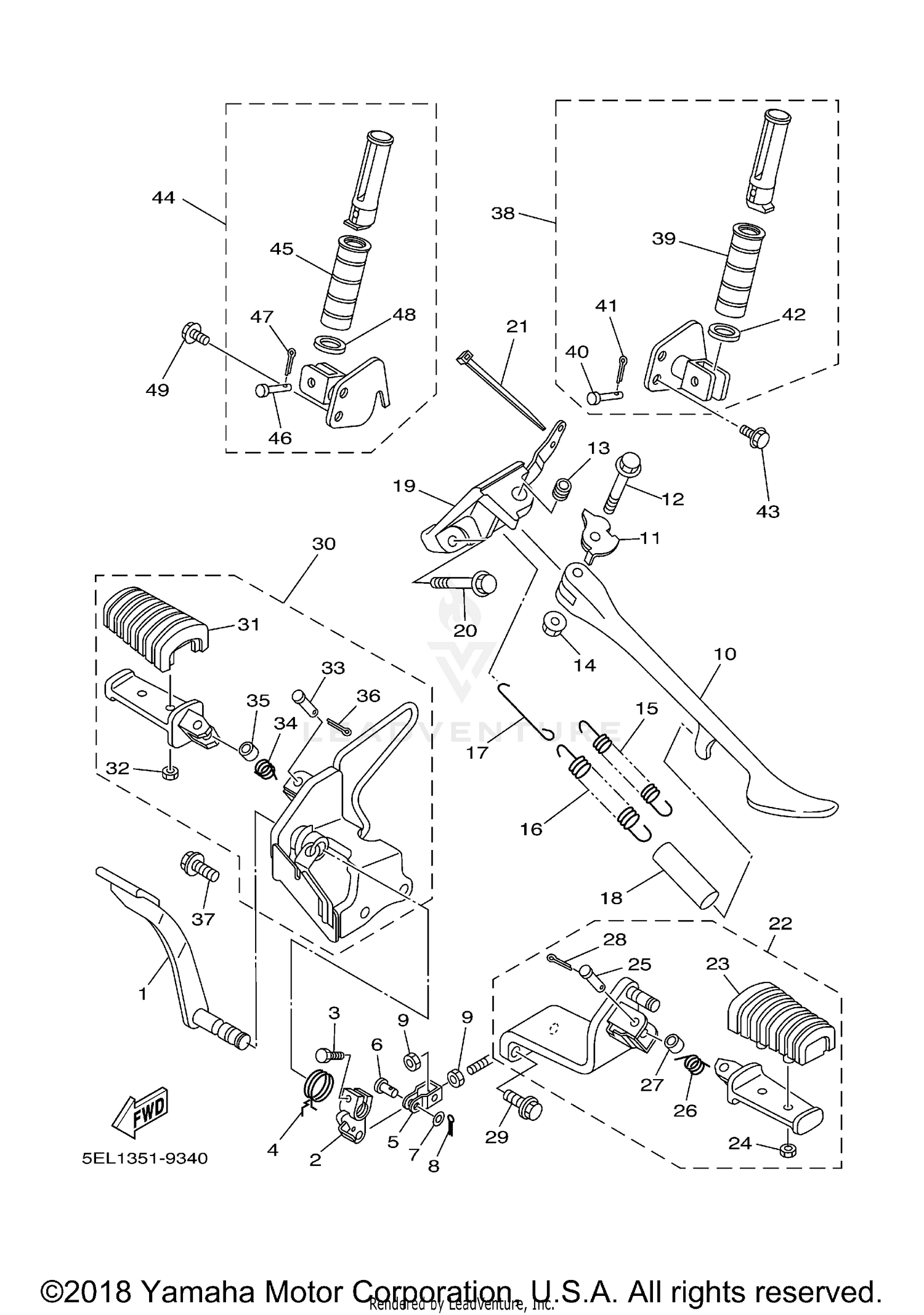

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5EL-27211-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER
5EL-27262-00-00
Superseded by 5EL-27262-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97004-06020-00
Superseded by 97024-06020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, RETURN
5EL-27216-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT
4BP-27222-01-00
Superseded by 4BP-27222-02-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CLEVIS
90240-08124-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08083-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN. COTTER
91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEX
95317-08700-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAND, SIDE
4KU-27311-13-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
5EL-27322-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10012-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-1003G-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U FLANGE
95607-10200-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TENSION
90506-23490-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TENSION
90506-29507-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
LINK, SIDE STAND
5EL-27315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE (L60)
90445-16641-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, SIDE STAND
5EL-27321-00-00
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, WASHER BASED
95817-10045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND
1UA-82591-00-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
FRONT FOOTREST ASSY (LEFT)
5EL-27410-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, FOOTREST
4VR-27413-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
90240-08084-00
Superseded by 91701-08038-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TORSION
90508-18696-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-087K5-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, WASHER BASED
90105-102A3-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FRONT FOOTREST ASSY (RIGHT)
5EL-27420-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, FOOTREST
4VR-27413-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#32
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#33
PIN
90240-08084-00
Superseded by 91701-08038-00
|
$4.06 | ||
|
Unavailable |
|||
|
#34
SPRING, TORSION
90508-18696-00
|
$7.99 | ||
|
Unavailable |
|||
|
#35
COLLAR
90387-087K5-00
|
$9.99 | ||
|
Unavailable |
|||
|
#36
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Unavailable |
|||
|
#37
BOLT, WASHER BASED
90105-102A3-00
|
$9.99 | ||
|
Unavailable |
|||
|
#38
REAR FOOTREST ASSY 1
5EL-27430-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, REAR FOOTREST
4WM-27433-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, CLEVIS
91701-06032-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN. COTTER
91490-25020-00
|
$3.12 | ||
|
Unavailable |
|||
|
#42
WASHER, PLATE
90201-210U0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, WASHER BASED
90105-082A5-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#44
REAR FOOTREST ASSY 2
5EL-27440-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER, REAR FOOTREST
4WM-27433-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#46
PIN, CLEVIS
91701-06032-00
|
$8.99 | ||
|
Unavailable |
|||
|
#47
PIN. COTTER
91490-25020-00
|
$3.12 | ||
|
Unavailable |
|||
|
#48
WASHER, PLATE
90201-210U0-00
|
$9.99 | ||
|
Unavailable |
|||
|
#49
BOLT, WASHER BASED
90105-082A5-00
|
$3.43 | ||
|
Unavailable |
|||
