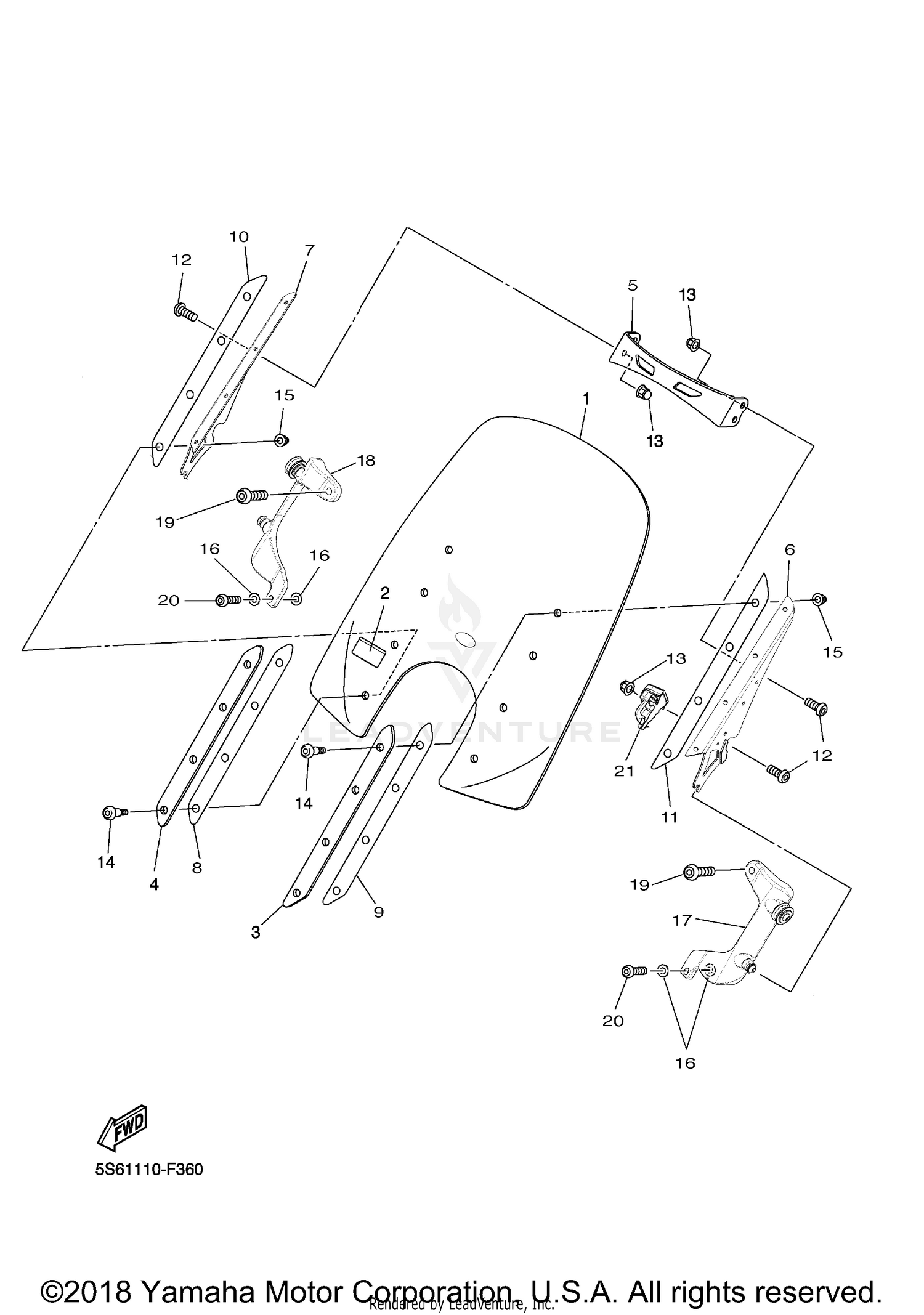

Cowling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSCREEN
3D8-F837U-V0-00
|
$163.99 | ||
|
Unavailable |
|||
|
#2
LABEL, NOTICE WINDSHIELD
4B5-2815K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE 1
5S7-F8396-V0-00
|
|||
|
Unavailable |
|||
|
#4
PLATE 2
5S7-F8397-V0-00
|
$29.99 | ||
|
Unavailable |
|||
|
#5
PLATE, FRONT
5S7-F8361-V0-00
|
|||
|
Unavailable |
|||
|
#6
BRACKET 1
5S7-F836A-T1-00
|
|||
|
Unavailable |
|||
|
#7
BRACKET 2
5S7-F836E-T1-00
|
|||
|
Unavailable |
|||
|
#8
DAMPER 6
5S7-F837K-V0-00
|
|||
|
Unavailable |
|||
|
#9
DAMPER 5
5S7-F837J-V0-00
|
|||
|
Unavailable |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-06820-00
|
|||
|
Unavailable |
|||
|
#11
DAMPER 2
5S7-F8416-V0-00
|
|||
|
Unavailable |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-06820-00
|
|||
|
Unavailable |
|||
|
#13
NUT, CROWN
95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
4NL-F8355-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CROWN
95380-06800-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
WASHER
90201-09802-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE STAY SUB-COMP 1
3D8-F830E-V0-00
|
|||
|
Unavailable |
|||
|
#18
GUIDE STAY SUB-COMP 2
3D8-F830F-V0-00
|
|||
|
Unavailable |
|||
|
#19
BOLT, HEX. SOCKET BUTTON
90111-08839-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. SOCKET BUTTON
90111-10805-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCK ASSY. 2
2C5-28490-00-00
Superseded by 2C5-28409-01-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
