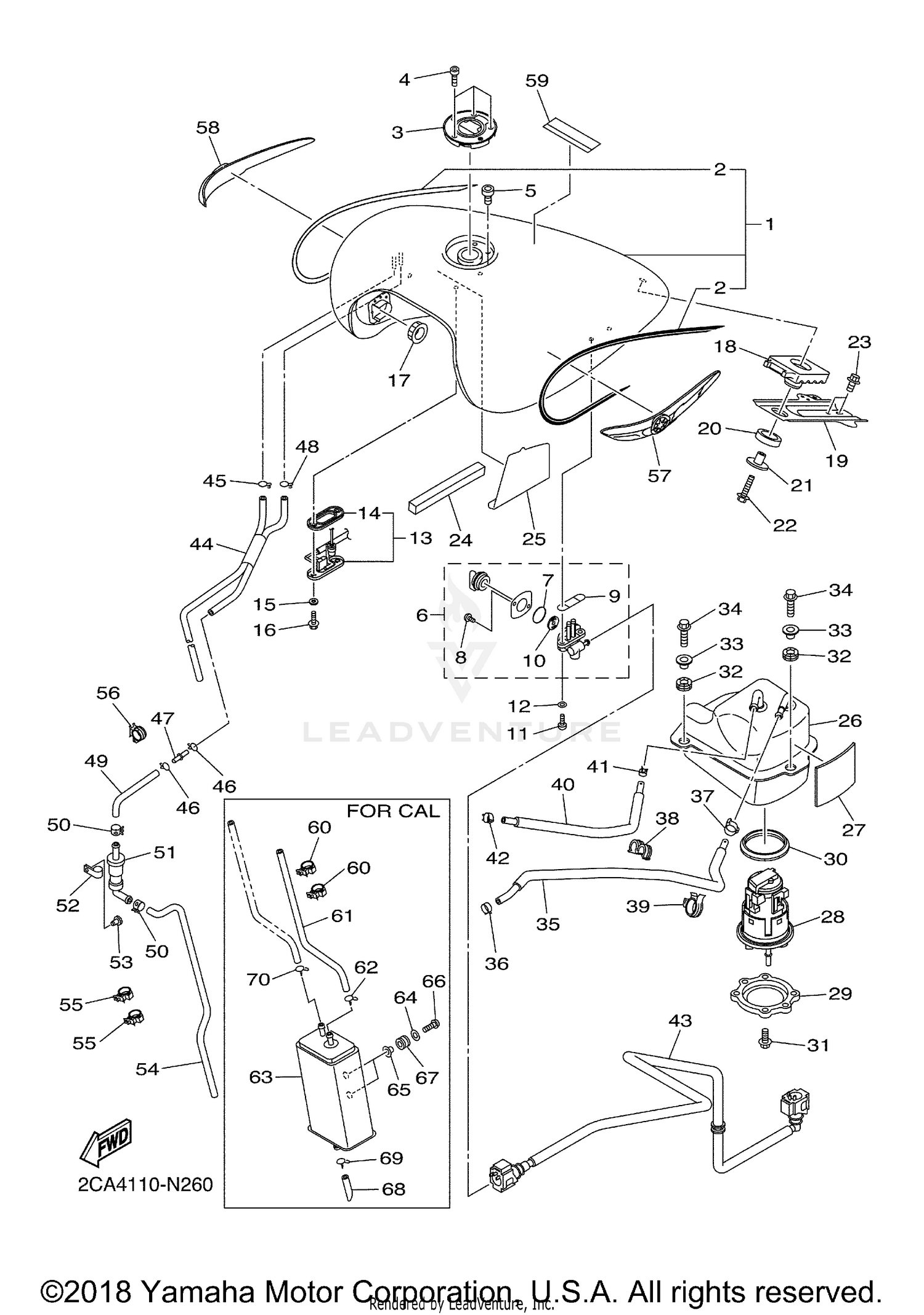

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3D8-Y2410-00-W9
|
$967.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC SET
5S6-24240-60-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY
3D8-24602-10-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUEL COCK ASSY 1
4JT-24500-20-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, COCK
3AJ-24534-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
4X8-24512-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE PACKING
3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-06108-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENDER UNIT ASSY, FU
3D8-85752-10-00
Superseded by 3D8-85752-11-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, SENDER UNIT
3D8-85753-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 1
2YK-24181-10-00
Superseded by 4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 2
1D7-24182-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, TANK FITTING
3D8-2413Y-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, LOCATING 3
4TR-24183-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06177-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95812-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER 1
3XV-28217-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PROTECTOR, 2
3D8-2476V-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PUMP CASE COMP.
3D8-244A0-00-00
|
$333.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, PLATE 2
3D8-2414J-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUEL PUMP COMP
3D8-13907-01-00
Superseded by 3D8-13907-03-00
|
$591.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, FUEL PUMP
3D8-24491-10-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
19B-24486-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER, LOCATING 5
3D8-24185-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-062U9-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE, FUEL 1
3D8-24311-11-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-12004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-130A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-19001-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-20191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE 2
3D8-24312-11-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-160A2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
5PX-2411M-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE, FUEL 1
3D8-13971-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE ASSY
3D8-2318J-01-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#47
JOINT
4XY-14568-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#49
PIPE 13
3D8-24324-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLIP
90467-09001-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#51
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLAMP
90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#53
RIVET
90269-05005-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#54
HOSE
90445-10040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLAMP
90464-20191-00
|
$9.49 | ||
|
Unavailable |
|||
|
#56
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
EMBLEM
3D8-2416B-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
EMBLEM
3D8-2417B-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
LABEL, CAUTION
1TP-2118K-A1-00
Superseded by 1TP-2118K-A2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
CLAMP
90464-25217-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#61
PIPE 1
3D8-2486A-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#63
CANISTER ASSY
5PX-24170-00-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
WASHER, PLATE
90201-06023-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
BOLT
90111-06067-00
Superseded by 90111-06046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#67
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
PIPE 14
3D8-24325-00-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#69
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
