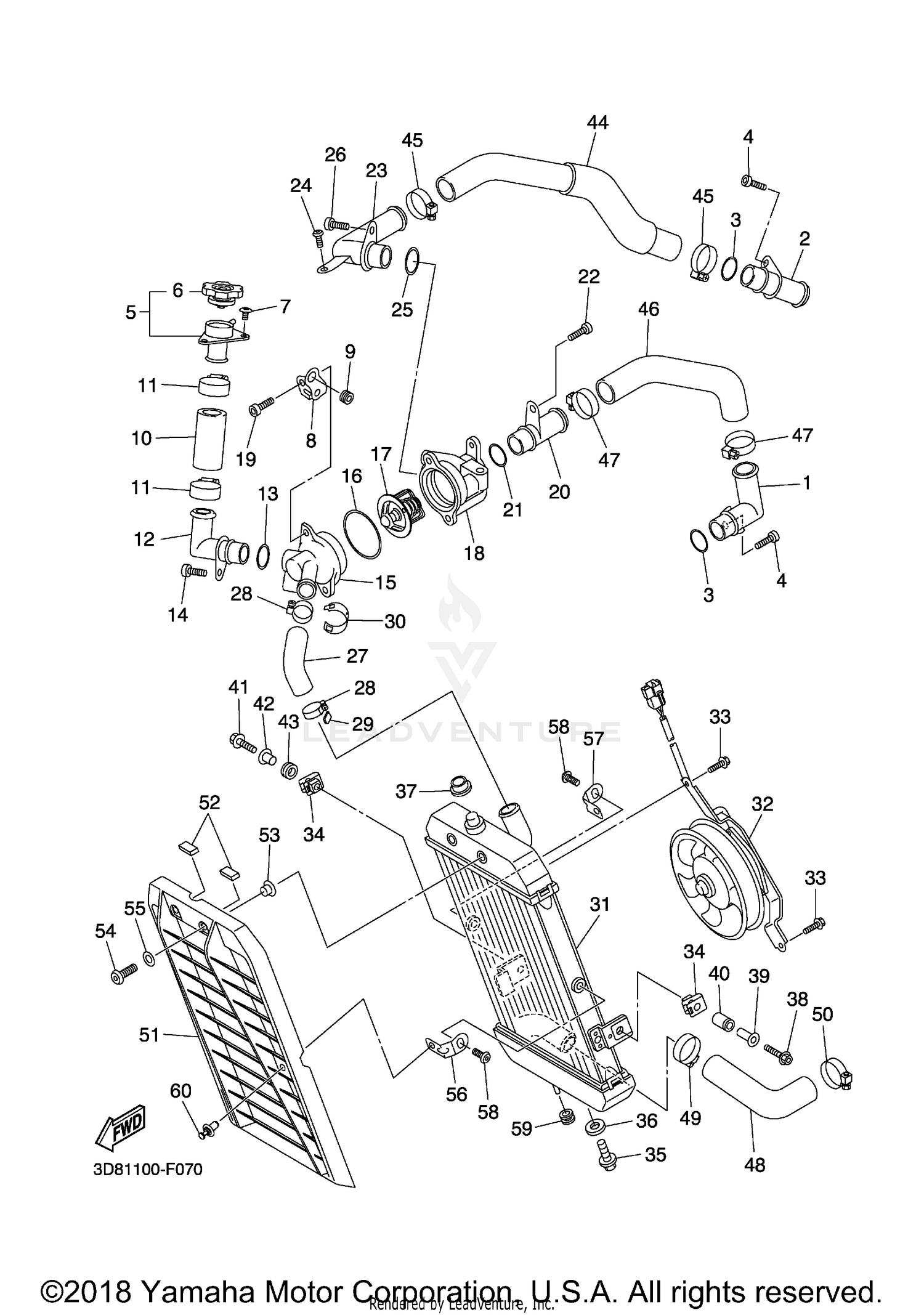

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 1
3D8-12481-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE 2
3D8-12482-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-18417-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONDUCTION ASSY
4NK-12590-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, RADIATOR
3XP-12462-00-00
Superseded by 1B3-12462-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. SOCKET BUTTON
90111-06083-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET 1
3D8-1244E-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-10517-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE 6
3D8-12589-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE 4
3D8-12484-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-18417-00
|
$6.49 | ||
|
Unavailable |
|||
|
#14
BOLT
90110-06187-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, THERMOSTAT
3D8-12413-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-49046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
THERMOSTAT ASSY
1AE-12410-00-00
Superseded by 1AE-12410-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#18
HOUSING, THERMOSTAT
3D8-12417-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE 5
3D8-12485-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-18417-00
|
$6.49 | ||
|
Unavailable |
|||
|
#22
BOLT
90110-06187-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
PIPE 6
3D8-12476-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, BUTTON HEAD
92012-06010-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-18417-00
|
$6.49 | ||
|
Unavailable |
|||
|
#26
BOLT
90110-06187-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
HOSE 4
3D8-12579-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP
4NX-25335-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER 2
5GV-1246E-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
RADIATOR COMP
3D8-12461-00-00
Superseded by 3D8-12461-10-00
|
$591.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BLOWER ASSY
3D8-12405-00-00
Superseded by 3D8-12405-10-00
|
$513.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, BLOWER HOLDING
2D1-12675-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE
3D8-12535-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLUG, DRAIN COCK
1AA-12561-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
GASKET
1AA-12435-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GROMMET
90480-20003-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, HEXAGON SOCKET HEAD
90110-06261-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-0614X-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
DAMPER, RADIATOR
4XY-12465-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
90110-06263-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-065G0-00
Superseded by 90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GROMMET
90480-19283-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE 1
3D8-12576-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$13.99 | ||
|
Unavailable |
|||
|
#46
HOSE 3
3D8-12578-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$13.99 | ||
|
Unavailable |
|||
|
#48
HOSE 5
3D8-12588-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Unavailable |
|||
|
#50
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
COVER, RADIATOR
3D8-12467-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
DAMPER 1
3D8-21541-00-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#53
COLLAR
90387-08076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, HEXAGON SOCKET BUTTON
90111-06041-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
WASHER, PLATE
90201-06096-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#56
STAY 1
3D8-2116A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
COVER 2
3D8-2116E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT, HEX. SOCKET BUTTON
90111-06016-00
Superseded by 90111-06031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
GROMMET
90480-08003-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#60
RIVET
90269-07077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
