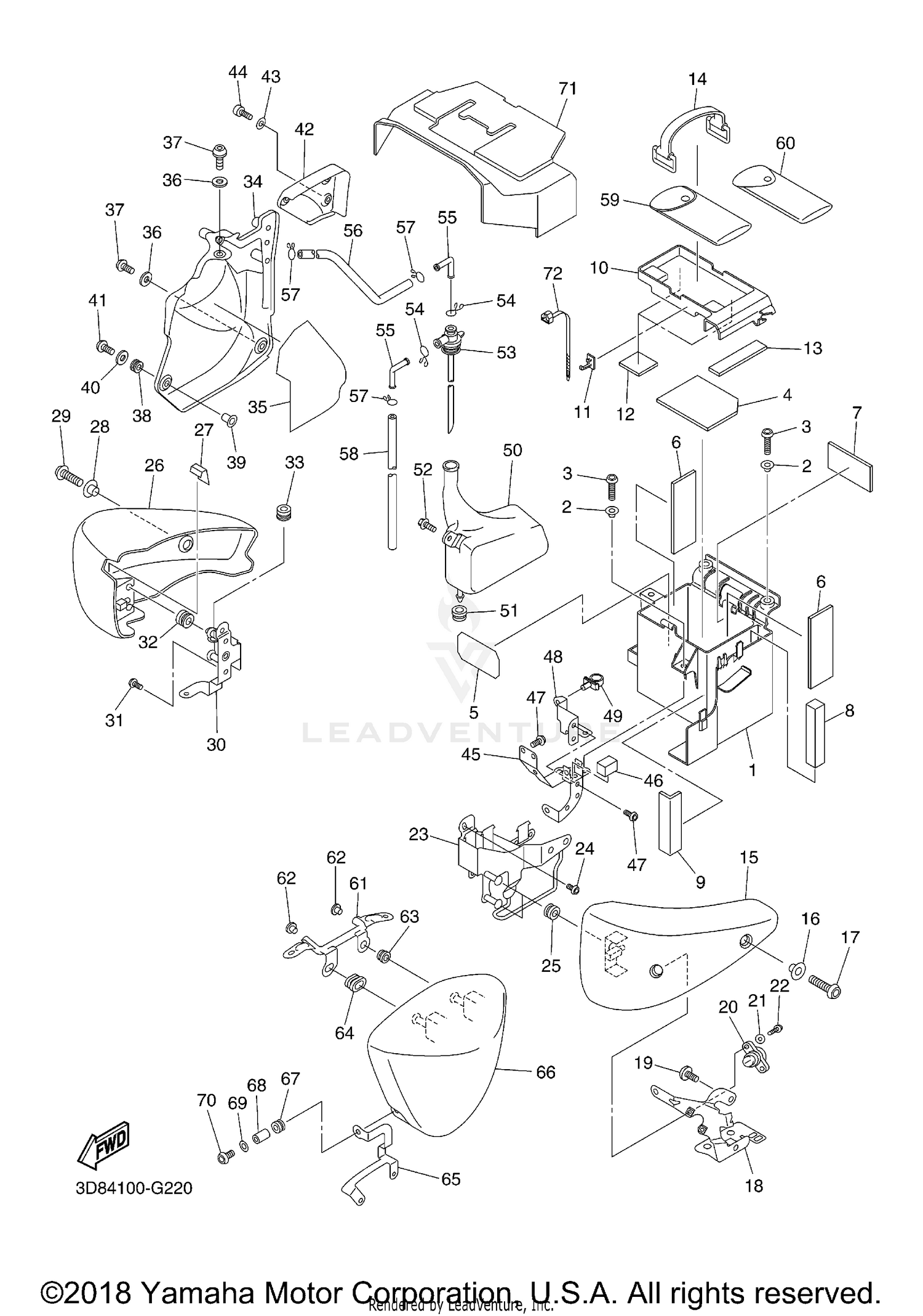

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOX, BATTERY
3D8-2177G-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06109-00
Superseded by 90387-06267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BUTTON HEAD
92012-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, BATTERY
51Y-82122-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR
5PX-21652-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 1
5PX-21778-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
26H-21746-00-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, LOCATING 2
3D8-21779-00-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 3
3D8-2177M-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOX, TOOL
3D8-28173-10-00
|
$8.99 | ||
|
Unavailable |
|||
|
#11
CLAMP
90464-11013-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 5
2GH-24185-00-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER 1
1AE-2834E-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, BATTERY
3L8-82131-01-00
Superseded by 22F-82131-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, SIDE 1
3D8-21711-00-P4
|
$73.99 | ||
|
Unavailable |
|||
|
#15
COVER, SIDE 1
3D8-21711-00-P5
|
$69.99 | ||
|
Unavailable |
|||
|
#15
COVER, SIDE 1
3D8-21711-00-P6
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-06173-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
90149-06023-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET 1
3D8-2175T-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT LOCK ASSY
5PX-W2470-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-06034-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-06639-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET 3
3D8-2172M-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#24
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET
90480-12550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, SIDE 2
3D8-21721-00-P4
|
$89.99 | ||
|
Unavailable |
|||
|
#26
COVER, SIDE 2
3D8-21721-00-P5
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, SIDE 2
3D8-21721-00-P6
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PROTECTOR
3MA-27491-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-06173-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET 4
3D8-2172N-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Unavailable |
|||
|
#32
GROMMET
90480-12550-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
GROMMET
90480-18418-00
Superseded by 90480-18495-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, SIDE 4
3D8-21741-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#35
DAMPER
3D8-21746-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLAIN
92902-06200-00
Superseded by 92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.05 | ||
|
Unavailable |
|||
|
#38
GROMMET
90480-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPACER
90560-06201-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-06M01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET BUTTON
90111-06043-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLATE
3D8-2176E-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, BUTTON HEAD
92014-05012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET 1
3D8-2172K-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
DAMPER, LOCATING 1
3D8-21778-00-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Unavailable |
|||
|
#48
BRACKET 2
3D8-2172L-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90464-12001-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#50
TANK, RECOVERY
3D8-21871-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
GROMMET
90480-13567-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, WITH WASHER
90119-06137-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
CAP
3D8-21875-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLIP
90467-11019-00
Superseded by 90467-11M08-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#55
ELBOW
26H-21828-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PIPE, BREATHER
3D8-21826-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLIP, SCISSOR
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
PIPE 5
90445-09097-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
TOOL KIT
3D8-28100-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
TOOL KIT 2
3D8-28110-00-00
Superseded by 3D8-28110-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#61
BRACKET
3D8-14849-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
PLUG
90338-10012-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#63
GROMMET
90480-13567-00
|
$4.70 | ||
|
Unavailable |
|||
|
#64
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#65
BRACKET
3D8-15199-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
COVER, SIDE 3
3D8-21731-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
GROMMET
90480-13018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
COLLAR
90387-06043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
WASHER, PLATE
90201-06088-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.05 | ||
|
Unavailable |
|||
|
#71
COVER
3D8-24796-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#72
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
