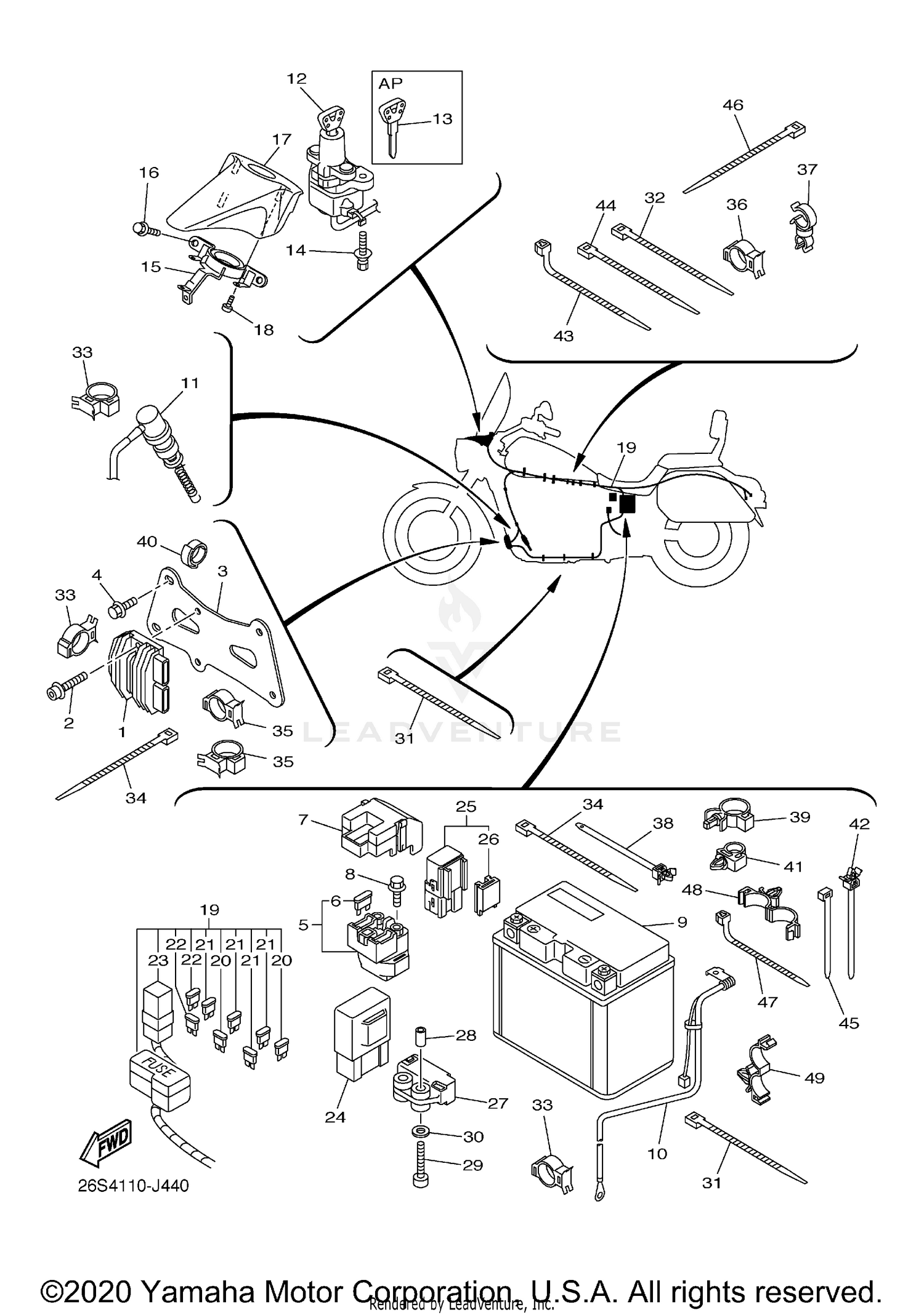

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER & REGULATOR ASSY
27D-81960-00-00
|
$303.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET HEAD
90110-06263-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, REGULATOR
5S7-2128A-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STARTER RELAY ASSY (RC19-089A)
5S7-81940-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE (10A-BL)
42X-82151-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, LEAD WIRE
5SL-82119-10-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95022-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
YTZ14S YUASA BATTER
2D1-82100-00-00
Superseded by YTZ-14S00-00-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE, MINUS LEAD
5S7-82116-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOP SWITCH ASSY
5S7-82530-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
MAIN SWITCH STEERING LOCK
3D8-82501-01-00
Superseded by 3D8-82501-02-00
|
$156.99 | ||
|
Unavailable |
|||
|
#13
BLANK KEY
4BH-82511-09-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-08195-00
Superseded by 90109-08196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET 1
5S7-2334G-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06063-00
Superseded by 90105-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, MAIN SWITCH
5S7-82568-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING
97702-40016-00
Superseded by 97707-40016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WIRE HARNESS ASSY
5S7-82590-20-00
|
$503.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE (20A-BL)
5JJ-82151-20-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SLOW BLOW FUSE
5PS-82151-00-00
Superseded by JR9-82151-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
RELAY ASSY
5VK-81950-30-00
Superseded by 5VK-81950-33-00
|
$53.99 | ||
|
Unavailable |
|||
|
#25
RELAY ASSY (1TP-00)
1TP-81950-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, RELAY
5EA-81952-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SENSOR, LEAN ANGLE
5VU-82576-01-00
Superseded by 5VU-82576-03-00
|
$93.99 | ||
|
Unavailable |
|||
|
#28
HOSE (L200)
90445-057G5-00
Superseded by 90445-05N13-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90110-04003-00
Superseded by 91312-04025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-04027-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND
90464-32060-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#33
CLAMP
90464-10190-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
3MA-82591-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-20191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
90464-25217-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90464-20004-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-16012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-16003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-10008-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
90464-12089-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP, HOSE
90460-15126-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90465-10098-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90465-13M39-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#48
CLAMP
90464-18007-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90464-16012-00
|
$6.49 | ||
|
Unavailable |
|||
