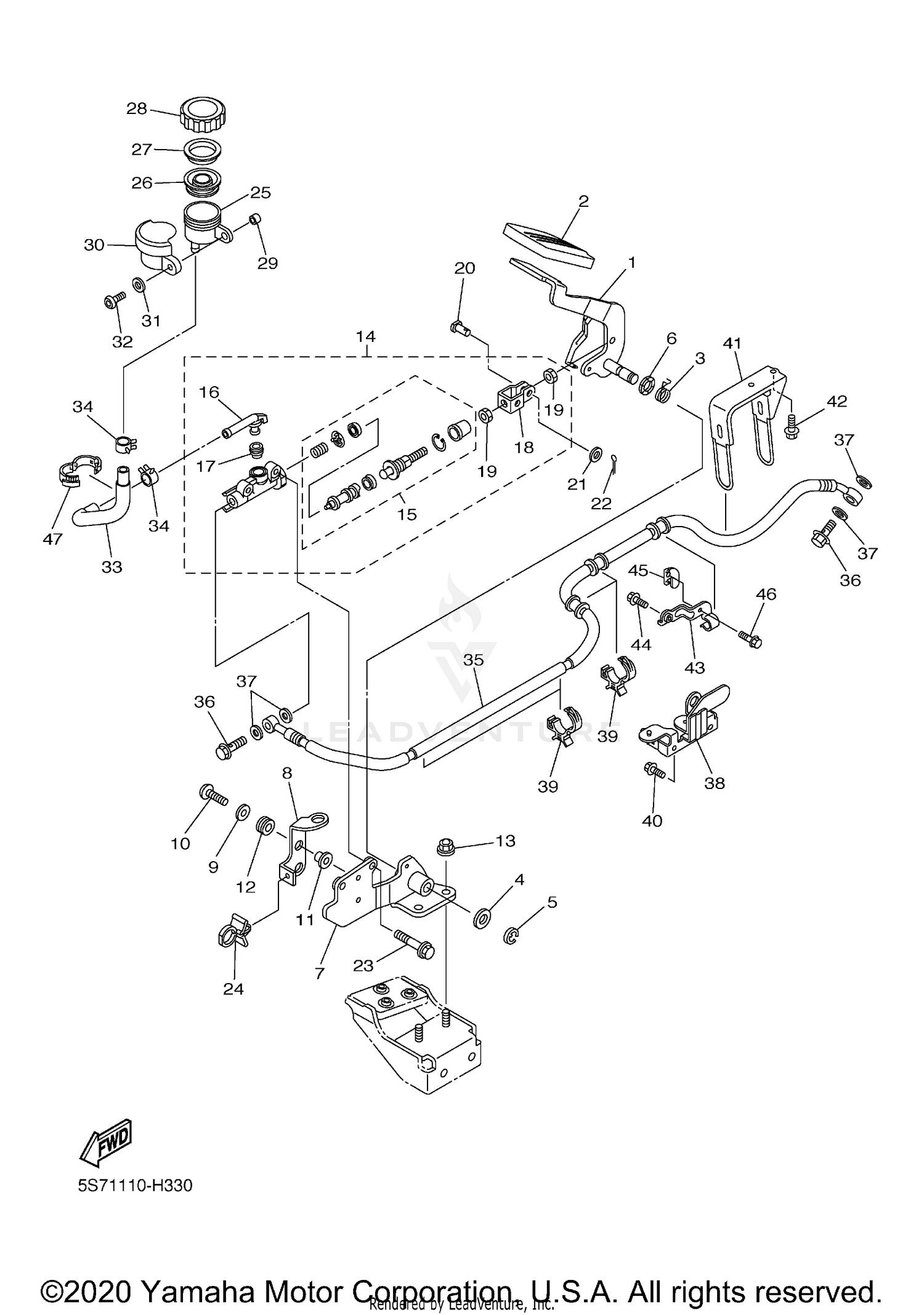

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5S7-27211-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP
1D7-27285-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, RETURN
5S7-27216-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-12688-00
Superseded by 90201-124E4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99009-12400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, WAVE
90206-12074-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET 1
5S7-27432-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, STOP SWITCH
5S7-21441-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06023-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BUTTON HEAD
90111-06019-00
Superseded by 92017-06020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-06237-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CROWN
90176-08009-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
REAR MASTER CYLINDER ASSY.
4BP-2583V-01-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CYLINDER KIT, MASTER
4BP-W0042-50-00
Superseded by 3TU-W0042-51-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT
4BP-2582A-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
4BP-2585F-00-00
Superseded by 4BP-2585F-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT
4BP-27222-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90170-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, CLEVIS
90240-08124-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-12001-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
TANK, RESERVOIR
31A-25894-10-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DIAPHRAGM, RESERVOIR
360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06072-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, RESERVOIR TANK
4NK-25888-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-064J1-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, BUTTON HEAD
92014-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE, RESERVOIR
5S7-25895-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE, BRAKE 4
5S7-2581J-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, UNION
90401-10020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOLDER, FUEL PIPE
5S7-21374-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOLDER, BRAKE HOSE
5S7-2587A-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#43
HOLDER, BRAKE HOSE 5
5S7-2588F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
90105-06126-00
Superseded by 95022-06010-00
|
$5.49 | ||
|
Unavailable |
|||
|
#45
HOLDER, BRAKE HOSE
3D8-25887-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Unavailable |
|||
|
#47
CLAMP
90464-16001-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
