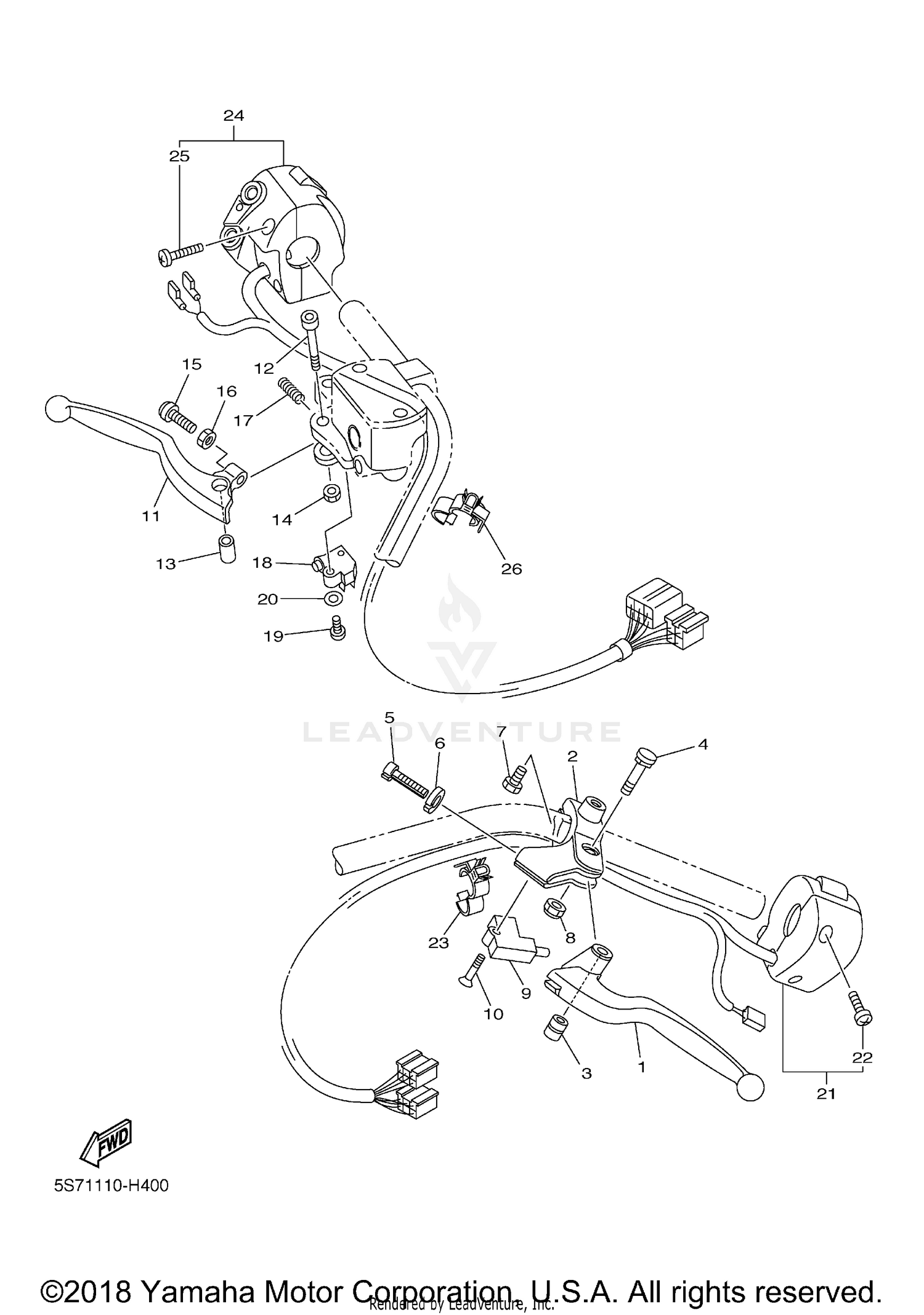

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER 1
5BN-83912-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, LEVER 1
5BN-82911-20-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, LEVER 1
4TR-83913-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, LEVER
4TR-83945-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90123-08083-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-08316-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH
3YX-82917-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, FLAT HEAD
98707-03020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER 2
5S7-83922-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-06265-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, LEVER 1
36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
SCREW, BINDING
90154-06028-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-10312-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT STOP SWITCH ASSY
36Y-83980-01-00
Superseded by J45-82503-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98502-04016-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH, HANDLE 3
5S7-83973-00-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98507-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SWITCH, HANDLE 4
5S7-83972-00-00
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98507-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
CLAMP
90464-15192-00
|
$7.49 | ||
|
Unavailable |
|||
