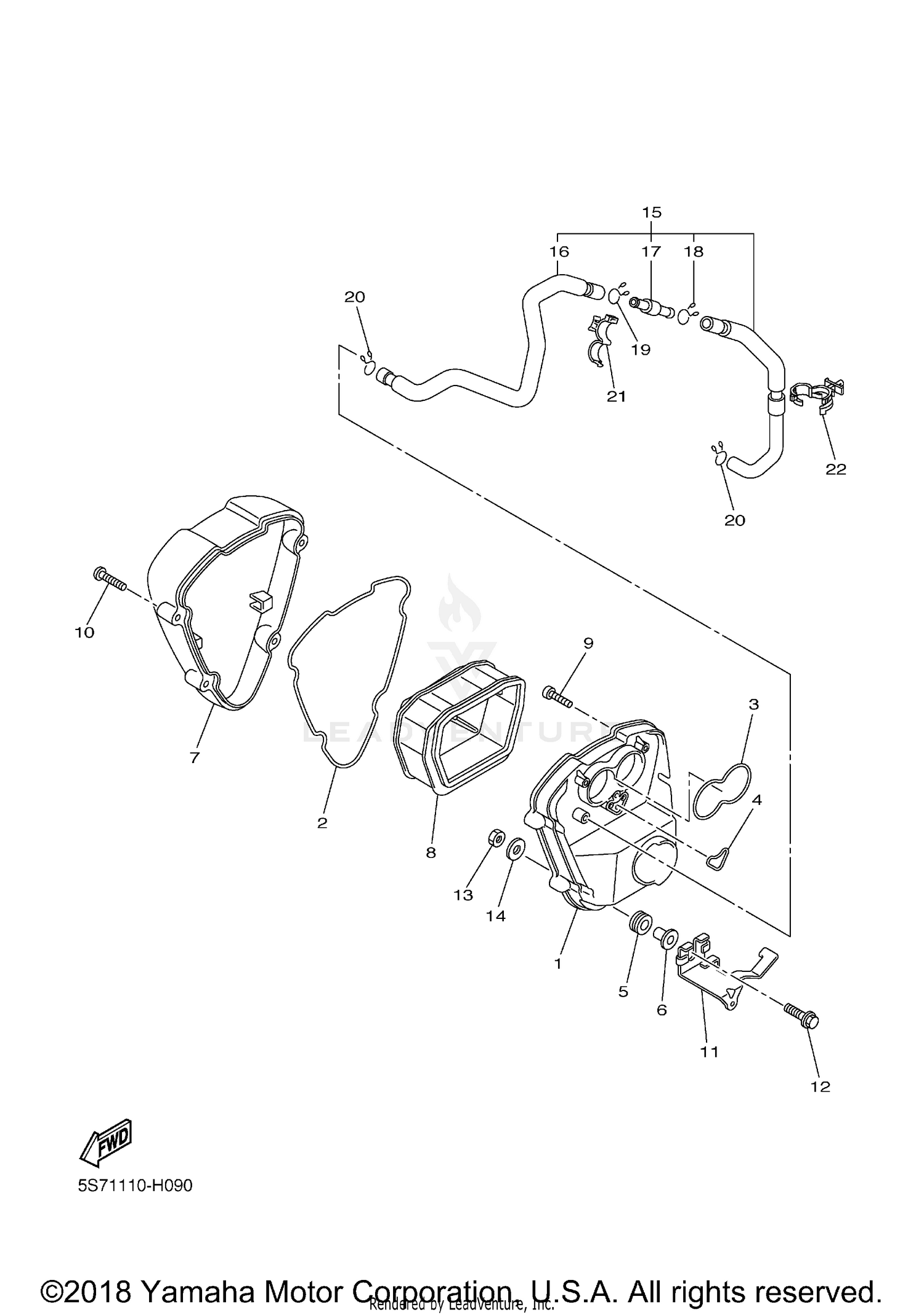

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, AIR CLEANER 1
5S7-14411-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL
4GA-14452-00-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL
3D8-14457-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL
3D8-14462-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-11006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-087L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE, AIR CLEANER 2
3D8-14421-01-00
|
$188.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ELEMENT, AIR CLEANER
3D8-14451-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91312-05025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-05024-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY 1
3D8-14498-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97012-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06088-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, BREATHER 1
5S7-11166-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE 3
5S7-1113J-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, HOSE 4
6S5-12594-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-170A2-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-170A2-00
|
$1.45 | ||
|
Unavailable |
|||
|
#20
CLIP
90467-16195-00
Superseded by 90467-15M14-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-20191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-18011-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
