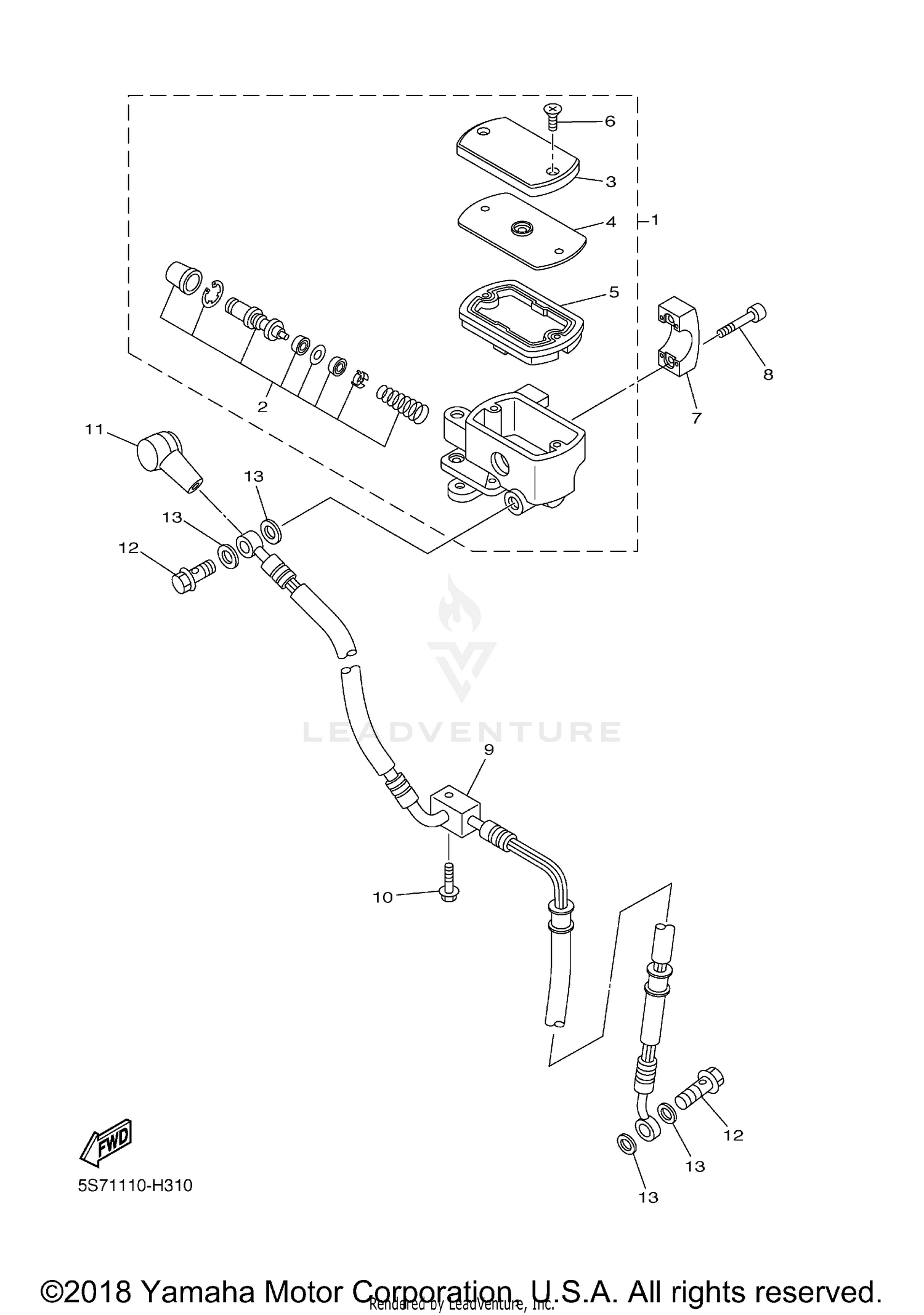

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
5S7-W2587-01-00
Superseded by 5S7-25870-01-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
1JL-W0041-00-00
Superseded by 1JL-25807-01-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RESERVOIR
3D8-25852-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, DIAPHRAGM
3D8-25855-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
3D8-25854-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
3D8-2589H-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
4TR-25867-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, BRAKE 1
5S7-25872-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-06096-00
Superseded by 90105-06791-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT, MASTER CYLINDER
4L0-25862-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, UNION
90401-10020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
