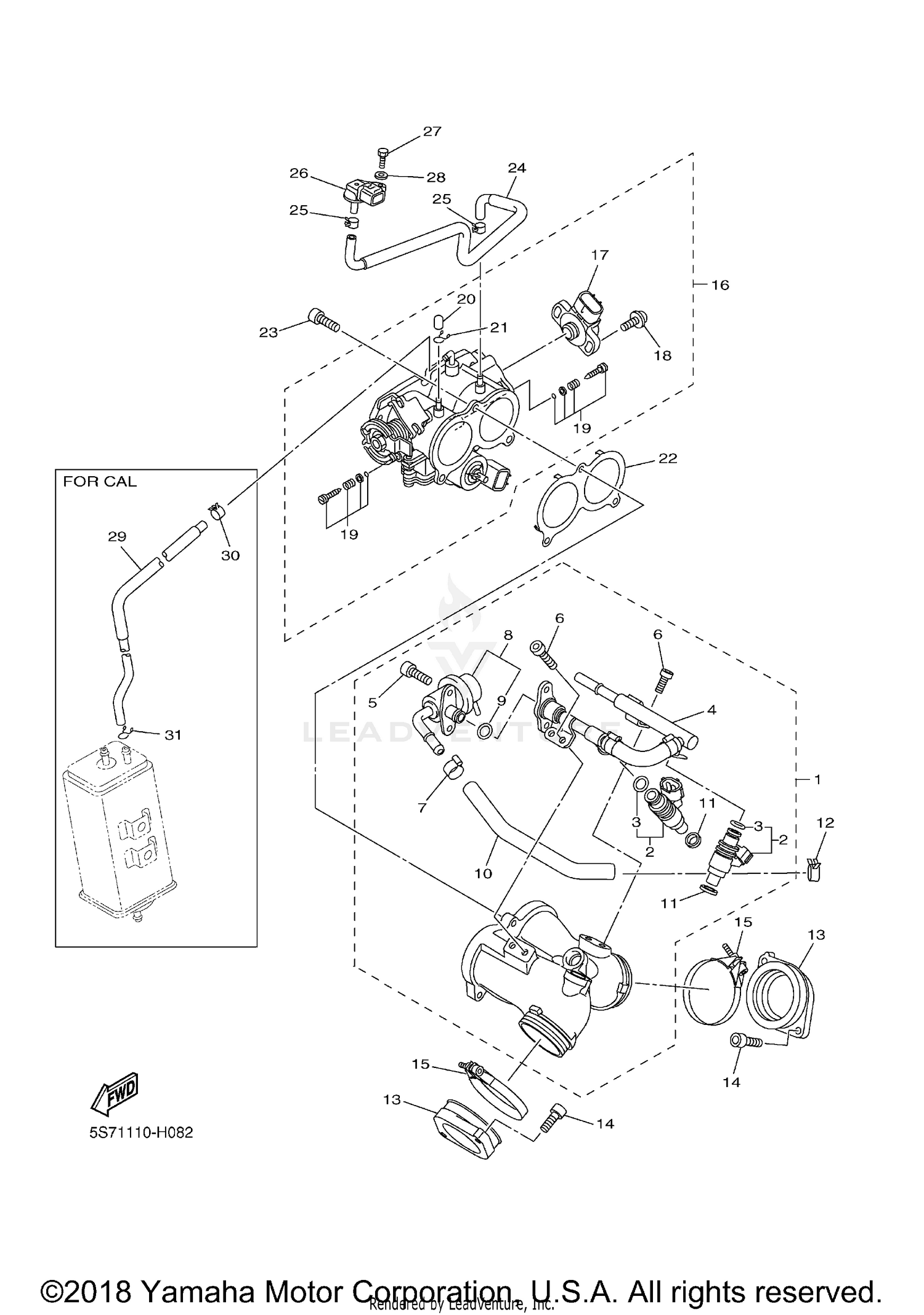

Intake 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR JOINT ASSY
5S7-13590-20-00
|
$707.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INJECTOR
5S7-13761-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
5PS-14147-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE INLET ASSEMBLY
5S7-13930-00-00
|
$326.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90110-06168-00
Superseded by 91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
68V-24387-00-00
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
REGULATOR, PRESSURE
5S7-13906-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
5S7-13769-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE 2
5S7-24312-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, INJECTOR
8FP-13556-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-12003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT, CARBURETOR 1
5S7-13586-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE CLAMP ASSY
90450-54006-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
THROTTLE BODY ASSY
5S7-13750-10-00
|
$453.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
THROTTLE BODY ASSY
5S7-13750-00-00
Superseded by 5S7-13750-01-00
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
. .THROTTLE SENSOR ASSY
8GL-85885-00-00
Superseded by 8GL-85885-01-00
|
$86.99 | ||
|
Unavailable |
|||
|
#18
SCREW
4KM-24453-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
AIR SCREW SET
3D8-14104-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP
895-14169-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, PIPE
8A7-14139-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL
3D8-14467-00-00
Superseded by BL3-14467-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Unavailable |
|||
|
#24
HOSE, AIR
5S7-13895-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SENSOR, PRESSURE
5S7-82380-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE
5S7-14148-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-09037-00
Superseded by 90467-09120-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#254
CLIP
90467-07093-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
