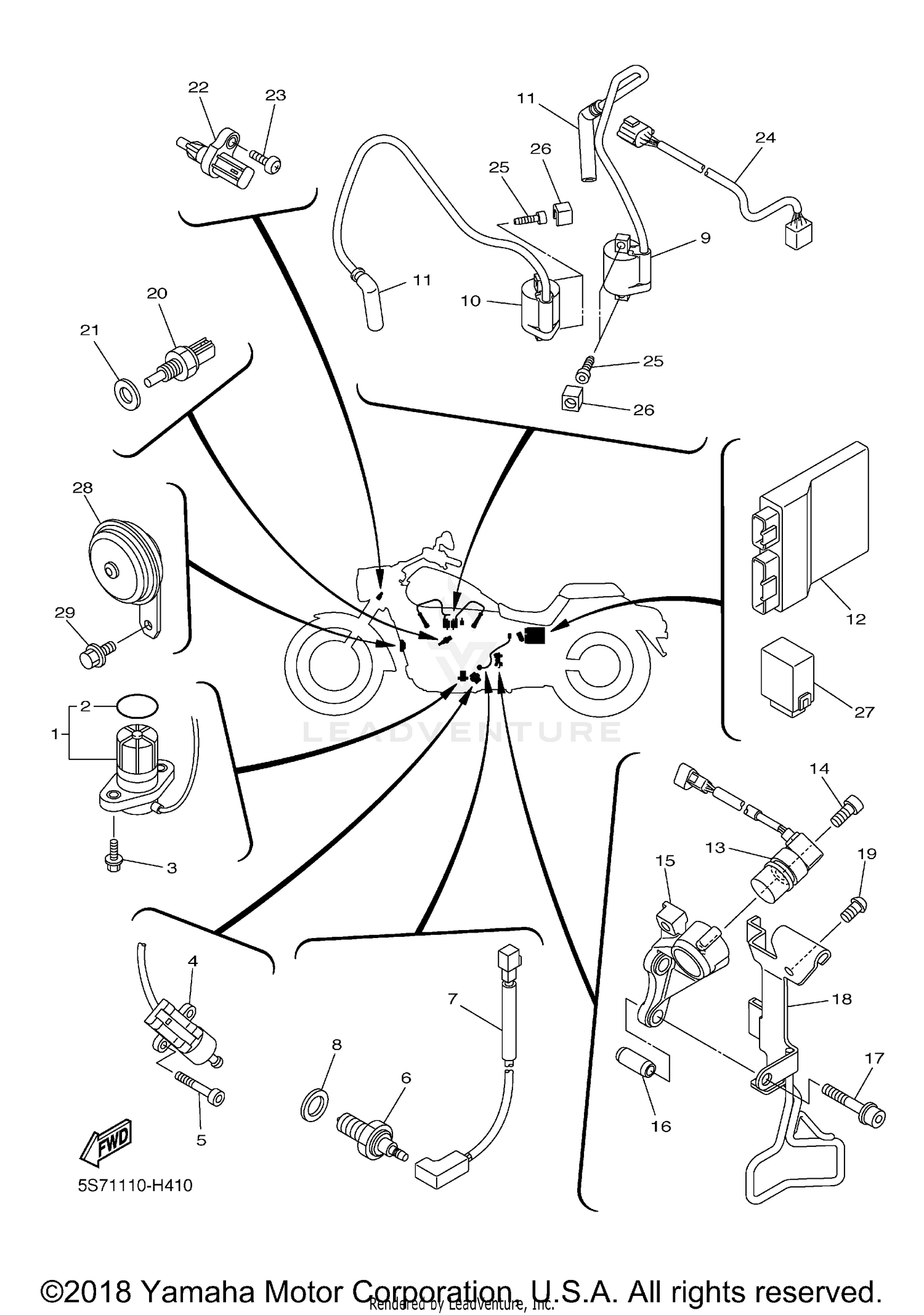

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL LEVEL GAUGE ASSY
5S7-85720-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
5VY-8A8E0-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH, SIDE STAND
3D8-82566-70-00
Superseded by 3D8-82566-71-00
|
$75.99 | ||
|
Unavailable |
|||
|
#5
BOLT, HEXAGON SOCKET
90110-05217-00
Superseded by 90110-05025-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE, SUB LEAD
5S7-82509-10-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITION COIL ASSY
5S7-82310-00-00
Superseded by 5S7-82310-02-00
|
$60.99 | ||
|
Unavailable |
|||
|
#10
IGNITION COIL ASSY
1D7-82310-10-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG CAP ASSY
5S7-82370-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ENGINE CONTROL UNIT ASSY
5S7-8591A-00-00
|
$780.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR, SPEED
5S7-83755-00-00
Superseded by 5S7-83755-01-00
|
$145.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90110-06168-00
Superseded by 91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET
5S7-81948-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06300-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE
5S7-81845-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06040-00
Superseded by 90149-06041-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10128-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98502-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE, SUB LEAD
5S7-82509-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
91380-06016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP
5S7-21399-00-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
FLASHER RELAY ASSY
5S7-83350-00-00
Superseded by 5S7-83350-01-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HORN
3D8-83371-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, WASHER BASED
90105-082A5-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
