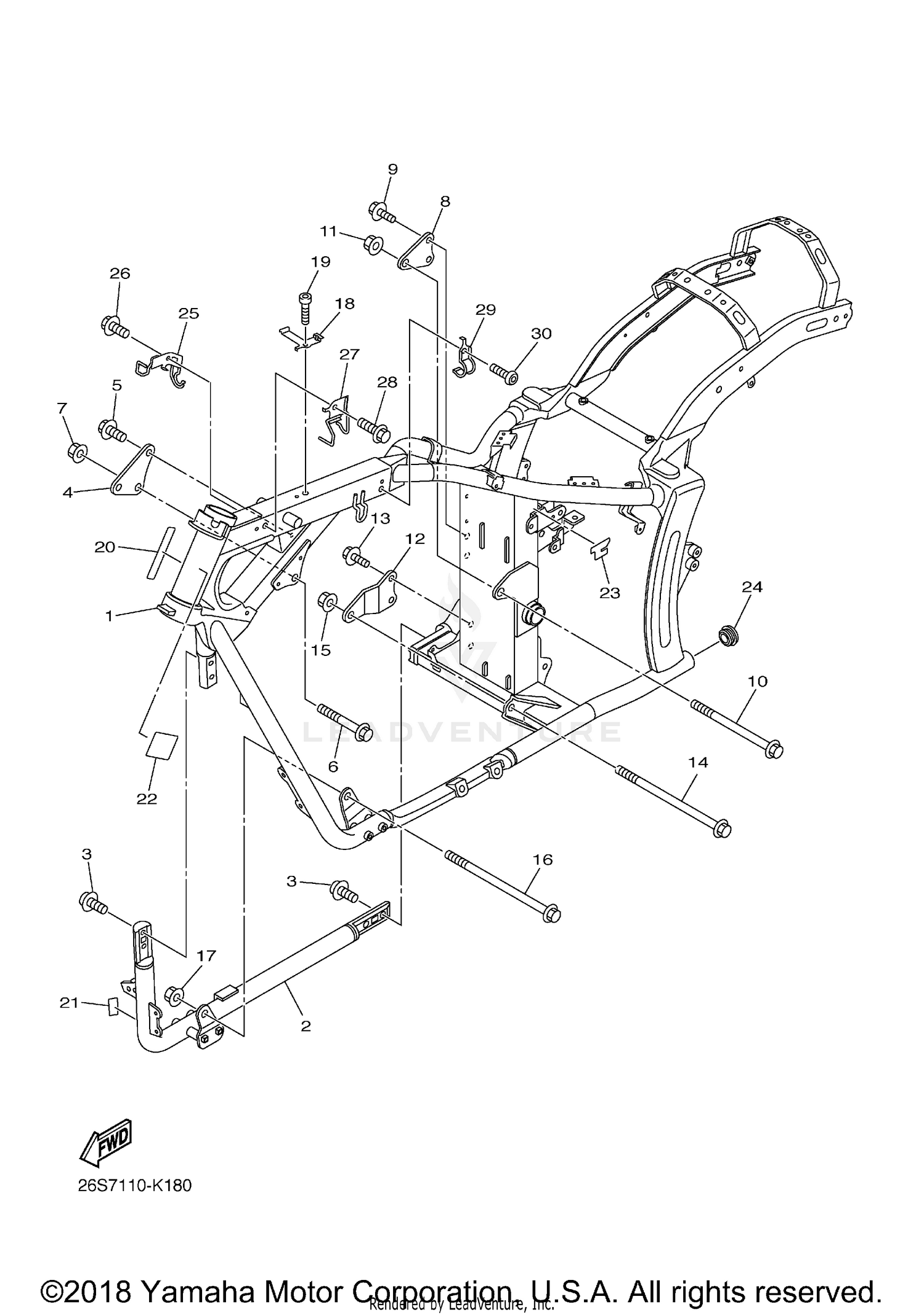

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
5S7-21110-04-00
|
$2,055.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DOWNTUBE COMP.
5S7-21280-01-00
|
$410.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET
90110-10016-00
Superseded by 90110-10017-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, ENGINE 3
5S7-21317-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-10236-00
Superseded by 90105-102A3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-12252-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-12002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, ENGINE 5
5S7-21314-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-10236-00
Superseded by 90105-102A3-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-12043-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-12002-00
|
$11.49 | ||
|
Unavailable |
|||
|
#12
STAY, ENGINE 2
5S7-21316-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-10236-00
Superseded by 90105-102A3-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-12044-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-12002-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
90105-12069-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-12002-00
|
$11.49 | ||
|
Unavailable |
|||
|
#18
BRACKET
5S7-21158-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTOR
3D8-2117G-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL
5PX-21268-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL
1D7-2639G-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL 1
5S7-21732-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG
90338-27007-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUIDE, CABLE
5S7-26279-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER
5S7-26475-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
CLAMP
90462-16005-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, BUTTON HEAD
92012-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
