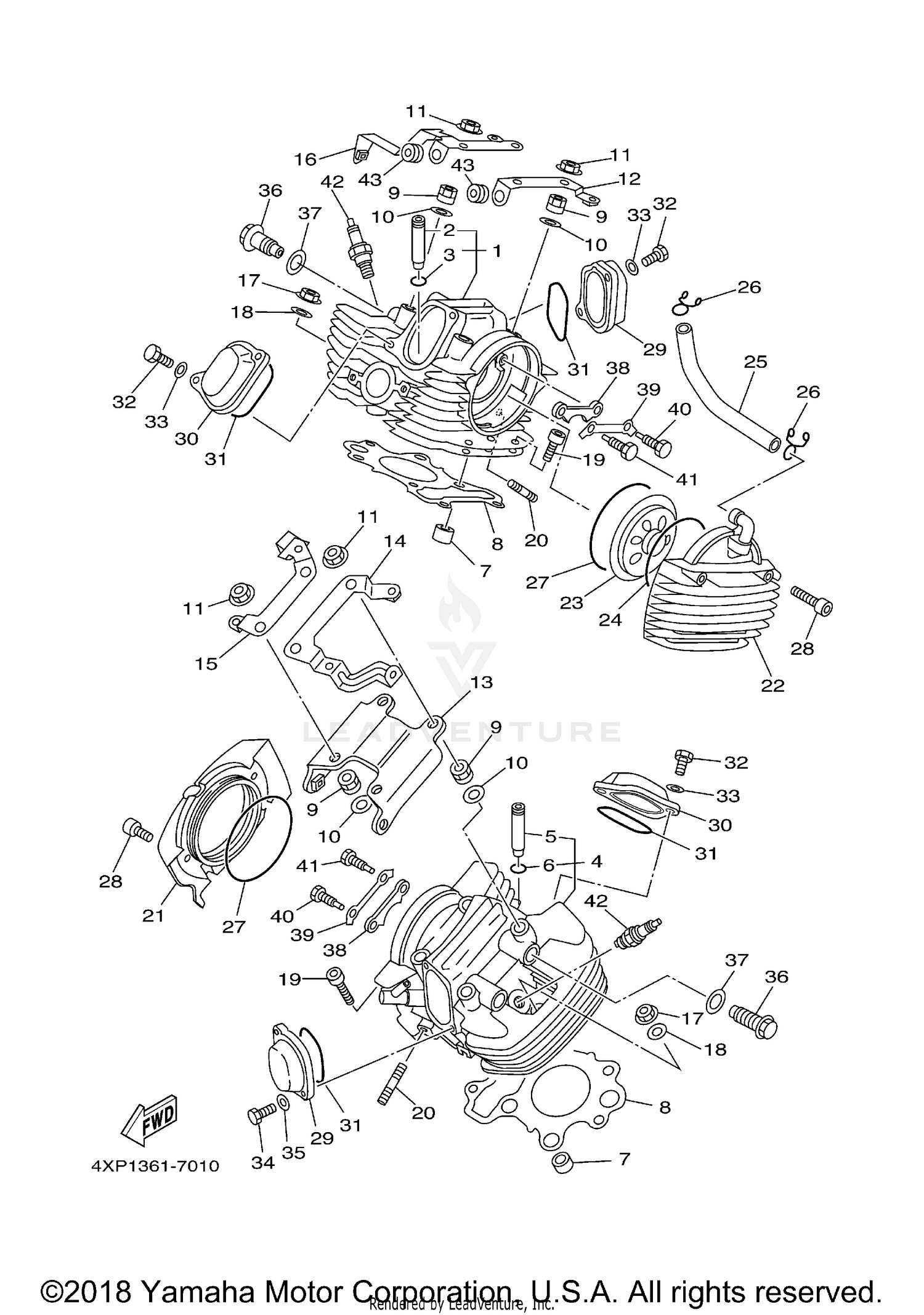

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5BN-11101-10-00
|
$651.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
4H7-11133-10-00
Superseded by 4H7-11133-11-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
CYLINDER HEAD ASSY
4XP-11101-11-00
|
$852.71 | ||
|
Unavailable |
|||
|
#5
GUIDE, VALVE 1
4H7-11133-10-00
Superseded by 4H7-11133-11-00
|
$48.99 | ||
|
Unavailable |
|||
|
#6
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
99530-17016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, CYLINDER HEAD 1
4VR-11181-00-00
Superseded by 4VR-11181-10-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-10395-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE
95707-10500-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, CYLINDER HEAD COVER 2
4TR-11142-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, CYLINDER HEAD COVER
4TR-11152-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE
4TR-1111F-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE 2
4TR-1112F-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET
4TR-1135A-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08366-00
Superseded by 90201-094G1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, STUD
95617-08630-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, CYLINDER HEAD SIDE 3
4TR-11187-11-00
Superseded by 4TR-11187-12-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, CYLINDER HEAD SIDE 2
4TR-11186-11-00
Superseded by 4TR-11186-12-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, BREATHER
22U-11165-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-89568-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, BREATHER 1
4TR-11166-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93211-00612-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
91314-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, CYLINDER HEAD SIDE 2
22U-11186-00-00
Superseded by 22U-11186-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, CYLINDER HEAD SIDE 3
22U-11187-00-00
Superseded by 22U-11187-01-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-62446-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
97027-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEXAGON DEEP R
97024-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
92904-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, UNION
90401-16166-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
90430-17168-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE
22U-1111F-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, LOCK
90215-08229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
90109-08782-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
90109-08781-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
DPR7EA9 NGK SPLUG
NGK-DPR7E-A9-00
Superseded by DPR-7EA90-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#43
GROMMET
90480-13018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
