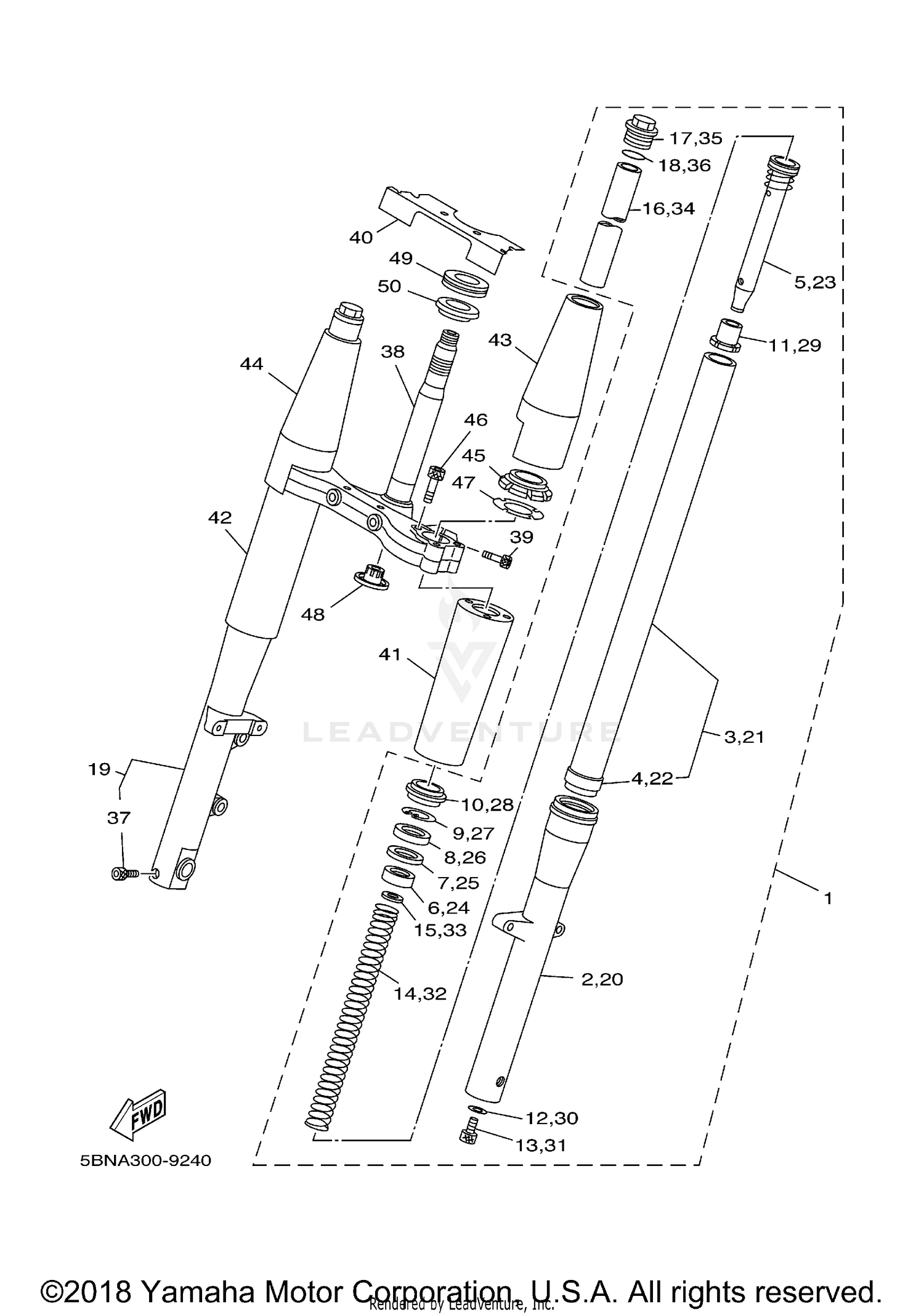

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H
5BN-23102-00-00
Superseded by 5BN-23102-02-00
|
$586.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (LEFT)
5BN-23126-00-00
|
$380.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 1
5BN-23110-00-00
Superseded by 5BN-23110-01-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5BN-23171-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER COMP., FRONT FORK
5BN-23170-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
METAL, SLIDE 1
4FM-23125-40-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
36Y-23146-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
4EB-23145-00-00
Superseded by 4EB-23145-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, OIL SEAL
26H-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, DUST
4EB-23144-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPINDLE, TAPER
4YR-23173-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT FORK
5BN-23141-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING UPPER
4DW-23149-40-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
4TR-23118-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CAP
3EN-23111-50-00
Superseded by 1D0-23111-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
43F-23188-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FRONT FORK ASSY (R.H
5BN-23103-00-00
Superseded by 5BN-23103-02-00
|
$586.99 | ||
|
Unavailable |
|||
|
#20
TUBE, OUTER (RIGHT)
5BN-23136-00-00
|
$388.99 | ||
|
Unavailable |
|||
|
#21
INNER TUBE COMP. 1
5BN-23110-00-00
Superseded by 5BN-23110-01-00
|
$191.99 | ||
|
Unavailable |
|||
|
#22
PISTON, FRONT FORK
5BN-23171-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#23
CYLINDER COMP., FRONT FORK
5BN-23170-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#24
METAL, SLIDE 1
4FM-23125-40-00
|
$31.99 | ||
|
Unavailable |
|||
|
#25
WASHER, OIL SEAL
36Y-23146-10-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
OIL SEAL
4EB-23145-00-00
Superseded by 4EB-23145-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#27
CLIP, OIL SEAL
26H-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
SEAL, DUST
4EB-23144-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#29
SPINDLE, TAPER
4YR-23173-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#30
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#32
SPRING, FRONT FORK
5BN-23141-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#33
WASHER, SPRING UPPER
4DW-23149-40-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
SPACER
4TR-23118-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#35
BOLT, CAP
3EN-23111-50-00
Superseded by 1D0-23111-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#36
O-RING
43F-23188-10-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
UNDER BRACKET COMP.
5BN-23340-00-00
Superseded by 5KS-23340-10-00
|
$592.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEXAGON SOCKET HEAD
91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PROTECTOR
5BN-23472-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#41
COVER, LOWER 1
5BN-23123-00-00
Superseded by 5BN-23123-01-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER, LOWER 2
5BN-23133-00-00
Superseded by 5BN-23133-01-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, UPPER 1
5BN-23121-00-00
Superseded by 5KS-23121-10-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER, UPPER 2
5BN-23131-00-00
Superseded by 5KS-23131-10-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
GASKET
5BN-23163-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, FELT
5BN-23165-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#48
COVER, LOWER 1
4KM-23123-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BEARING
93399-99932-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SEAL, STEERING
3FV-23462-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
FORK SEAL KIT
4EB-W003B-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
