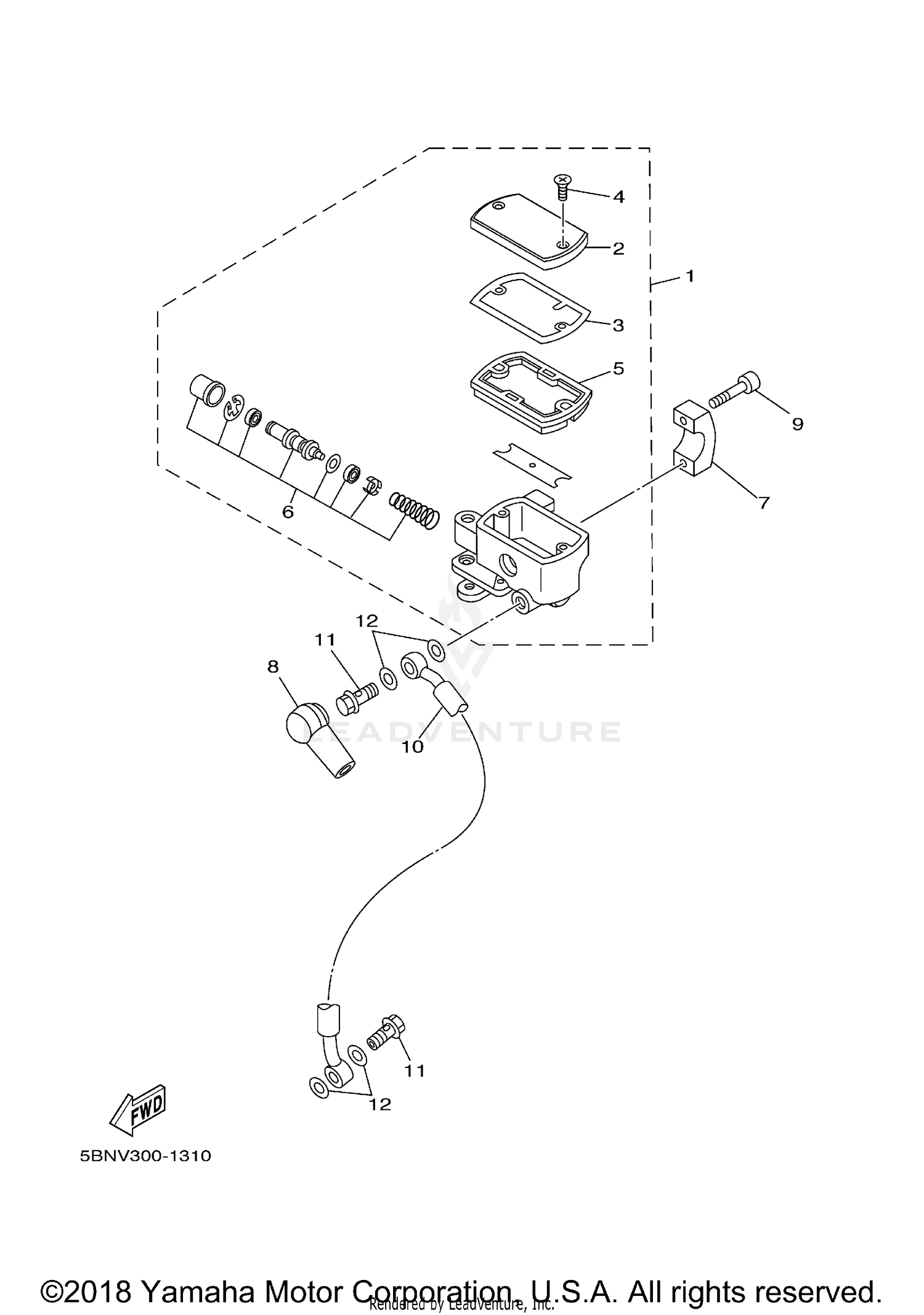

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
4TR-25870-01-00
Superseded by 3D8-25870-11-00
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, RESERVOIR
4TR-25852-01-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, PISTON
4BH-25815-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
4TR-2589H-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
4BH-25854-02-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CYLINDER KIT, MASTER
2KR-W0041-00-00
Superseded by 2KR-25807-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
4TR-25867-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, MASTER CYLINDER
4L0-25862-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
5BN-25872-20-00
Superseded by 5BN-25872-21-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, UNION
90401-10159-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
