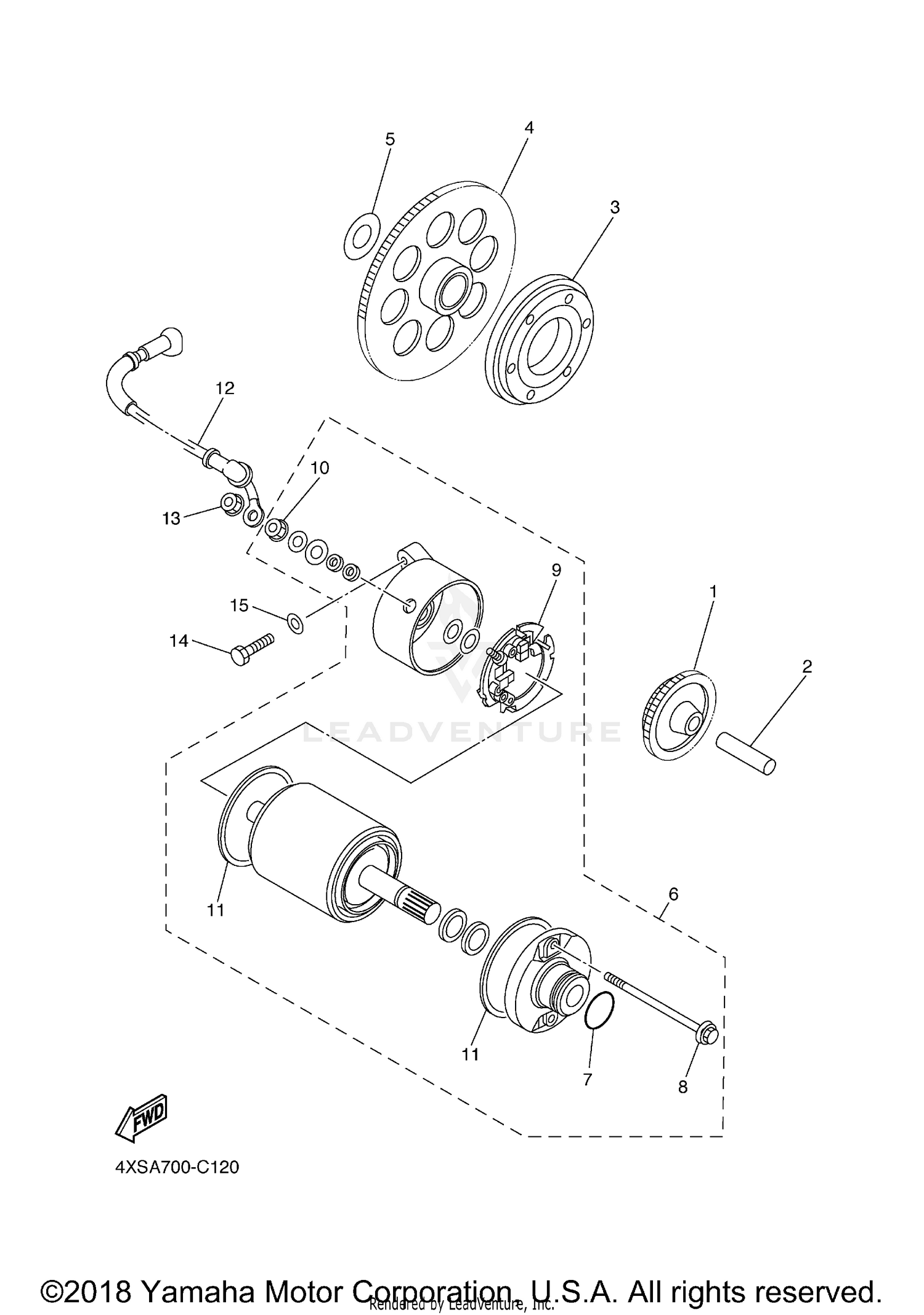

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1 (12T/50T)
22U-15512-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT 1
5H0-15521-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STARTER ONE-WAY ASSY
4TR-15590-00-00
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, IDLER 2 (66T)
4VR-15517-01-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE (0.9T)
90201-25290-00
Superseded by 90201-256K6-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR ASSY
3JB-81890-00-00
|
$564.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
1FK-81847-00-00
Superseded by 93210-24235-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
3HE-81826-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRUSH HOLDER ASSY
3KS-81840-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
4XV-8182A-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
11H-81844-00-00
Superseded by 35C-81844-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CORD, STARTER MOTOR
4VR-81815-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
4XV-8182A-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
BOLT
97070-06025-00
|
$1.75 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN (646)
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
