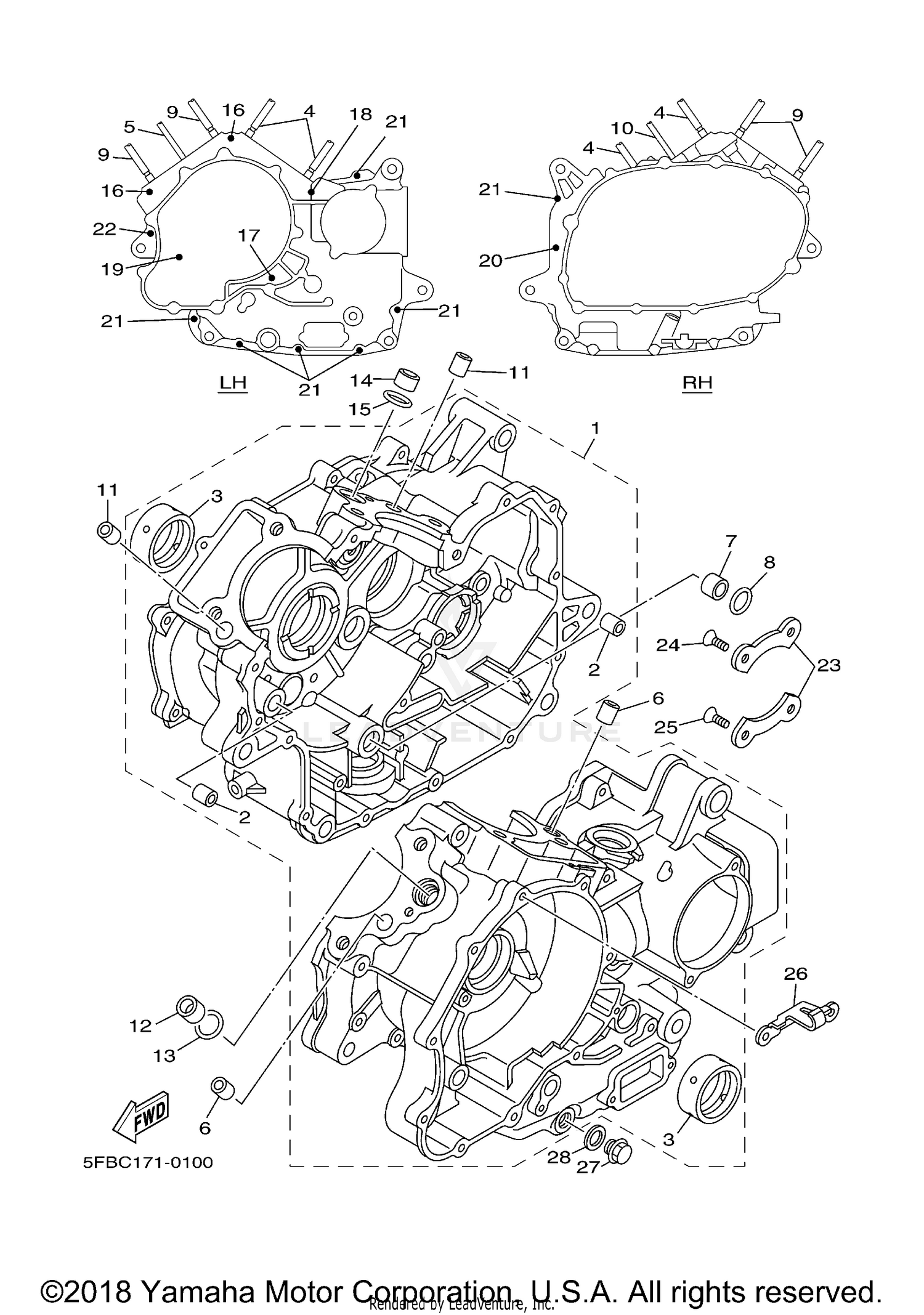

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
4TR-15100-20-00
Superseded by 4TR-15100-29-00
|
$675.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
91815-16017-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLANE BEARING, CRANKSHAFT 1
22U-11416-80-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLANE BEARING, CRANKSHAFT 1
22U-11416-90-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
90116-10611-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-08404-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL A
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-16547-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
90116-10405-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-08404-00
|
$7.99 | ||
|
Unavailable |
|||
|
#11
PIN, DOWEL A
99530-14016-00
|
$3.80 | ||
|
Unavailable |
|||
|
#12
COLLAR
90387-16547-00
|
$8.99 | ||
|
Unavailable |
|||
|
#13
O-RING
93210-18322-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
COLLAR
90387-16547-00
|
$8.99 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-18322-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91314-08060-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91317-08080-00
Superseded by 90110-08003-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
91314-08100-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91317-06095-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
91380-06045-00
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
91317-06045-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91314-06055-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, BEARING COVER
11H-15383-02-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, COUNTERSUNK
90151-08022-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
90149-08152-00
Superseded by 90149-08013-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, CLUTCH CABLE
22U-15441-01-00
Superseded by 22U-15441-02-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
214-11198-01-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
