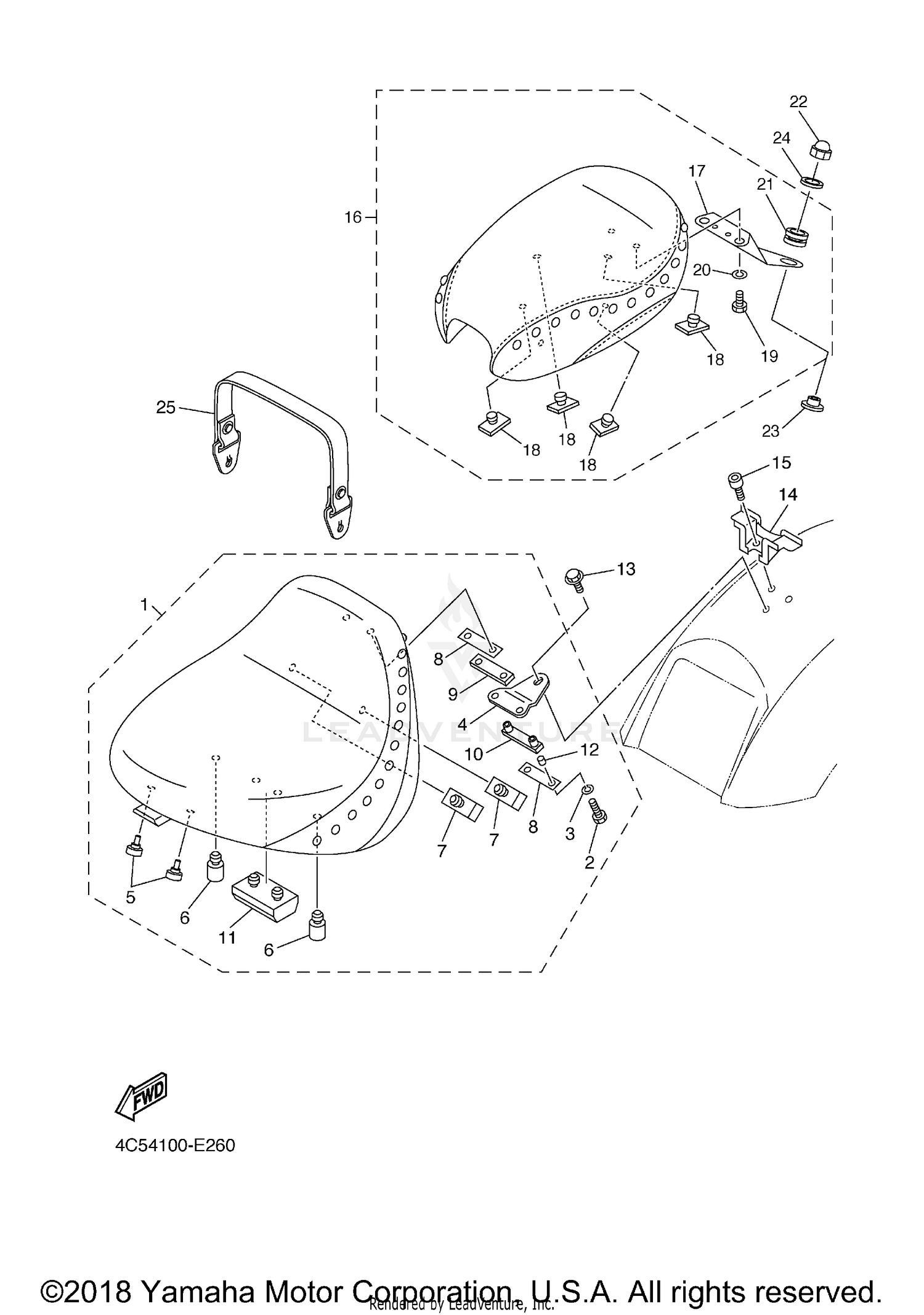

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5SC-24710-10-00
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, SEAT LEVER 1
5BN-2475H-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, SEAT
35T-24724-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, SEAT
5BN-24723-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAD, SEAT
5BN-24741-00-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
5BN-24736-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, SEAT
5BN-24737-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, SEAT
5BN-24747-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, SEAT
5BN-24724-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
5BN-2475Y-00-00
Superseded by 90387-067V1-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET 3
5BN-2475K-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANDEM SEAT ASSY
5SC-24750-10-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, SEAT LEVER 2
5YS-2475J-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, SEAT
509-24724-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92907-06100-00
|
$4.16 | ||
|
Unavailable |
|||
|
#21
GROMMET
5YS-24742-00-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CROWN
90176-08001-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR 1
5YS-2471N-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-08042-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAT BAND ASSY
5BN-24720-00-00
Superseded by 5BN-24720-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
