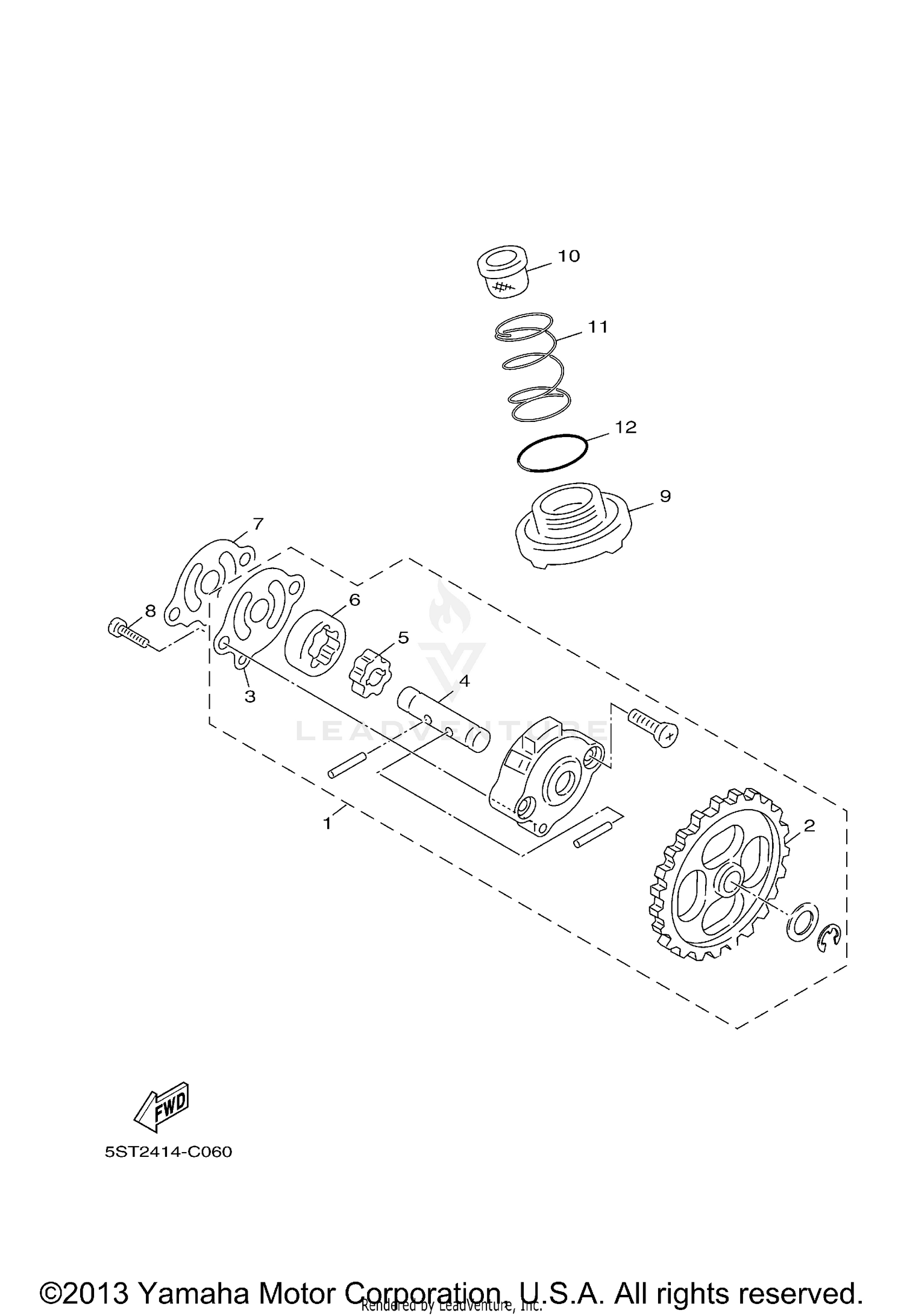

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
5ST-E3300-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN
5ST-E3325-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, PUMP
5ST-E3316-00-00
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, PUMP
5ST-E3314-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR, INNER
5ST-E3312-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OUTER ROTOR
5ST-E3311-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
5ST-E3475-00-00
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, FLAT HEAD
98707-05016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, DRAIN
3UH-E5351-00-00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRAINER, OIL
3KW-E3411-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-16829-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-35879-00
Superseded by 93210-347A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
