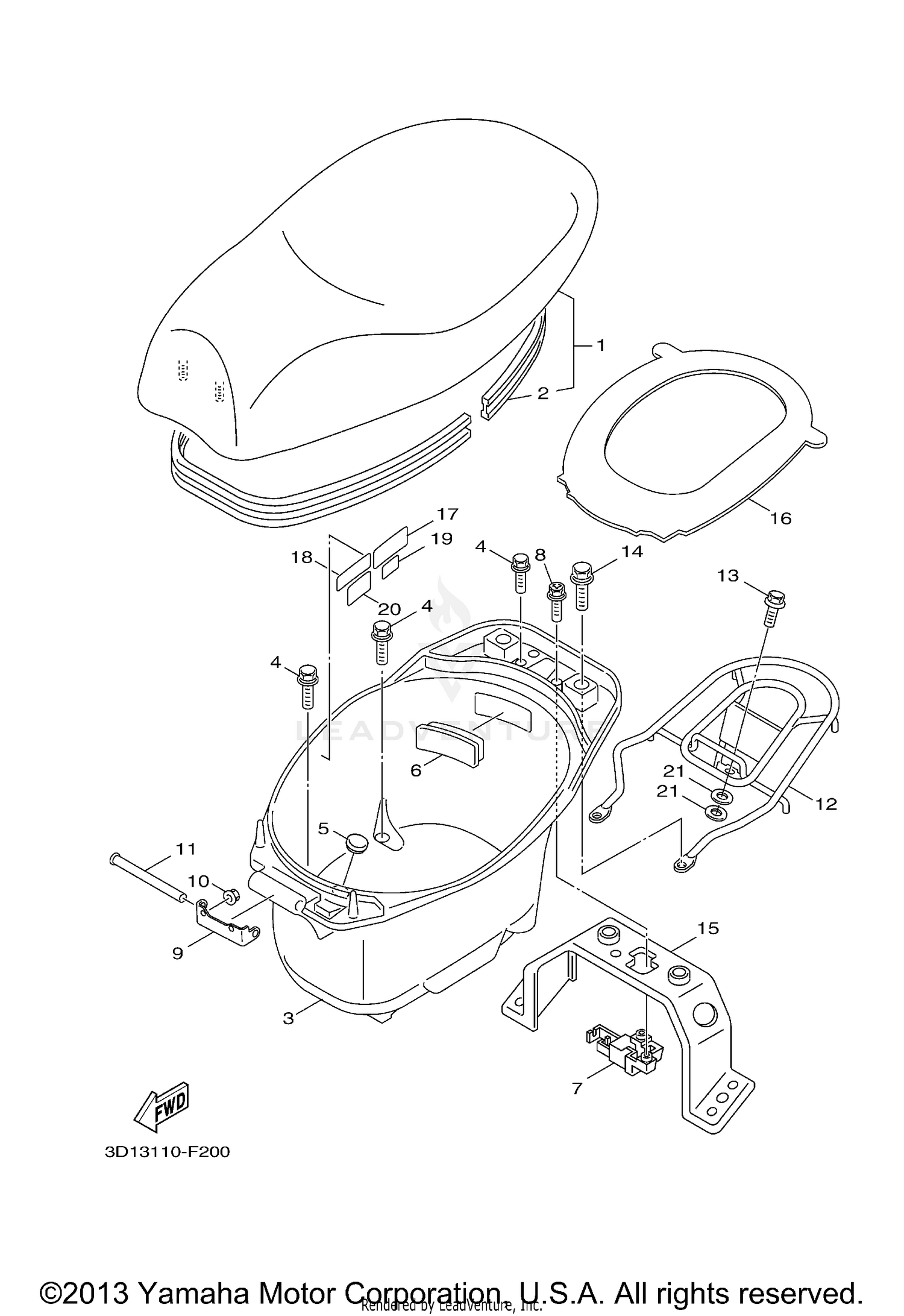

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
5ST-F4730-90-00
Superseded by 5ST-F4730-91-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL
5SU-F475M-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOX 1
5ST-F473R-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90109-06043-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, BLIND
4DH-F6199-01-00
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
5SU-F482H-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT LOCK ASSY
5SU-F4780-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HINGE, SEAT
5ST-F4726-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE
95707-06500-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN 1
5SU-F4623-10-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
CARRIER, REAR
3D1-F4842-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95817-08020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95817-06020-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, ASSIST GRIP 1
5ST-F474H-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, SEAT
5ST-F4747-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
LABEL, TIRE
3D1-F1668-00-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
LABEL, CAUTION
4JK-F8446-01-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
LABEL 1
3D1-F4875-00-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
LABEL, 2
3D1-F4876-00-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
3D1-F1773-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
