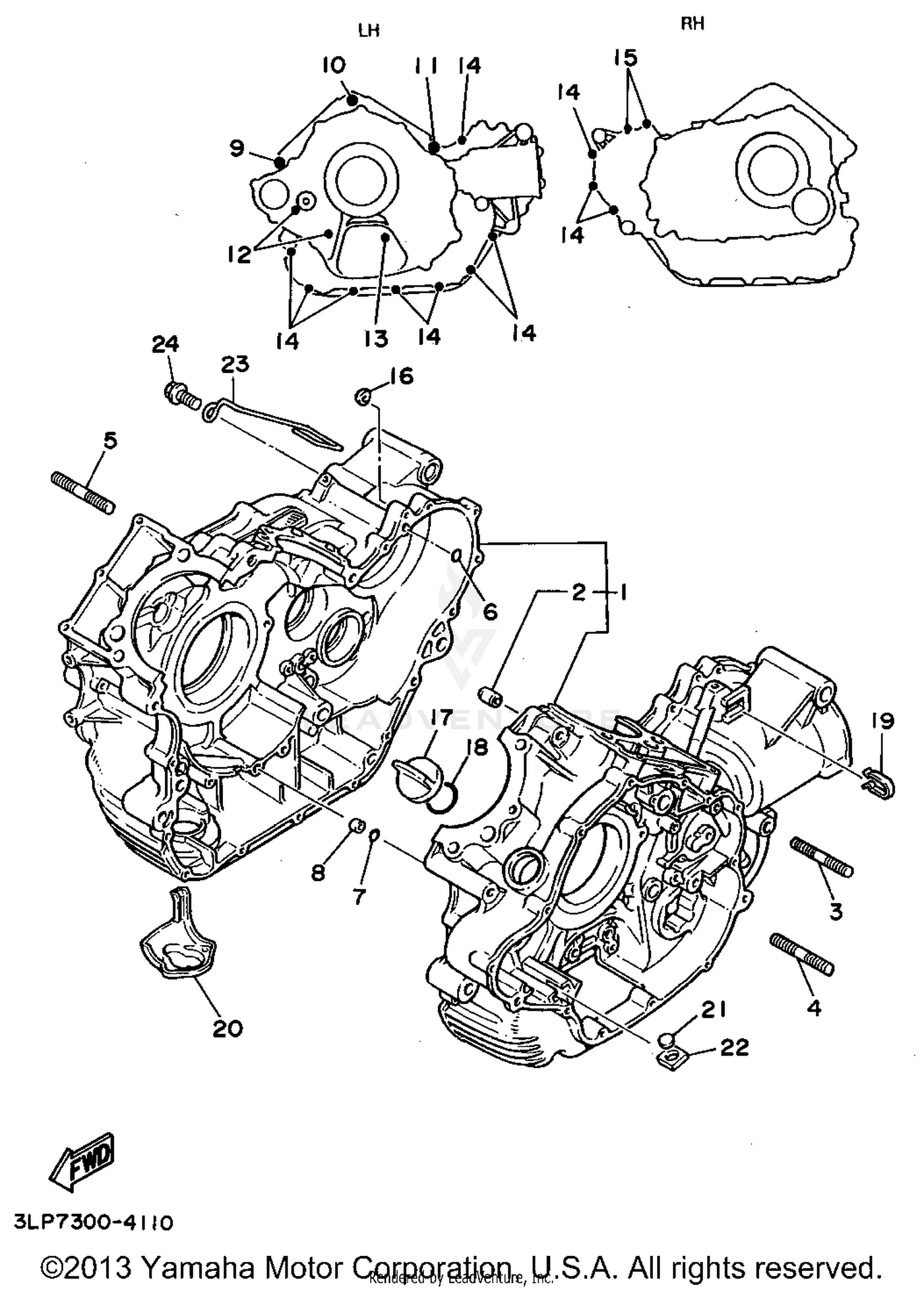

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
42H-15100-02-00
|
$1,746.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-14016-00
|
$2.50 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
95617-10620-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
BOLT, STUD
95617-10620-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
BOLT, STUD
95617-10670-00
|
$11.99 | ||
|
Unavailable |
|||
|
#6
O-RING
93210-07438-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-07135-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-064E8-00
Superseded by 90387-06704-00
|
$2.95 | ||
|
Unavailable |
|||
|
#9
BOLT
91317-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91317-10070-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91317-10060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91317-06080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91317-06030-00
Superseded by 90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, OIL
57A-15363-11-00
|
$82.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-29198-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90465-10168-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
PROTECTOR
4X7-15491-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG
4X7-13419-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-20302-00
|
$9.99 | ||
|
Unavailable |
|||
|
#23
HOLDER, CABLE
42X-21164-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#24
BOLT, WASHER BASED
90105-10275-00
|
$4.45 | ||
|
Unavailable |
|||
