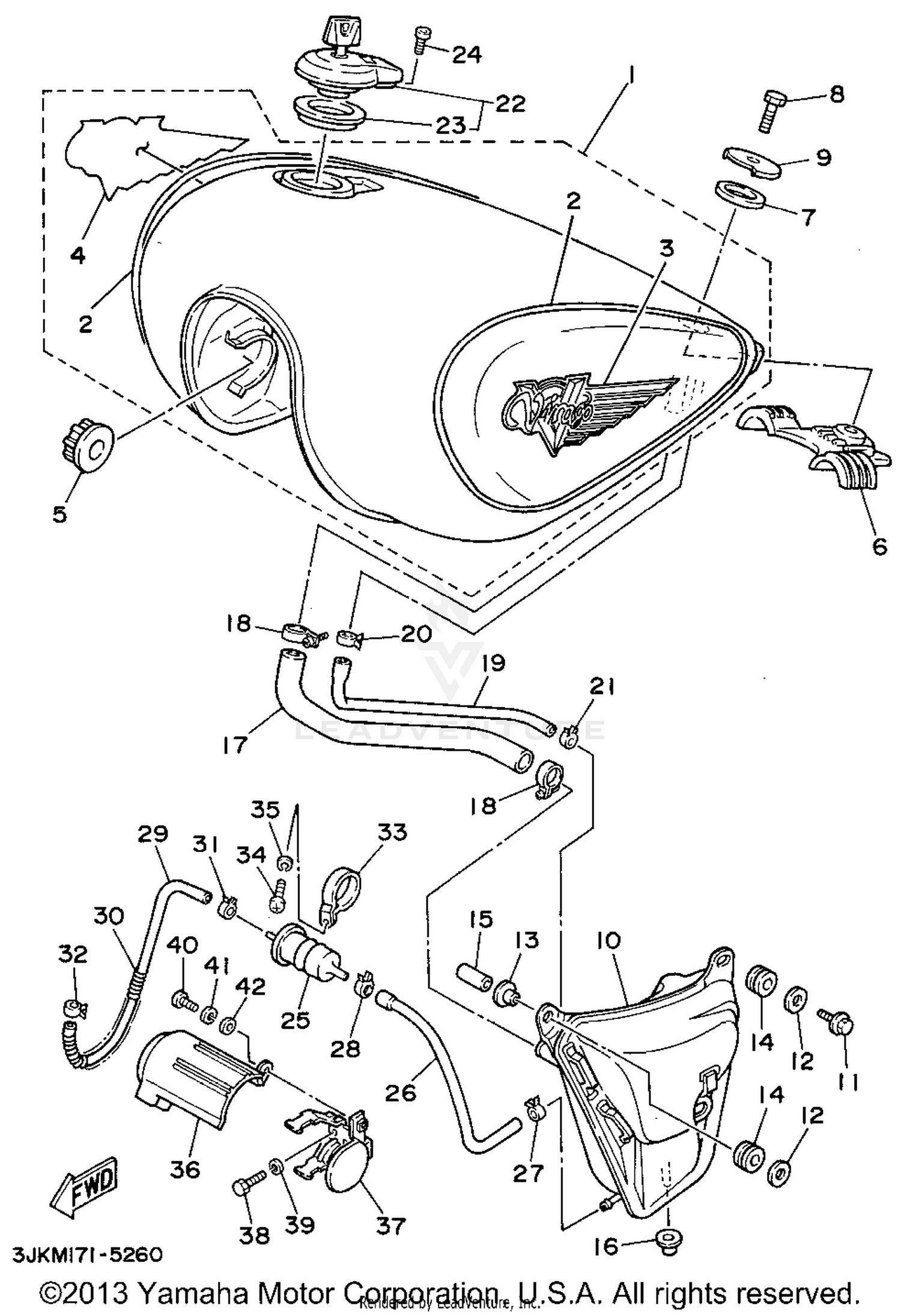

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
1TE-24110-00-X6
|
$742.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
1TE-24110-00-X8
Superseded by 3DR-24110-00-08
|
$920.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
3JK-24240-80-00
|
$217.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET
3JK-24240-70-00
|
$207.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
3JK-24161-10-00
|
$56.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 1
3JK-24161-20-00
|
$75.99 | ||
|
Unavailable |
|||
|
#4
EMBLEM 2
3JK-24162-10-00
|
$58.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 2
3JK-24162-20-00
|
$89.99 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 1
4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 2
42X-24182-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#7
DAMPER, LOCATING 3
42X-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97007-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPECIAL
42X-24186-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUB TANK ASSEMBLY
42H-24280-00-00
|
$366.99 | ||
|
Unavailable |
|||
|
#11
BOLT
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
90560-06258-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-10408-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE 6
42H-24316-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90460-16192-00
Superseded by 90450-28073-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE 7
42H-24317-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP ASSY
4X7-24602-03-00
Superseded by 4X7-24602-10-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PACKING, CAP
4X7-24612-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91317-05010-00
|
$2.40 | ||
|
Unavailable |
|||
|
#25
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, FUEL 1
42H-24311-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-10135-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
CLIP
90467-11044-00
|
$7.49 | ||
|
Unavailable |
|||
|
#29
PIPE 5
42H-24315-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, COMPRESSION
90501-101J5-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-11044-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
CLIP
90467-10135-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
CLAMP
90465-08256-00
|
$24.99 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER
42H-24452-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET, FUEL PUMP
3JK-24491-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#38
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#40
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#42
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
