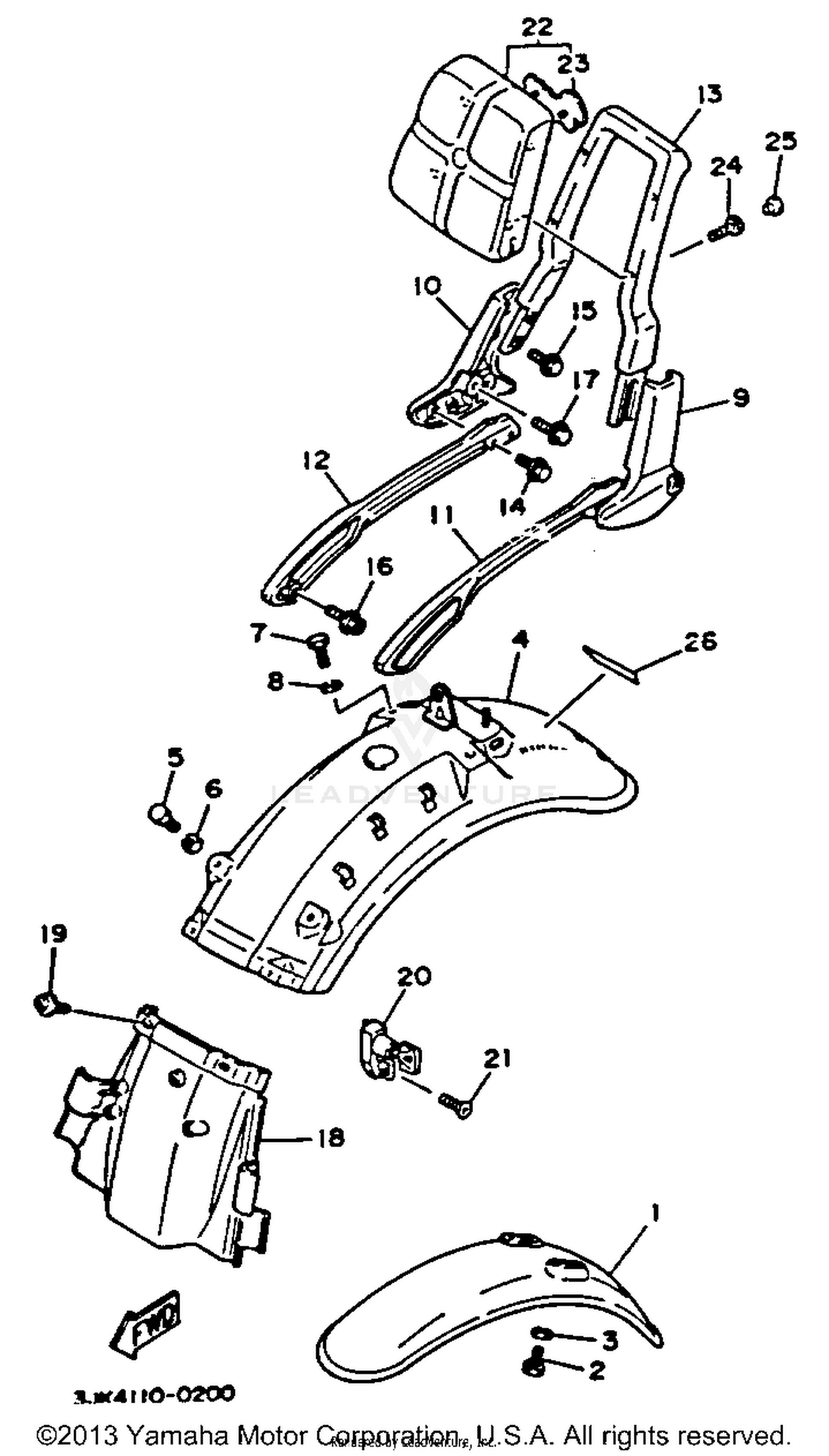

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1MY-21510-00-AU
|
$168.99 | ||
|
Unavailable |
|||
|
#2
BOLT
97021-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, REAR
1RM-21610-01-AU
Superseded by 99999-02953-00
|
$435.99 | ||
|
Unavailable |
|||
|
#5
BOLT
97021-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Unavailable |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#7
BOLT
97022-08012-00
Superseded by 97027-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY 1
1RM-2164F-00-00
|
$245.99 | ||
|
Unavailable |
|||
|
#10
STAY 2
1RM-2164G-00-00
|
$220.99 | ||
|
Unavailable |
|||
|
#11
STAY 3
3JK-2164H-00-00
|
$170.99 | ||
|
Unavailable |
|||
|
#12
STAY 4
3JK-2164J-00-00
|
$190.99 | ||
|
Unavailable |
|||
|
#13
GRIP 1
42H-2164A-02-00
|
$326.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#16
SCREW
90149-08225-00
|
$33.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
90105-10217-00
Superseded by 90105-10153-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUARD, MUD
42X-21629-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#19
SCREW, WITH WASHER
90159-06128-00
|
$2.75 | ||
|
Unavailable |
|||
|
#20
HELMET HANGER ASSY
26H-21308-00-00
Superseded by 26H-21308-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06154-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BACK REST ASSEMBLY
1TA-2840F-00-00
|
$164.99 | ||
|
Unavailable |
|||
|
#23
EMBLEM
42H-24786-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
91311-06035-00
Superseded by 91314-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG
90338-06162-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
EMBLEM, YAMAHA
99236-00020-00
Superseded by 99246-00080-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
