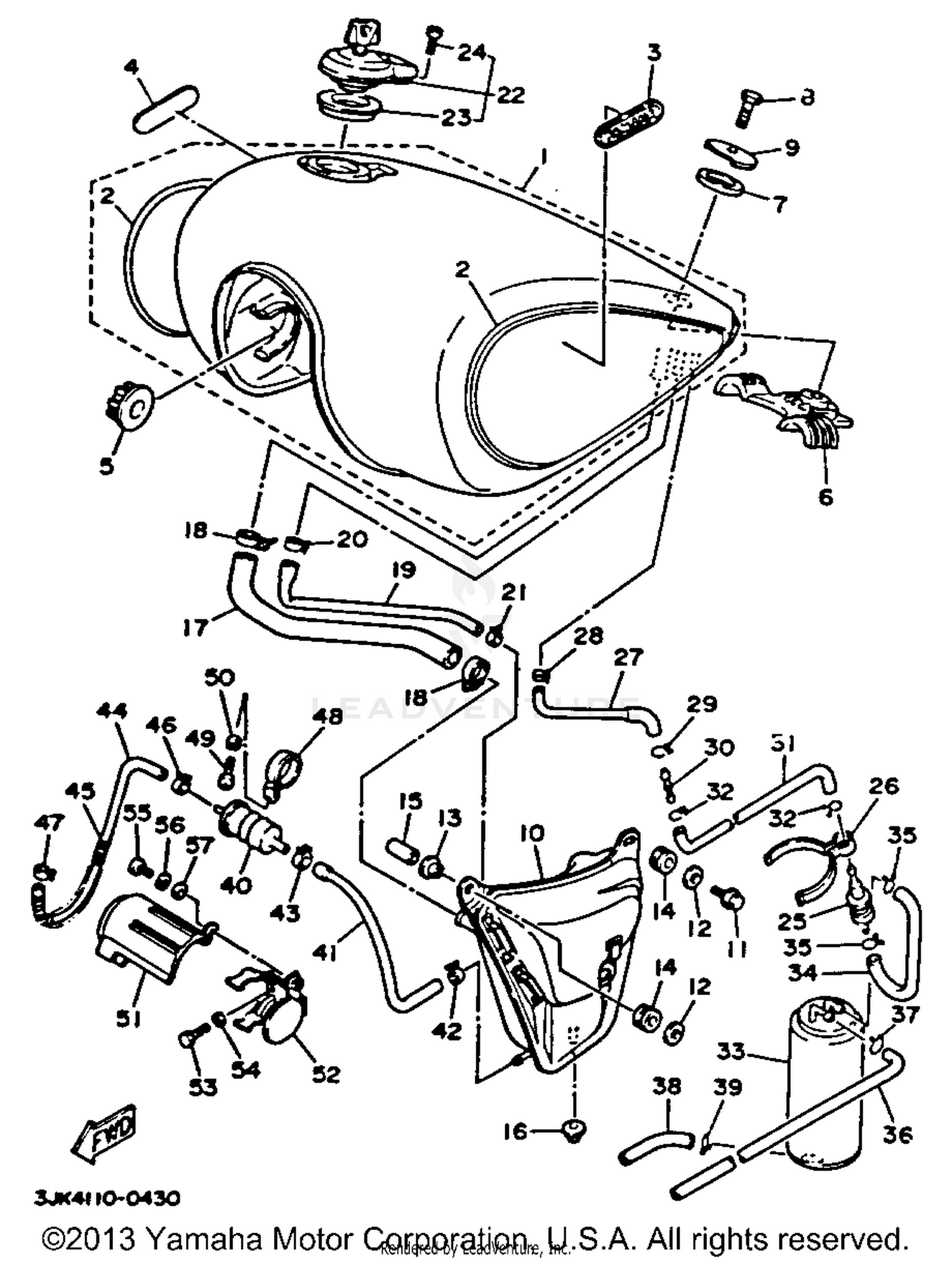

Fuel Tank California Model Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP
1TA-24110-00-09
|
$798.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
3JK-24240-30-00
|
$128.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
1RM-24161-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM 2
1RM-24162-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 1
4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 2
42X-24182-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#7
DAMPER, LOCATING 3
42X-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPECIAL
42X-24186-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUB TANK ASSEMBLY
42H-24280-00-00
|
$366.99 | ||
|
Unavailable |
|||
|
#11
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
90560-06258-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-10408-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE 6
42H-24316-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90460-16192-00
Superseded by 90450-28073-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE 7
42H-24317-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP ASSY
20K-24602-02-00
Superseded by 20K-24602-10-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PACKING, CAP
4X7-24612-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
UNAVAILABLE IN PRICE BOOK
42-H2419-A0-00
|
|||
|
Unavailable |
|||
|
#27
PIPE, JOINT 1
42H-24376-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#28
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
TUBE, CONNECTING
42H-24119-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#31
UNAVAILABLE IN PRICE BOOK
42-H2437-70-00
|
|||
|
Unavailable |
|||
|
#32
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#33
CANISTER ASSEMBLY
42H-24170-00-00
|
$589.99 | ||
|
Unavailable |
|||
|
#34
PIPE, JOINT 4
42H-24378-00-00
Superseded by 42H-24378-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#35
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#36
HOSE (L650)
90445-105G5-00
Superseded by 90445-105K7-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#38
HOSE (L100)
90445-11587-00
Superseded by 90445-11293-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIPE, FUEL 1
42H-24311-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Unavailable |
|||
|
#43
CLIP
90467-11044-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
PIPE 5
42H-24315-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING, COMPRESSION
90501-102A2-00
Superseded by 90501-101J5-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP
90467-11044-00
|
$7.49 | ||
|
Unavailable |
|||
|
#47
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Unavailable |
|||
|
#48
CLAMP
90465-08256-00
|
$24.99 | ||
|
Unavailable |
|||
|
#49
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#51
COVER
42H-24452-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BRACKET, FUEL PUMP
3JK-24491-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#53
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#55
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#56
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#57
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
