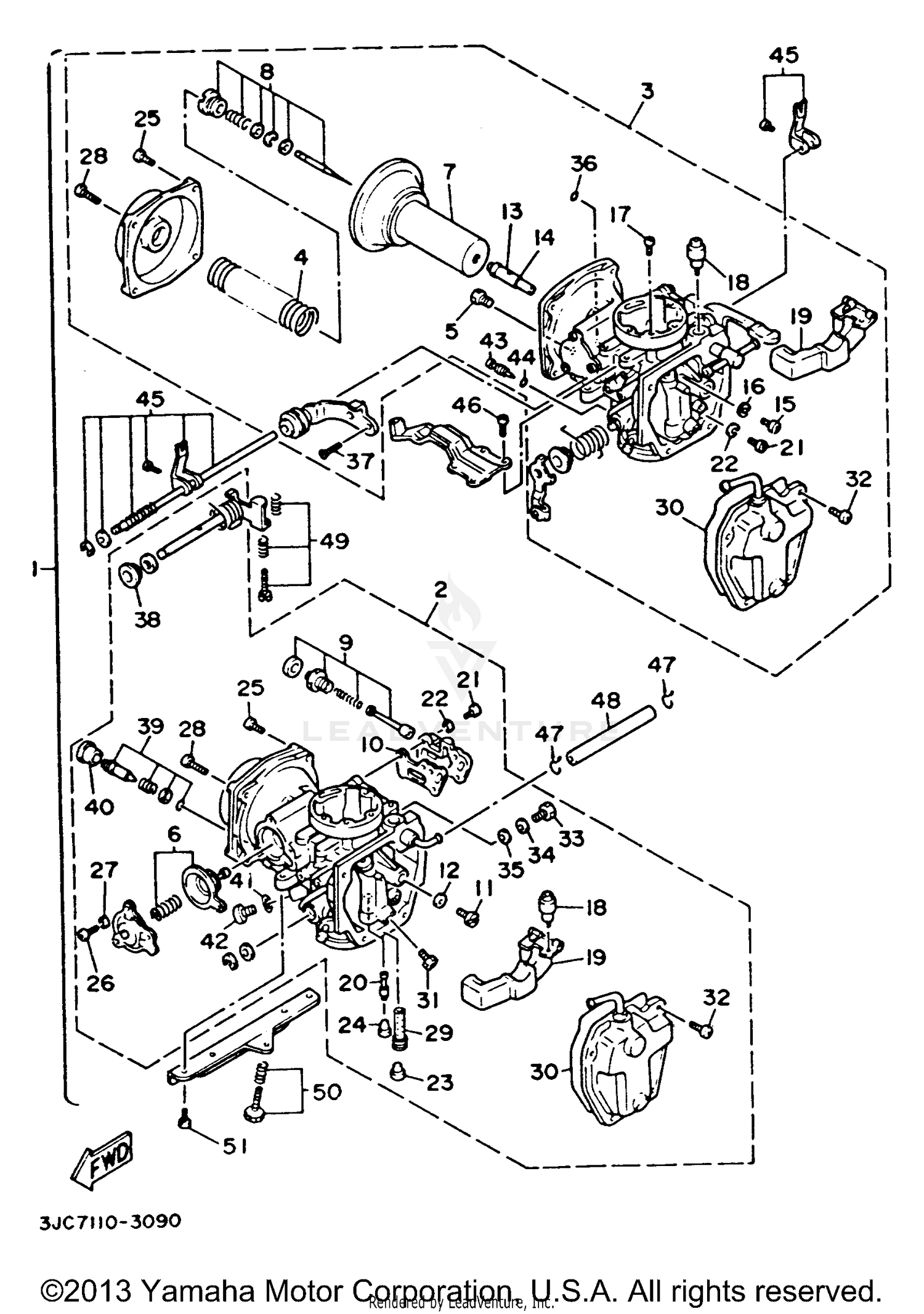

Carburetor Non California Model Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY
3J-C1490-01-10
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 1
3JC-14901-11-00
|
$538.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2
3JC-14902-11-00
|
$829.99 | ||
|
Unavailable |
|||
|
#4
SPRING, DIAPHRAGM
1FK-14933-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, PILOT AIR (#170)
3G2-14231-34-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIAPHRAGM SET 5
22U-1490H-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM ASSEMBLY (41R-14940
41R-14940-00-00
Superseded by 41R-14940-09-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEEDLE SET (REAR CARB.)
3JB-1490J-10-00
|
$14.99 | ||
|
Unavailable |
|||
|
#
NEEDLE SET (FRONT CARB.)
3JB-1490J-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#9
STARTER SET
11H-1410A-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
3JB-14536-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
22U-14565-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, MAIN JET
137-14153-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NOZZLE, MAIN
2JU-14141-90-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
22U-14147-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET,PILOT AIR(#70)
3G2-14231-14-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE VALVE ASSY
1FK-14190-15-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLOAT
1FK-14985-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, PILOT (35)
4G0-14142-35-A0
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Unavailable |
|||
|
#23
CAP
22U-14968-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP
22V-14968-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-04010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
90157-05050-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE, MAIN BREED
2JU-1414G-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
22V-14147-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, MAIN (#135)
3G2-14231-27-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#137.5)
3G2-1423A-78-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98580-05012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUG, SCREW
341-14991-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER
26H-14952-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
22U-14952-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING
93210-03119-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, FLAT HEAD
98701-06010-00
Superseded by 98707-06010-00
|
$1.25 | ||
|
Unavailable |
|||
|
#38
WASHER
341-14954-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PILOT SCREW SET
12R-14105-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CAP
3F9-14118-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
GASKET
127-14198-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, PAN HEAD
98502-08014-00
|
$0.89 | ||
|
Unavailable |
|||
|
#43
PLUG, DRAIN
2L1-14191-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING
214-14147-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
STARTER LEVER SET, 1
3JB-1490L-00-00
|
$217.99 | ||
|
Unavailable |
|||
|
#46
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOSE
31H-14987-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
STOP SCREW SET
22U-1490K-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#50
THROTTLE SCREW SET
22U-14103-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#51
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
