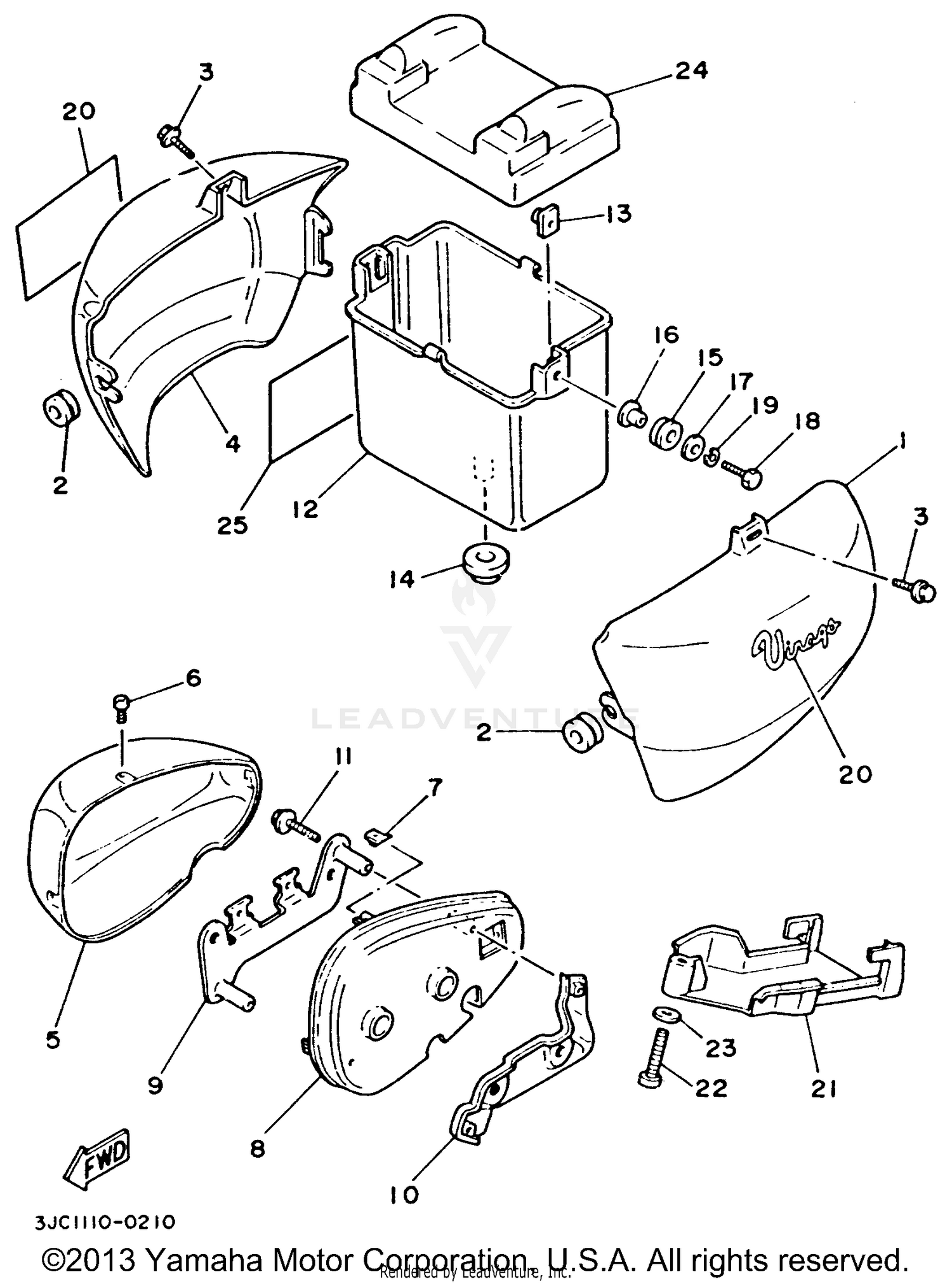

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
2GV-21711-00-9B
|
$89.99 | ||
|
Unavailable |
|||
|
#2
GROMMET
90480-12320-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06123-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SIDE 2
2GV-21721-00-9B
|
$92.99 | ||
|
Unavailable |
|||
|
#5
COVER, SIDE 3
2GV-21731-00-93
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
97701-40012-00
Superseded by 97704-40012-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPRING
90183-04027-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
PANEL 1
2GV-2172A-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PANEL 2
2GV-2172F-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#10
STAY, SIDE COVER 2
2GV-2174E-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95816-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX
2GV-21171-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE
31A-14477-00-00
Superseded by 31A-14477-10-00
|
$1.55 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-22362-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
EMBLEM 1
3BT-21781-20-00
|
$11.49 | ||
|
Unavailable |
|||
|
#21
PLATE
3JB-2176E-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
LID
3JB-28185-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#25
PLATE, EPA 2
3JC-2179R-10-00
|
$29.99 | ||
|
Unavailable |
|||
|
#
PLATE, EPA 1
3JC-2179V-10-00
|
$14.49 | ||
|
Unavailable |
|||
