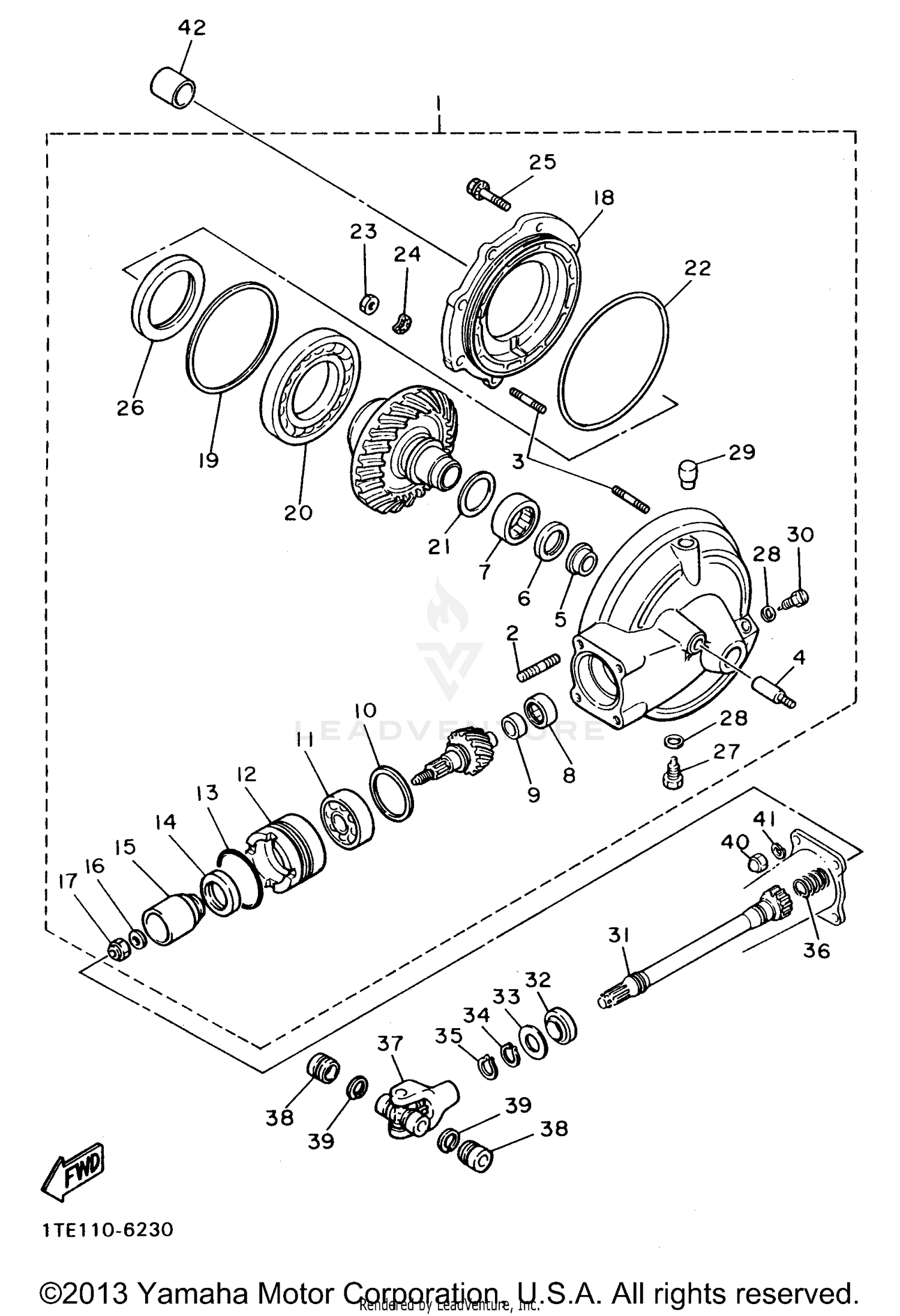

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR AXLE GEAR CASE ASSEMBLY
5G2-46101-01-00
|
$2,501.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-10361-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
90116-08360-00
Superseded by 95617-08620-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
90116-10249-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, GUIDE
4H7-46153-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93101-30084-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93311-43729-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING ASSY
93317-41510-00
Superseded by 2H7-46102-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RACE, INNER
2H7-46122-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.40T)
1J7-17537-Y0-40
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.30T)
1J7-17537-Y0-30
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30533-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RETAINER, BEARING
4H7-46125-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-60426-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93101-38098-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COUPLING, GEAR
4H7-46123-01-00
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-14632-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOUSING, BEARING
4H7-46152-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, RING GEAR (0.50T)
1J7-46117-Y0-50
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, RING GEAR (0.30T)
1J7-46117-Y0-30
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, RING GEAR (0.40T)
1J7-46117-Y0-40
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93316-01403-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM, THRUST (2.0T)
22U-46118-00-20
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (1.8T)
22U-46118-00-18
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (1.2T)
22U-46118-00-12
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (1.4T)
22U-46118-00-14
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (1.6T)
22U-46118-00-16
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93211-44348-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
92901-08700-00
Superseded by 92907-08700-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-70167-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, STRAIGHT SCREW
3VD-13455-00-00
Superseded by 90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
BREATHER COMP.
2H7-17590-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG, STRAIGHT SCREW
90340-14118-00
Superseded by 90340-14004-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHAFT, DRIVE
4X7-46172-00-00
|
$190.89 | ||
|
Unavailable |
|||
|
#32
OIL SEAL
93108-23007-00
Superseded by 93108-43013-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-231A2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP
93410-23056-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING, COMPRESSION
90501-16491-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CROSS JOINT COMP.
4X7-46180-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING
93399-99926-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
93440-20088-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, CROWN
90176-10075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-172A5-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
