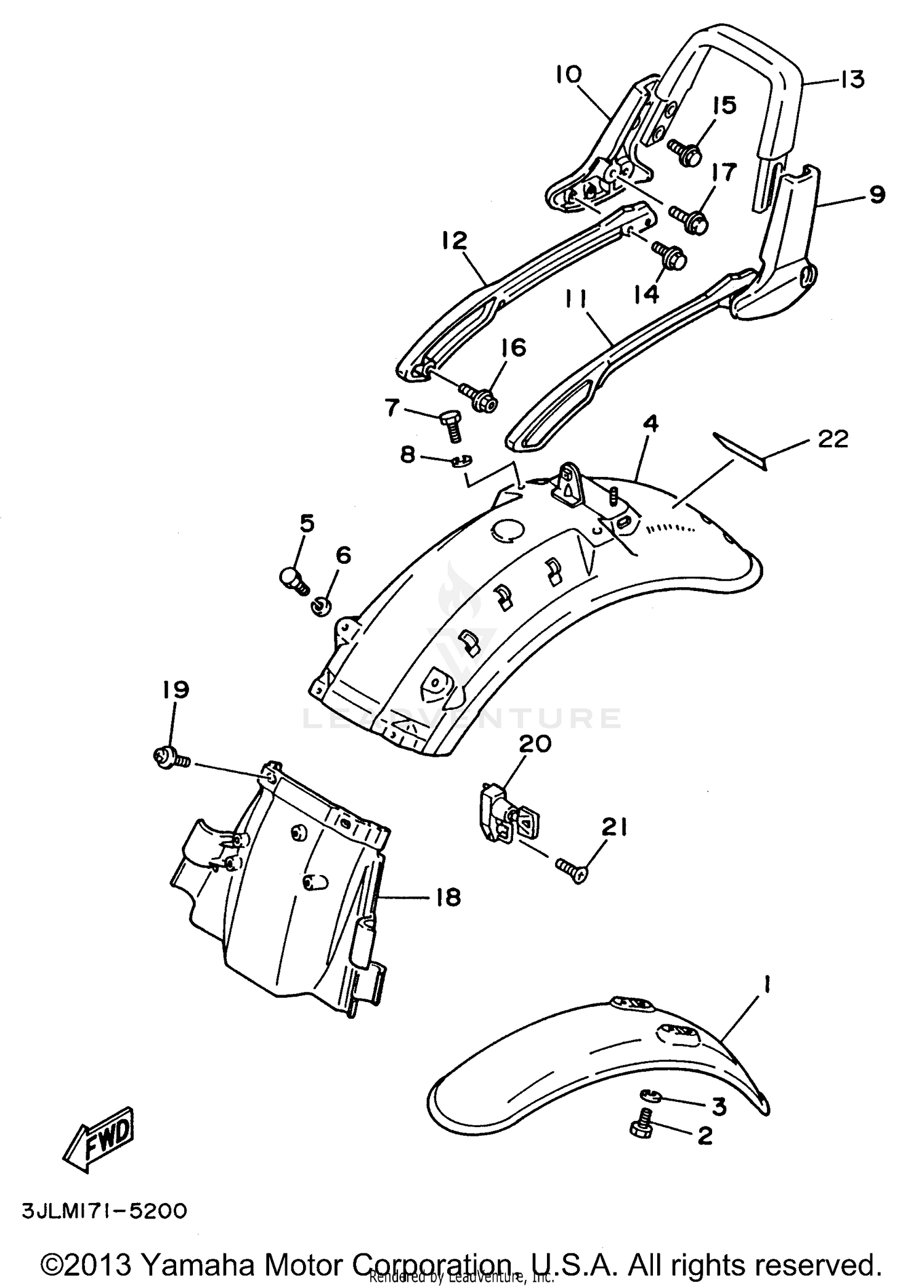

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
1MY-21510-00-FE
|
$162.99 | ||
|
Unavailable |
|||
|
#
FRONT FENDER COMP.
1MY-21510-00-T7
|
$162.99 | ||
|
Unavailable |
|||
|
#
FRONT FENDER COMP.
1MY-21510-00-33
|
$164.99 | ||
|
Unavailable |
|||
|
#2
BOLT
97027-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR FENDER COMP.
1RM-21610-01-FE
|
$454.99 | ||
|
Unavailable |
|||
|
#
REAR FENDER COMP.
1RM-21610-01-T7
|
$454.99 | ||
|
Unavailable |
|||
|
#
REAR FENDER COMP.
1RM-21610-01-33
|
$454.99 | ||
|
Unavailable |
|||
|
#5
BOLT
97027-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Unavailable |
|||
|
#6
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#7
BOLT
97027-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY 1
1RM-2164F-00-00
|
$245.99 | ||
|
Unavailable |
|||
|
#10
STAY 2
1RM-2164G-00-00
|
$220.99 | ||
|
Unavailable |
|||
|
#11
STAY 3
1RM-2164H-00-00
|
$191.99 | ||
|
Unavailable |
|||
|
#12
STAY 4
1RM-2164J-00-00
|
$191.99 | ||
|
Unavailable |
|||
|
#13
GRIP 1
55R-2164A-02-00
|
$131.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#16
SCREW
90149-08225-00
|
$33.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
90105-10217-00
Superseded by 90105-10153-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUARD, MUD
42X-21629-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#19
SCREW, WITH WASHER
90159-06128-00
|
$2.75 | ||
|
Unavailable |
|||
|
#20
HELMET HANGER ASSY
26H-21308-00-00
Superseded by 26H-21308-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06154-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM, YAMAHA
99237-00080-00
Superseded by 99247-00080-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
99236-00080-00
Superseded by 99246-00080-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
