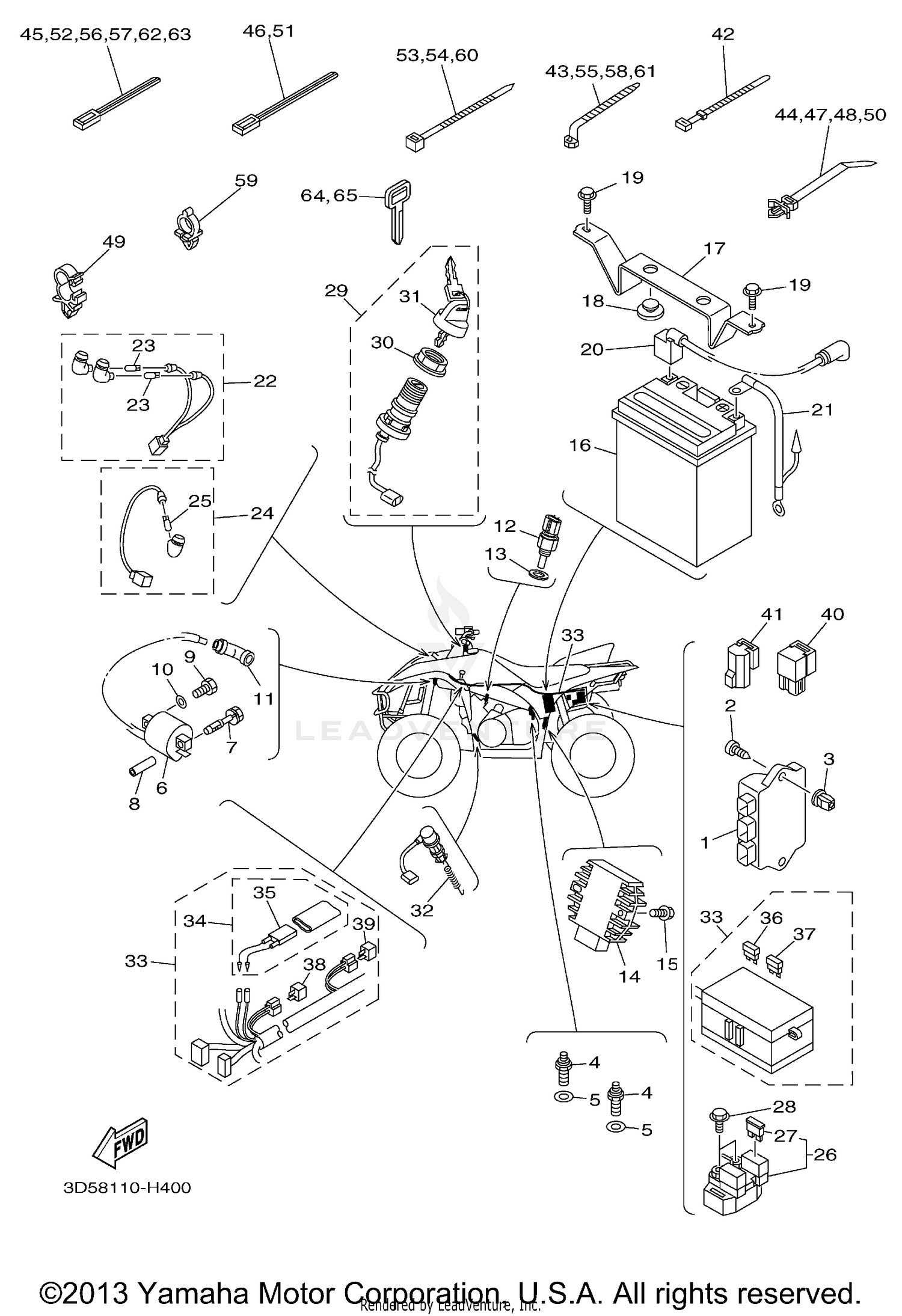

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
5UH-85540-00-00
|
$535.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TAPPING
97702-60420-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG
90338-08226-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
IGNITION COIL ASSY
5KM-82310-00-00
Superseded by 5KM-82310-03-00
|
$44.99 | ||
|
Unavailable |
|||
|
#7
BOLT
90109-06865-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
5UH-H1318-00-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97002-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
THERMO UNIT
4GB-83591-10-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-12172-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
RECTIFIER & REGULATOR ASSY
5GT-81960-00-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95802-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
YTX14AHBS YUASA BAT
BTY-YTX14-AH-BS
Superseded by YTX-14AHB-S0-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, BATTERY
5TE-H2128-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PAD, BATTERY
371-82121-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95802-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Unavailable |
|||
|
#20
WIRE, PLUS LEAD
3D5-H2115-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE, MINUS LEAD
5UH-H2116-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PILOT LIGHT ASSY
5TE-83530-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PILOT LIGHT ASSY
4KB-83530-30-00
Superseded by 4KB-83530-31-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
STARTER RELAY ASSY (RC19-026)
4XE-81940-12-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE (20A-BL)
2GH-82151-00-00
Superseded by 2GV-82151-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95022-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
MAIN SWITCH ASSY
5LP-82510-00-00
Superseded by 5LP-82510-01-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, KEY
3HN-82579-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
STOP SWITCH ASSY
4KB-82530-10-00
Superseded by 4KB-82530-11-00
|
$45.99 | ||
|
Unavailable |
|||
|
#33
WIRE HARNESS ASSY
3D5-82590-00-00
|
$431.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCUIT BREAKER ASSY
5ND-82180-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
THERMO SWITCH ASSY
5ND-82560-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#37
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#38
DIODE ASSY
3WP-81980-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
DIODE ASSY
4WA-81980-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-00-00
Superseded by 5DM-81950-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
RELAY ASSY (29U-93)
29U-81950-93-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
90464-51800-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90464-12830-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP
90464-25800-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-31827-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90464-40825-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
90464-25800-00
|
$1.75 | ||
|
Unavailable |
|||
|
#48
CLAMP
90464-25800-00
|
$1.75 | ||
|
Unavailable |
|||
|
#49
CLAMP
90464-16006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLAMP
90464-25800-00
|
$1.75 | ||
|
Unavailable |
|||
|
#51
CLAMP
90464-40825-00
|
$2.90 | ||
|
Unavailable |
|||
|
#52
CLAMP
90464-31827-00
|
$3.20 | ||
|
Unavailable |
|||
|
#53
CLAMP
90464-48800-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLAMP
90464-48800-00
|
$4.30 | ||
|
Unavailable |
|||
|
#55
CLAMP
90464-12830-00
|
$1.40 | ||
|
Unavailable |
|||
|
#56
CLAMP
90464-31827-00
|
$3.20 | ||
|
Unavailable |
|||
|
#57
CLAMP
90464-31827-00
|
$3.20 | ||
|
Unavailable |
|||
|
#58
CLAMP
90464-12830-00
|
$1.40 | ||
|
Unavailable |
|||
|
#59
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.40 | ||
|
Unavailable |
|||
|
#60
CLAMP
90464-48800-00
|
$4.30 | ||
|
Unavailable |
|||
|
#61
CLAMP
90464-12830-00
|
$1.40 | ||
|
Unavailable |
|||
|
#62
CLAMP
90464-31827-00
|
$3.20 | ||
|
Unavailable |
|||
|
#63
CLAMP
90464-31827-00
|
$3.20 | ||
|
Unavailable |
|||
|
#64
BLANK KEY (A-TYPE)
90890-56001-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#65
BLANK KEY (B-TYPE)
90890-56002-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
