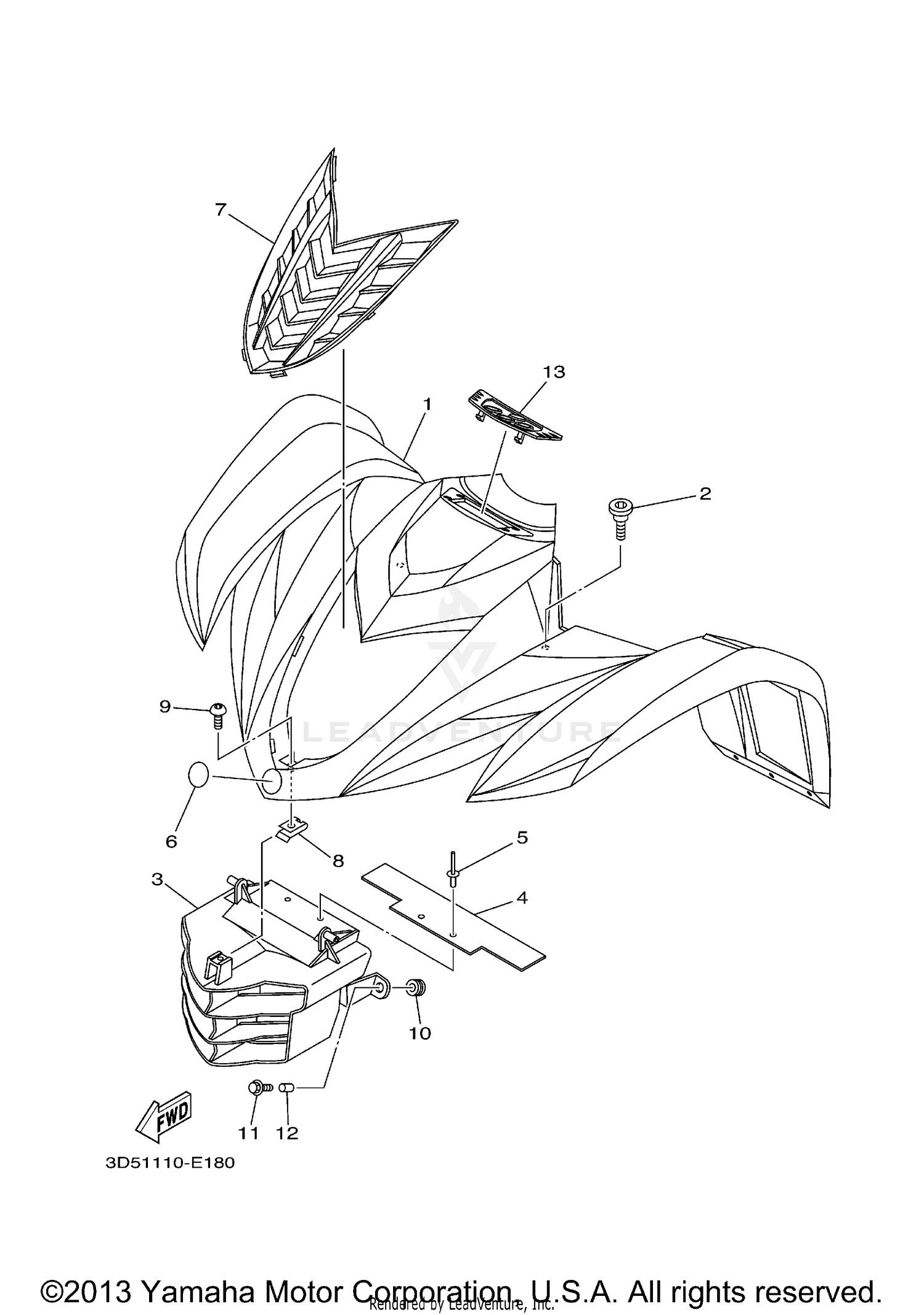

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
3C2-F1500-90-00
|
$348.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-08076-00
Superseded by 90109-08077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRILLE, FRONT
3C2-F8309-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DEFLECTOR 1
3D5-F4131-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIVET
90269-08813-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUNING FORK MARK
3C2-F836B-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, FRONT 2
3C2-F1556-A0-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-050A8-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,HEX. SOCKET BUT
90110-05201-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-15235-00
Superseded by 90480-12475-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95802-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-072Y2-00
Superseded by 90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PANEL, CONSOLE 1
3D5-F837L-00-00
|
$6.99 | ||
|
Unavailable |
|||
