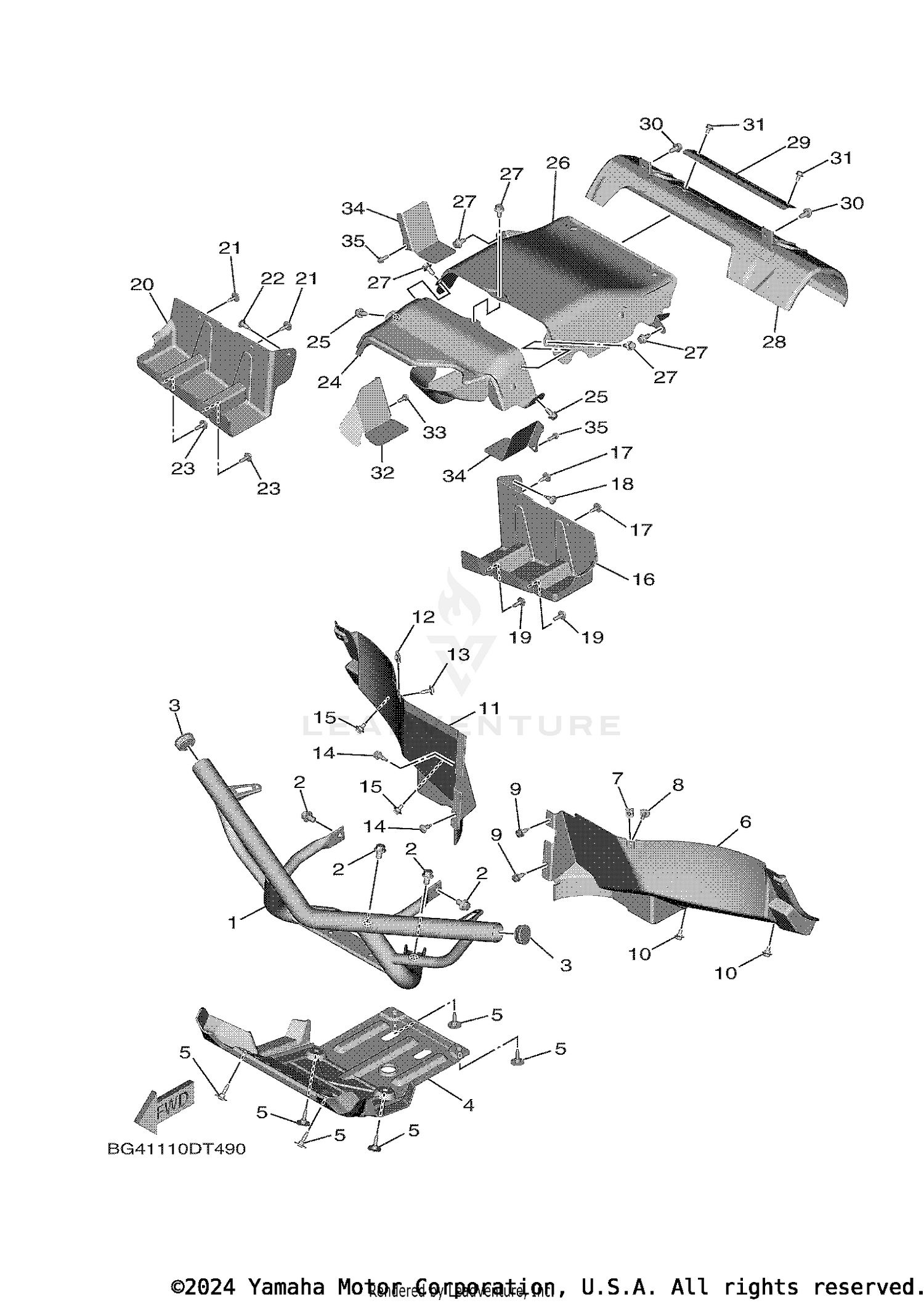

Guard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, CARRY FRONT
BG4-F845N-11-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG
5UG-F2417-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, UNDER
2MB-F8385-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-068A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUARD 1
BG4-F2361-00-00
Superseded by BG4-F2361-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPRING
90183-060A6-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-06226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET
90269-07805-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-06202-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD 2
BG4-F2362-00-00
Superseded by BG4-F2362-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-060A6-00
|
$4.75 | ||
|
Unavailable |
|||
|
#13
BOLT, WITH WASHER
90119-06226-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
RIVET
90269-07805-00
|
$1.65 | ||
|
Unavailable |
|||
|
#15
BOLT
90109-06202-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
MUD GUARD 1
BG4-F2327-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WITH WASHER
90119-06226-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
RIVET
90269-07805-00
|
$1.65 | ||
|
Unavailable |
|||
|
#19
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
MUD GUARD 2
BG4-F2328-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WITH WASHER
90119-06226-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
RIVET
90269-07805-00
|
$1.65 | ||
|
Unavailable |
|||
|
#23
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.65 | ||
|
Unavailable |
|||
|
#24
PROTECTOR, HEAT
BG4-E2682-01-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-08867-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR, HEAT
BG4-E2683-01-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
90105-08867-00
|
$14.49 | ||
|
Unavailable |
|||
|
#28
INSULATOR, MOUNTING
BG4-F2891-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
INSULATOR, MOUNTING 2
BG4-F2894-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
90105-08867-00
|
$14.49 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
PROTECTOR 2
BG4-F2826-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
90105-06832-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#34
PROTECTOR 1
BG4-F2825-00-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
90105-06832-00
|
$2.00 | ||
|
Unavailable |
|||
