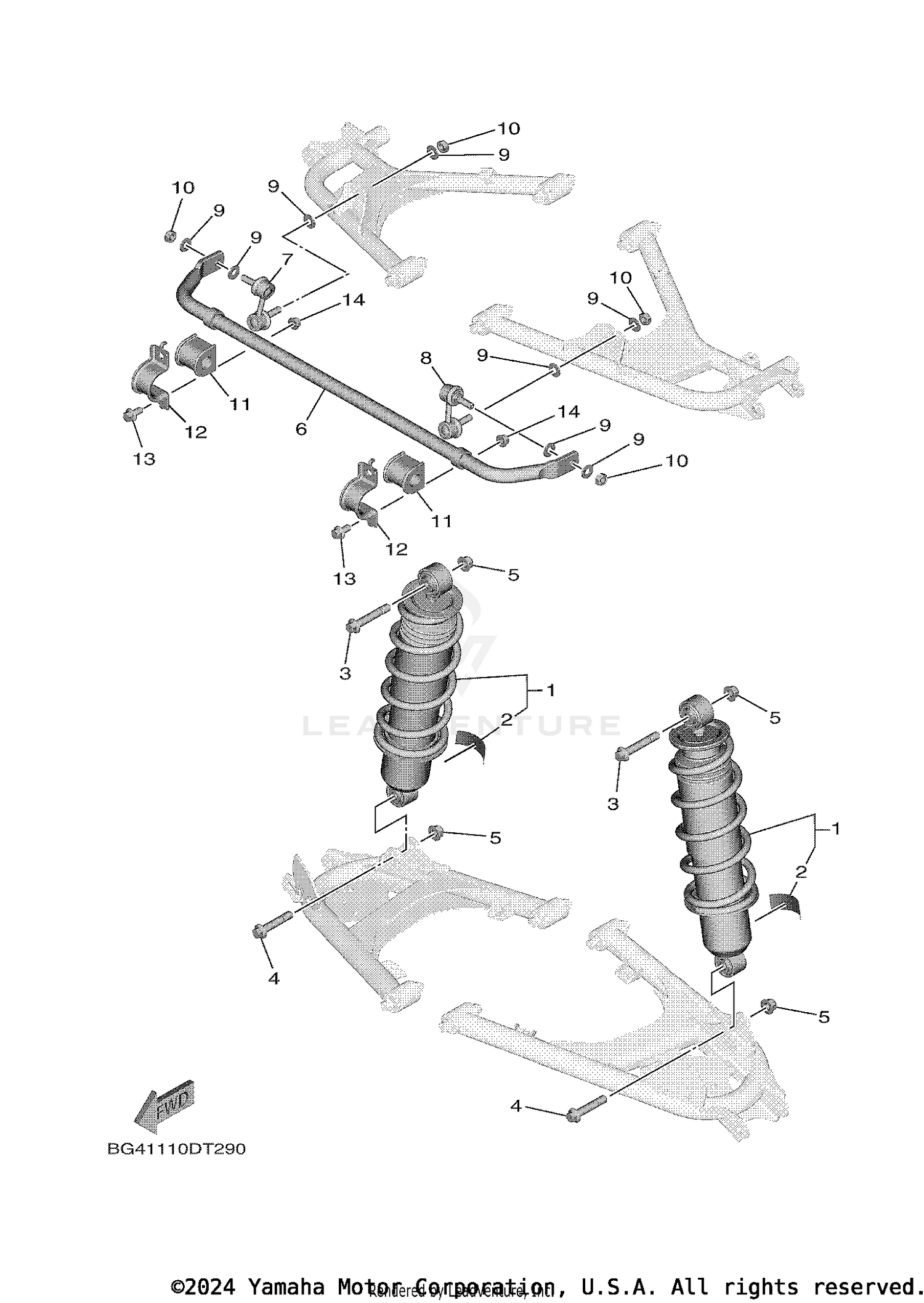

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
BG4-F2200-50-00
|
$483.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LABEL, WARNING
1HP-F2259-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-12056-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-12055-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
90185-12009-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, STABILIZER
BG4-G7491-01-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, STABILIZER 1
16B-2385L-10-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, STABILIZER 2
16B-2385M-10-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-10012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH, STABILIZER FRONT
1XD-F386G-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, STABILIZER FRONT
1XD-F386H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95812-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-10011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
