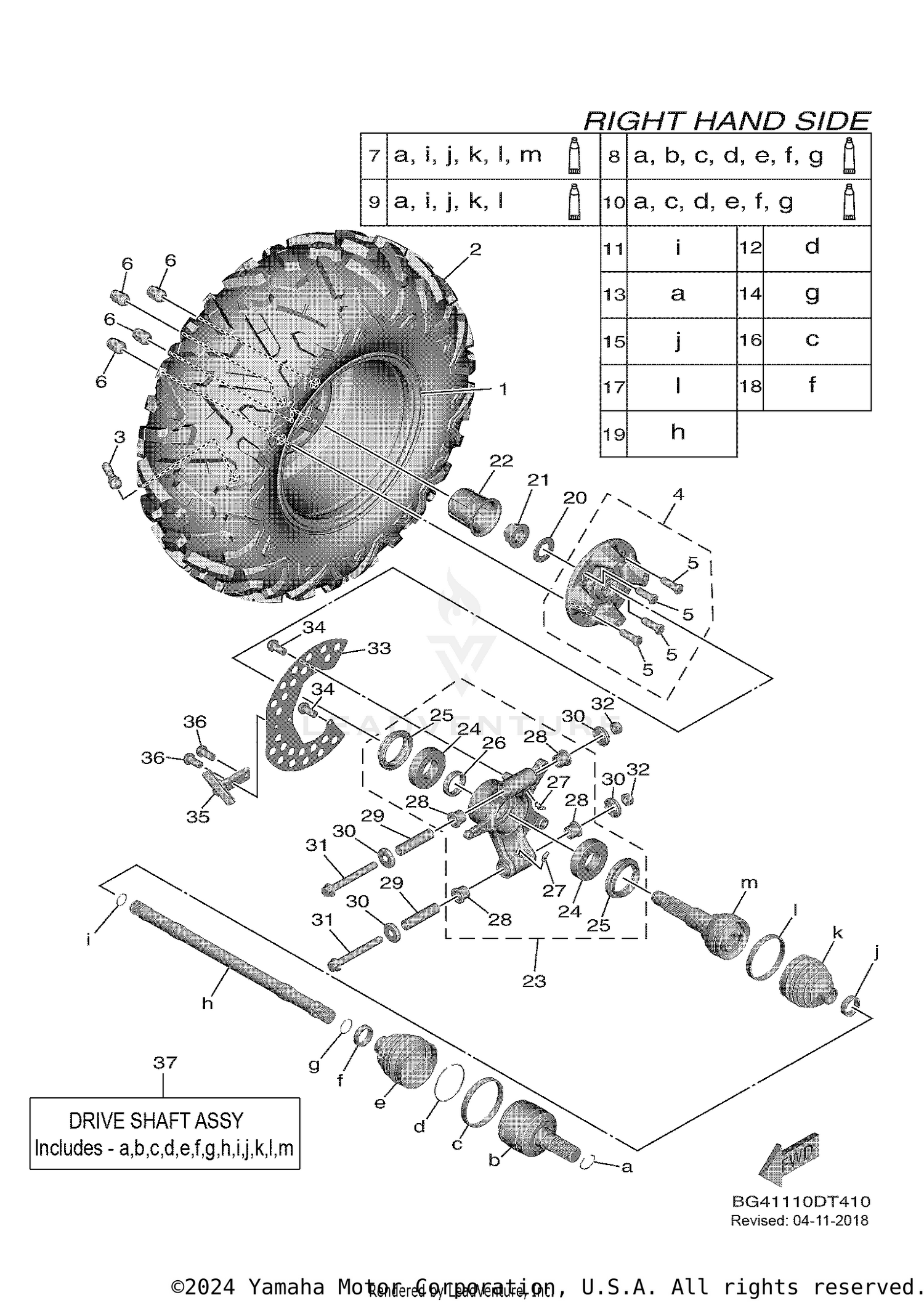

Rear Wheel 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
BG4-F5307-00-00
|
$197.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (26X10.00-12 MU76 6PR TL)
94110-12822-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB ASSY 2
2MB-F510D-01-00
Superseded by 2MB-F510D-04-00
|
$86.99 | ||
|
Unavailable |
|||
|
#5
BOLT, SERRATION
90114-12005-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CROWN
90176-12800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
. .BALL JOINT SET
BG4-2530T-00-00
Superseded by BG4-2530T-01-00
|
$361.99 | ||
|
Unavailable |
|||
|
#8
. .DOUBLE OFF SET JOINT
BG4-2530V-00-00
Superseded by BG4-2530V-01-00
|
$472.99 | ||
|
Unavailable |
|||
|
#9
. .BOOT SET (BALL JOINT)
BG4-2530X-00-00
Superseded by BG4-2530X-01-00
|
$49.99 | ||
|
Unavailable |
|||
|
#10
. .BOOT SET(DOUBLE OFFSET JOINT
2HC-2530Y-00-00
Superseded by 2HC-2530Y-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
BG4-25185-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, SPRING
2HC-2536E-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, SPRING
16B-2536E-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
SNAP RING
2HC-2512J-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND
BG4-26397-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND
2HC-26293-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND
BG4-2639A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND
2HC-25719-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT
BG4-259A2-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-25023-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-24006-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, WHEEL
2MB-F512A-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
REAR KNUCKLE ASSY.
1XD-F532F-20-00
Superseded by 1XD-F532F-21-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20725-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93106-50002-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-35007-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NIPPLE, GREASE
93700-06009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSH, SOLID
90381-18005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-12N54-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, THRUST 1
1XD-23517-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-12089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, SELF-LOCKING
90185-12010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
RING, WHEEL 1
1XD-F514A-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, GUIDE 2
1XD-F2342-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Unavailable |
|||
|
#37
REAR DRIVE SHAFT ASSY
BG4-2531H-00-00
Superseded by BG4-2531H-01-00
|
$244.99 | ||
|
Unavailable |
|||
