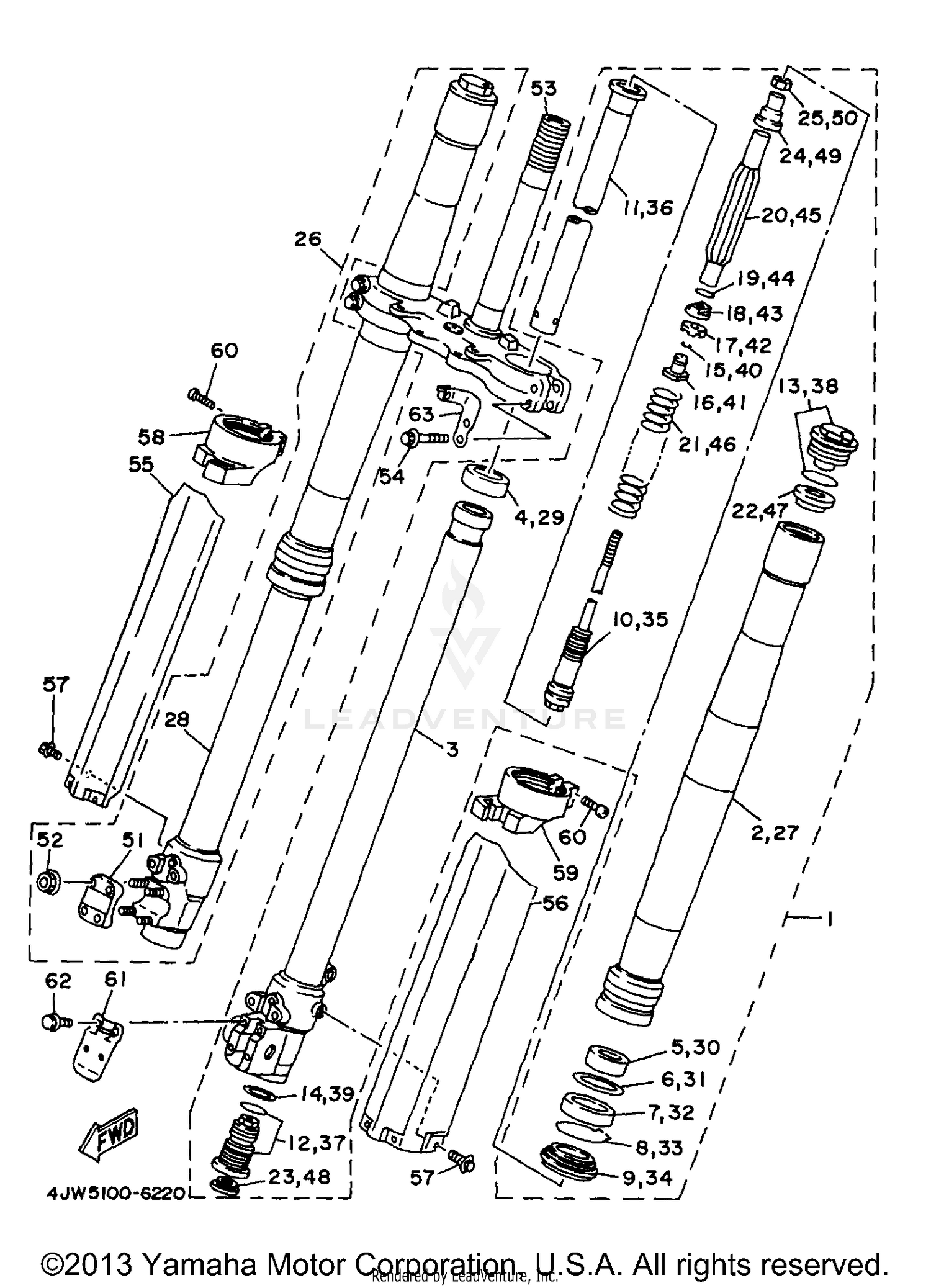

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
4JW-23102-30-00
|
$872.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (RIGHT)
4JW-23136-30-00
|
$687.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP.2
4EW-23120-L0-00
|
$449.99 | ||
|
Unavailable |
|||
|
#4
PISTON, FRONT FORK
3XJ-23171-L0-00
Superseded by 5EB-23171-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
4EW-23125-L0-00
|
$17.99 | ||
|
Unavailable |
|||
|
#6
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
3XJ-23145-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
4DA-23144-L0-00
Superseded by 4PU-23144-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON ROD ASSEMBLY
4JW-2314A-30-00
|
$362.99 | ||
|
Unavailable |
|||
|
#11
CYLINDER COMP., FRONT FORK
4JX-23170-L0-00
|
$413.99 | ||
|
Unavailable |
|||
|
#12
VALVE COMP.
4JY-2316A-L0-00
|
$356.99 | ||
|
Unavailable |
|||
|
#13
BOLT, CAP
4EW-23111-L0-00
|
$318.39 | ||
|
Unavailable |
|||
|
#14
GASKET
3JD-23158-L0-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, SNAP
3SP-23153-L0-00
|
$1.00 | ||
|
Unavailable |
|||
|
#16
COLLAR
3SP-23113-L0-00
|
$36.99 | ||
|
Unavailable |
|||
|
#17
SPACER, OIL LOCK
3SP-23166-L0-00
|
$14.99 | ||
|
Unavailable |
|||
|
#18
NUT, SPECIAL
3SP-23393-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#19
O-RING
3JD-23147-L0-00
|
$4.50 | ||
|
Unavailable |
|||
|
#20
SEAT, SPRING UPPER
4JX-23142-L0-00
|
$33.99 | ||
|
Unavailable |
|||
|
#21
SPRING, FRONT FORK (K=0.42)
4JW-23141-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#22
SEAT, SPRING LOWER
3XJ-23143-L0-00
|
$15.99 | ||
|
Unavailable |
|||
|
#23
PLUG
3JD-2312G-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR 1
4JX-23363-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
NUT
3SP-23357-L0-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
FRONT FORK ASSEMBLY (R.H)
4JW-23103-30-00
|
$907.99 | ||
|
Unavailable |
|||
|
#27
TUBE, OUTER (RIGHT)
4JW-23136-30-00
|
$687.99 | ||
|
Unavailable |
|||
|
#28
INNER TUBE COMP.1
4EW-23110-L0-00
|
$377.99 | ||
|
Unavailable |
|||
|
#29
PISTON, FRONT FORK
3XJ-23171-L0-00
Superseded by 5EB-23171-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#30
METAL, SLIDE 1
4EW-23125-L0-00
|
$17.99 | ||
|
Unavailable |
|||
|
#31
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
OIL SEAL
3XJ-23145-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#33
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
SEAL, DUST
4DA-23144-L0-00
Superseded by 4PU-23144-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#35
PISTON ROD ASSEMBLY
4JW-2314A-30-00
|
$362.99 | ||
|
Unavailable |
|||
|
#36
CYLINDER COMP., FRONT FORK
4JX-23170-L0-00
|
$413.99 | ||
|
Unavailable |
|||
|
#37
VALVE COMP.
4JY-2316A-L0-00
|
$356.99 | ||
|
Unavailable |
|||
|
#38
BOLT, CAP
4EW-23111-L0-00
|
$318.39 | ||
|
Unavailable |
|||
|
#39
GASKET
3JD-23158-L0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#40
RING, SNAP
3SP-23153-L0-00
|
$1.00 | ||
|
Unavailable |
|||
|
#41
COLLAR
3SP-23113-L0-00
|
$36.99 | ||
|
Unavailable |
|||
|
#42
SPACER, OIL LOCK
3SP-23166-L0-00
|
$14.99 | ||
|
Unavailable |
|||
|
#43
NUT, SPECIAL
3SP-23393-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#44
O-RING
3JD-23147-L0-00
|
$4.50 | ||
|
Unavailable |
|||
|
#45
SEAT, SPRING UPPER
4JX-23142-L0-00
|
$33.99 | ||
|
Unavailable |
|||
|
#46
SPRING, FRONT FORK (K=0.42)
4JW-23141-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#47
SEAT, SPRING LOWER
3XJ-23143-L0-00
|
$15.99 | ||
|
Unavailable |
|||
|
#48
PLUG
3JD-2312G-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#49
COLLAR 1
4JX-23363-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#50
NUT
3SP-23357-L0-00
|
$4.60 | ||
|
Unavailable |
|||
|
#51
HOLDER, AXLE
4EW-23167-L0-00
|
$39.99 | ||
|
Unavailable |
|||
|
#52
NUT, FLANGE
2KF-23127-01-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#53
UNDER BRACKET COMP.
4JX-23340-L0-00
|
$420.99 | ||
|
Unavailable |
|||
|
#54
BOLT, FLANGE
95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
PROTECTER COMP., 2
4MX-2314J-L0-00
|
$133.99 | ||
|
Unavailable |
|||
|
#56
PROTECTER COMP., 1
4MX-2314H-L1-00
|
$133.99 | ||
|
Unavailable |
|||
|
#57
BOLT 2
3SP-23356-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
PROTECTER GUIDE COMP., 2
4MX-2314G-L0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
PROTECTER GUIDE COMP., 1
4MX-2314F-L0-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SCREW, PAN HEAD
98517-04020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
COVER, HOSE
4EW-2314E-L0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#62
BOLT, FLANGE
4DA-23346-L0-00
Superseded by 95024-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
GUIDE, CABLE
4EW-2331E-L0-00
Superseded by 4EW-2331E-L1-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
