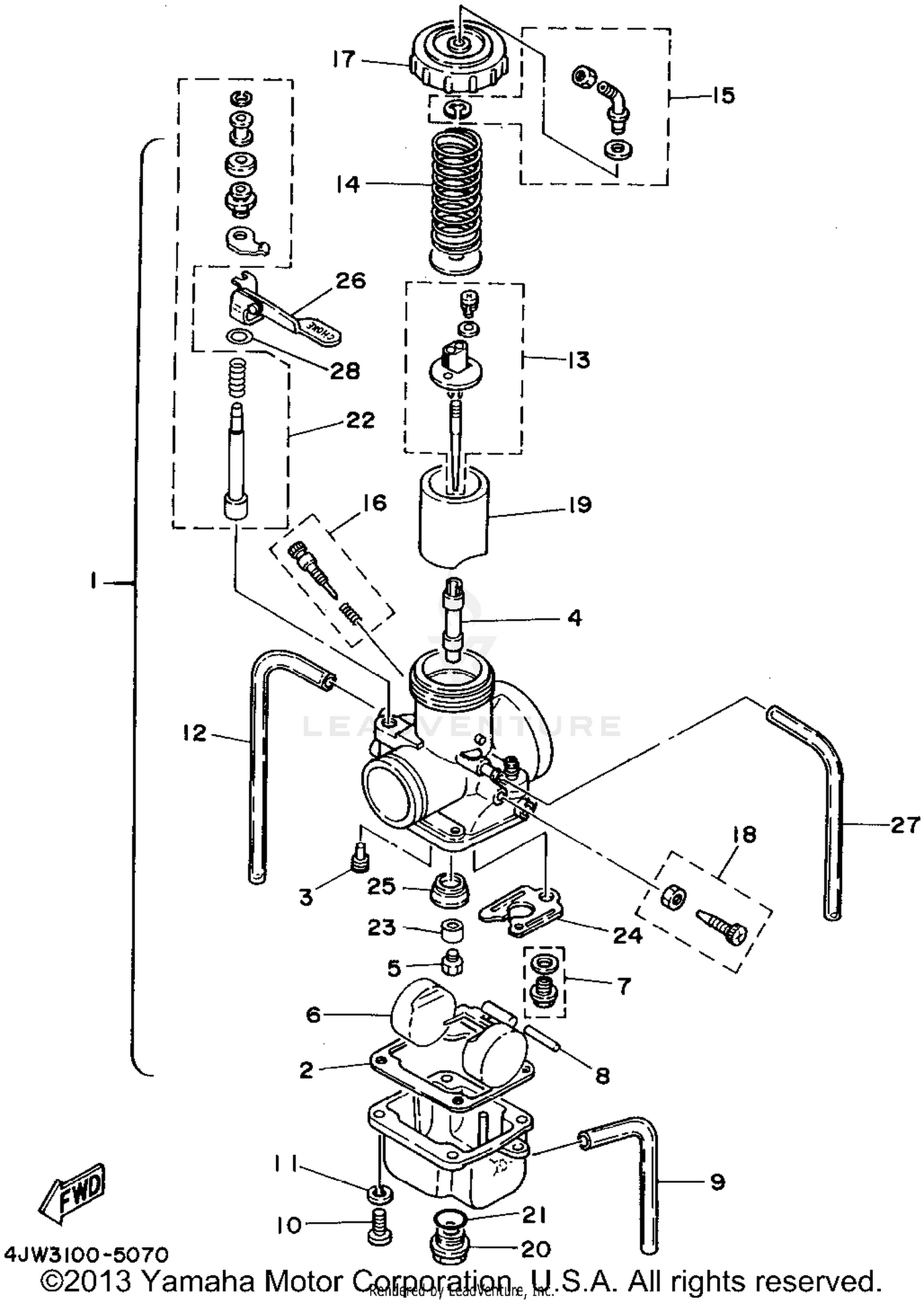

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
4JW-14101-10-00
|
$391.99 | ||
|
Unavailable |
|||
|
#2
GASKET, FLOAT CHAMBER
363-14184-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, PILOT(#40)
193-14142-40-A1
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT (#45)
193-14142-45-A1
|
$6.99 | ||
|
Unavailable |
|||
|
#
JET, PILOT 35
193-14142-35-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NOZZLE, MAIN
510-14141-R4-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
510-14141-R2-00
|
$25.21 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
510-14141-R0-00
|
$17.24 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (380)
137-14143-76-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#390)
137-14143-78-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#400)
137-14143-80-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
2N7-14185-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE VALVE SET
23X-14107-35-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE (43214-19700-00)
510-14197-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98507-05016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE
2HH-14197-00-00
Superseded by 2J2-14196-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE SET
23X-1490J-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#14
SPRING, THROTTLE VALVE
431-14131-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#15
CABLE ADJUST SCREW SET
23X-14106-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AIR SCREW SET
23X-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOP, MIXING CHAMBER
5Y9-14158-00-00
|
$92.33 | ||
|
Unavailable |
|||
|
#18
THROTTLE SCREW SET
23X-14103-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, THROTTLE 1
2X8-14112-40-00
|
$125.99 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
2X8-14112-35-00
|
$184.99 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
2X8-14112-45-00
|
$201.99 | ||
|
Unavailable |
|||
|
#20
PLUG, SCREW
510-14115-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#21
O-RING
558-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTER SET
26A-1410A-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#23
WASHER, MAIN JET
5X5-14153-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#24
PLATE
3R4-14146-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#25
SETTER, NEEDLE JET
509-14145-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#26
COVER, PLUNGER CAP (1W3-14173
1W3-14175-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#27
HOSE
3SP-14149-00-00
Superseded by 8AX-14987-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#28
WASHER
256-14954-00-00
|
$7.49 | ||
|
Unavailable |
|||
