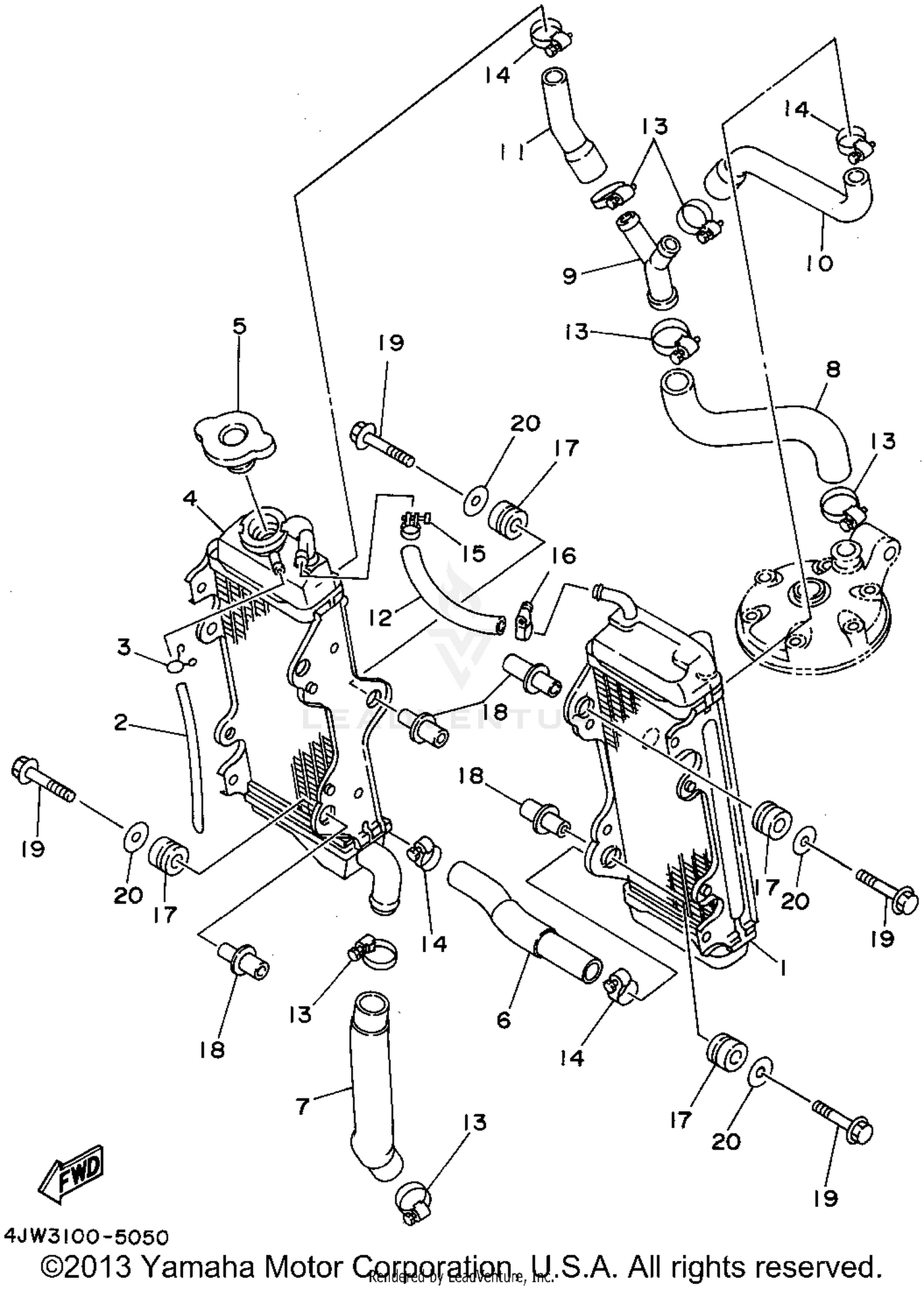

Radiator - Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSEMBLY
4EW-1240A-01-00
|
$869.99 | ||
|
Unavailable |
|||
|
#2
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
RADIATOR ASSEMBLY
4JW-12461-00-00
|
$576.99 | ||
|
Unavailable |
|||
|
#5
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE 2
4JW-12482-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#7
PIPE 3
4JW-12483-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#8
PIPE 5
4JW-12485-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#9
JOINT 1
24X-12469-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE 6
4JW-12476-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#11
PIPE 7
4EW-12477-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#12
PIPE 8
4JW-1248A-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE CLAMP ASSY
90450-22052-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE CLAMP ASSEMBLY
90450-15041-00
|
$7.99 | ||
|
Unavailable |
|||
|
#16
HOSE CLAMP ASSY
90450-17036-00
Superseded by 90450-14M05-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-15528-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
90560-07382-00
|
$18.49 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95027-06050-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
