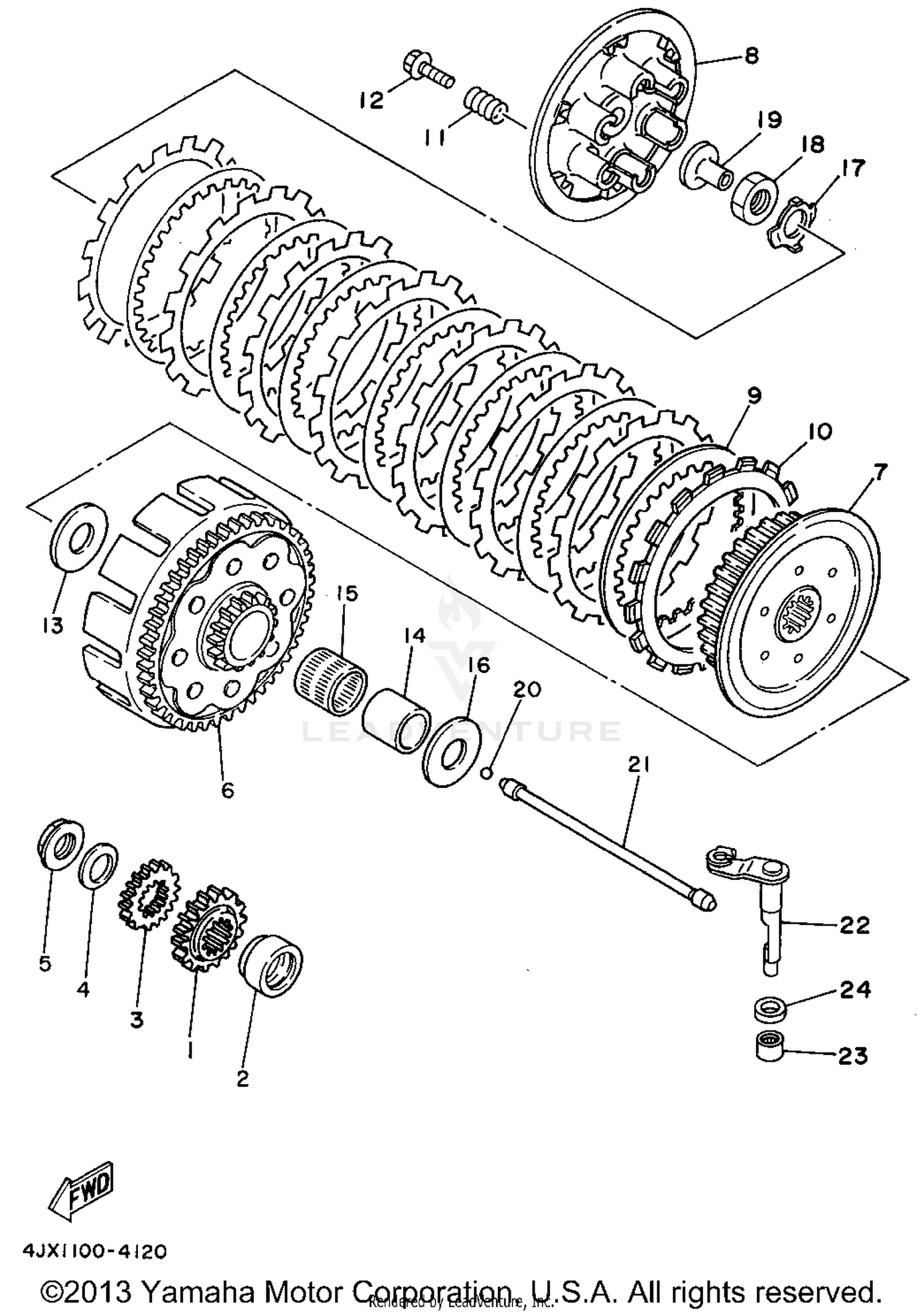

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
2VM-16111-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-252F6-00
|
$18.99 | ||
|
Unavailable |
|||
|
#3
GEAR, GOVERNOR DRIVE
3XK-11956-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, CONICAL SPRING
90208-18025-00
|
$10.49 | ||
|
Unavailable |
|||
|
#5
NUT
90179-18172-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PRIMARY DRIVEN GEAR COMP.
4EW-16150-00-00
Superseded by 4EW-16150-01-00
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, CLUTCH
4EW-16371-01-00
Superseded by 5NX-16371-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, PRESSURE 1
4EW-16351-00-00
Superseded by 4EW-16351-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH 2
4X7-16325-00-00
Superseded by 4X7-16325-10-00
|
$15.49 | ||
|
Unavailable |
|||
|
#10
PLATE, FRICTION
3XK-16321-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-23598-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, WITH WASHER
90159-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, THRUST 1
2K7-16154-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER 1
2VM-16181-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93310-230T7-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, THRUST 1
3SP-16154-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#17
WASHER, LOCK
90215-20231-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90170-20255-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 1
4EW-16356-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#20
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, PUSH 2
4EW-16357-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PUSH LEVER COMP.
4EW-16381-00-00
Superseded by 4EW-16381-01-00
|
$105.99 | ||
|
Unavailable |
|||
|
#23
BEARING
93315-11206-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
