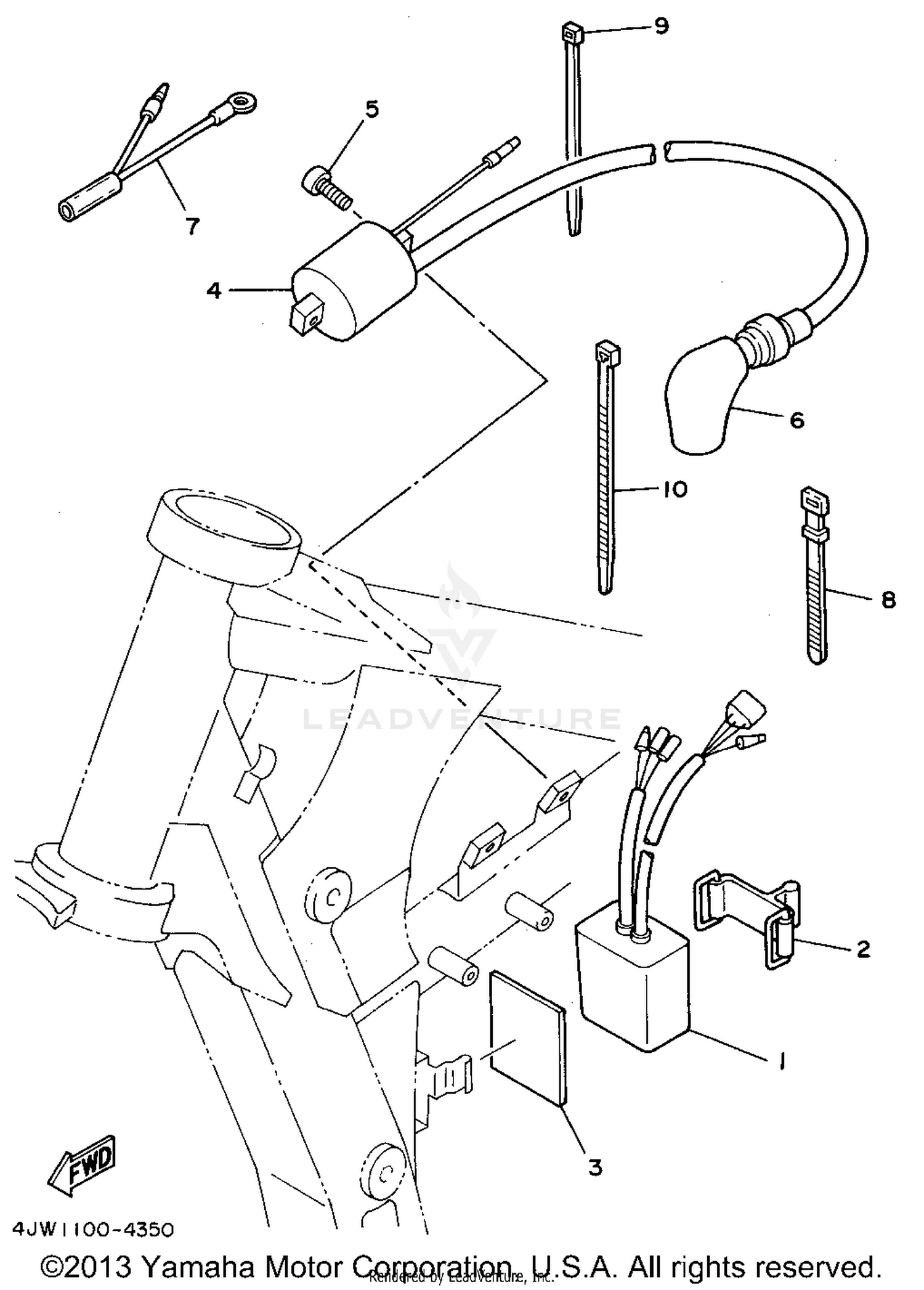

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSEMBLY
3RB-85540-11-00
Superseded by 4EW-85540-00-00
|
$228.99 | ||
|
Unavailable |
|||
|
#2
BAND, TOOL
5H9-21376-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
3RB-85547-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#4
IGNITION COIL ASSEMBLY
4JX-82310-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91311-06016-00
Superseded by 91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG CAP ASSY
81E-82370-20-00
Superseded by 8DG-82370-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE, EARTH LEAD
5X1-82519-01-00
|
$16.99 | ||
|
Unavailable |
|||
|
#8
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
