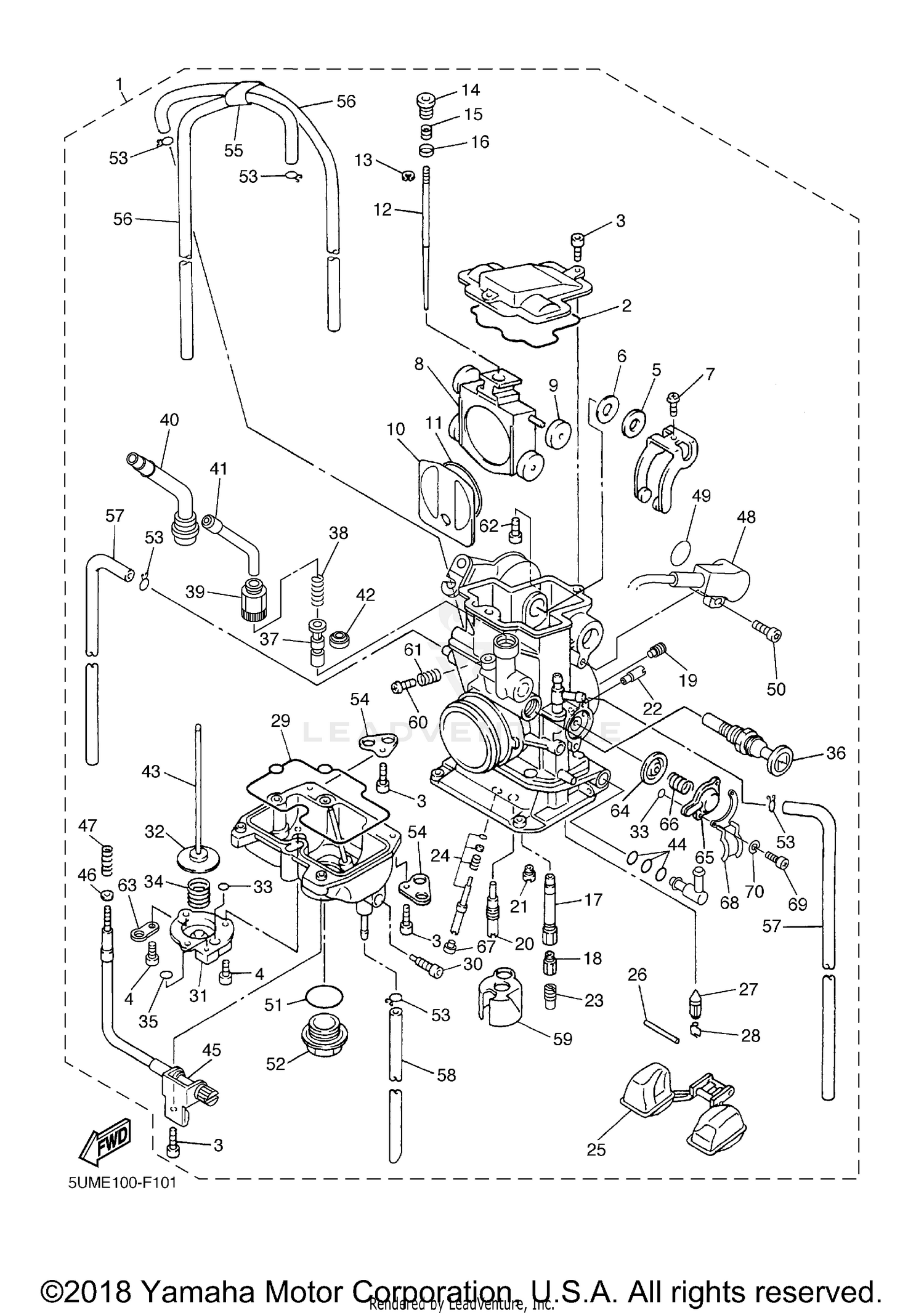

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
5UM-14101-E0-00
Superseded by 5UM-14101-E3-00
|
$1,232.99 | ||
|
Unavailable |
|||
|
#2
GASKET
5JG-14959-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-04012-00
Superseded by 91317-04012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
688-14592-00-00
Superseded by 98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90202-08045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
5JG-14951-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, ADJUST
5JG-14522-00-00
Superseded by 5JG-14522-09-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE, VACUUM CONTROL
2S2-14388-00-00
|
$415.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROLLER
3TJ-14267-40-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE, NEEDLE
5JG-14546-01-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
4FN-14997-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE (NJRU)
5UM-14916-RU-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
3TJ-14159-40-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, ADJUST
5JG-14521-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
5JG-14275-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
5JG-14264-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, NEEDLE
5TJ-14947-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET, MAIN (#170)
4MX-14943-41-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET (#115)
5UM-1494F-30-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, SLOW (#42)
4MX-14948-04-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET (#68)
3TJ-1494F-14-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#70)
5TA-14943-15-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET (#70)
4JT-1494F-15-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PILOT SCREW SET
5NL-14105-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLOAT
4SR-14985-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, FLOAT ARM
676-14548-00-00
Superseded by 663-14548-00-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
PILOT SCREW SET
4MX-14392-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
633-14159-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET, FLOAT CHAMBER
5JG-14984-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG, DRAIN
3TJ-14191-40-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER 1
3TJ-14293-40-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DIAPHRAGM, ACC PUMP (DPH#30)
5JG-14940-76-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
3TJ-14536-40-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, DIAPHRAGM
3TJ-14933-40-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
6H4-14561-00-00
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLUNGER, STARTER
5XC-14171-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLUNGER, STARTER
5TA-14371-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, PLUNGER
5TA-14335-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
5TA-14991-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
CAP, PLUNGER
2S2-14374-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
GUIDE, CABLE
5TA-14155-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SEAL
5TA-14997-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
ROD, STARTER
5JG-14379-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
O-RING
3TJ-14564-40-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW, THROTTLE
5XC-14922-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, PLATE
90201-08410-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING, THROTTLE STOP
5TA-14934-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
THROTTLE SENSOR ASSY
5XC-85885-00-00
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
O-RING
5NX-14562-00-00
Superseded by 33D-14562-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW
5NX-14216-00-00
Superseded by 1DX-14216-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
O-RING
4MX-14561-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PLUG, SCREW
4MX-14115-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
CLIP
3TJ-14137-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
PLATE
5BE-14146-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
HOLDER
5TA-14261-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PIPE, OVER FLOW 1
5UL-14196-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
PIPE
5TA-14197-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
HOSE
5TJ-14987-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
PLATE
5JG-14346-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SCREW
5JG-14565-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
SPRING, ADJUST SCREW
5JG-14531-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
SCREW
5GS-14591-00-00
Superseded by 5GS-14591-09-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
PLATE
5PA-14146-00-00
|
$4.95 | ||
|
Unavailable |
|||
|
#64
DIAPHRAGM ASSY
5GS-14940-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
COVER, DIAPHRAGM
5GS-14958-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
SPRING, DIAPHRAGM
5GS-14933-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#67
CAP
5TJ-14118-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
PLATE
5TJ-14243-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
SCREW, PAN HEAD
98502-04010-00
Superseded by 98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
