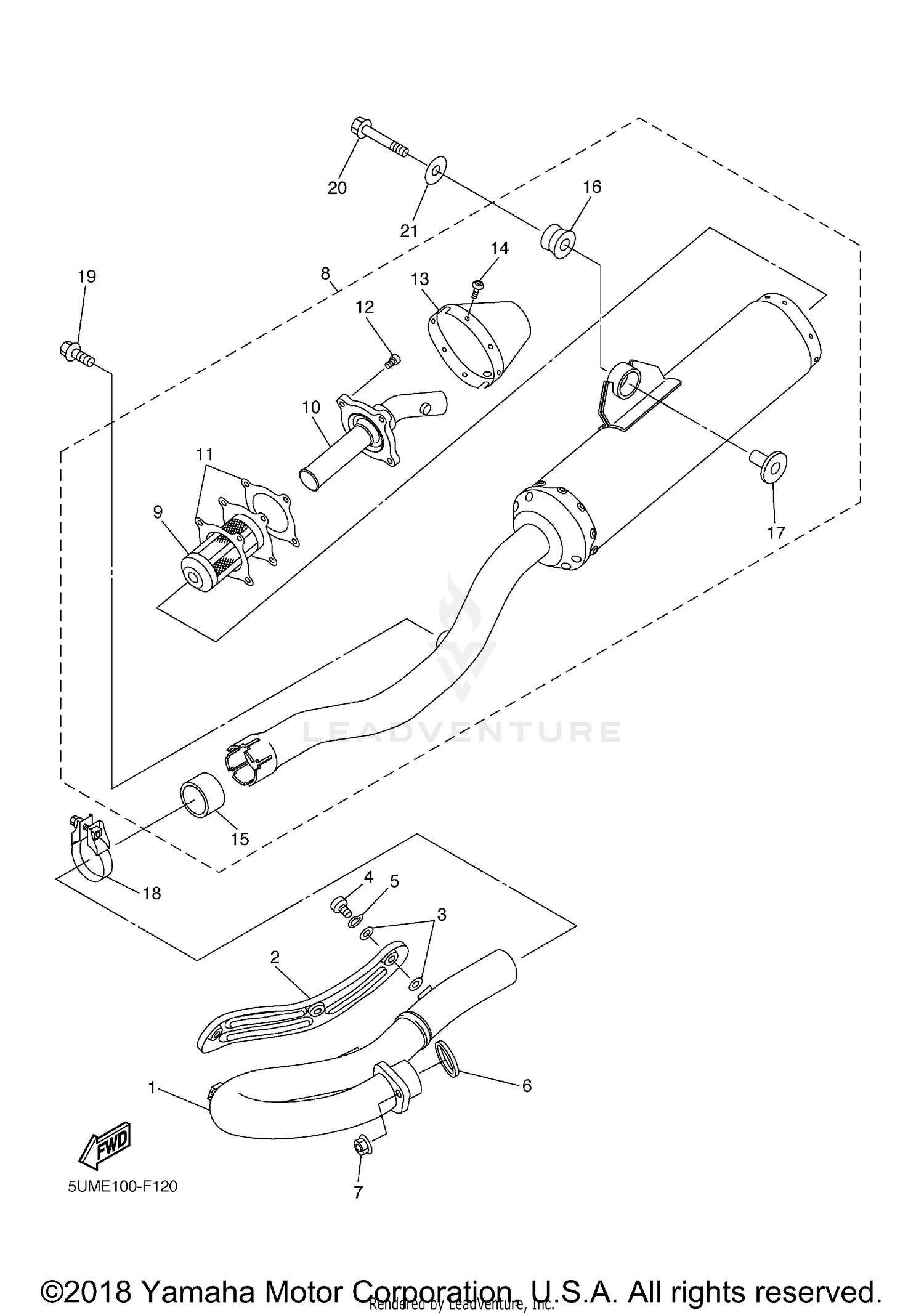

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
5UM-14611-10-00
|
$474.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
5XC-14628-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
5NL-14613-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, WITH WASHER
95702-08500-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER ASSY 1
5UM-14710-E0-00
|
$732.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK ARRESTER ASSY
5TJ-14780-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, TAIL
5TJ-14784-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, EXHAUST PIPE
5TJ-14623-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-05041-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
5TJ-14799-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92012-05008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, MUFFLER
5PH-14714-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, MUFFLER
5BE-14747-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-08081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, SILENCER
5BE-14788-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-08224-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-08137-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-08061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
