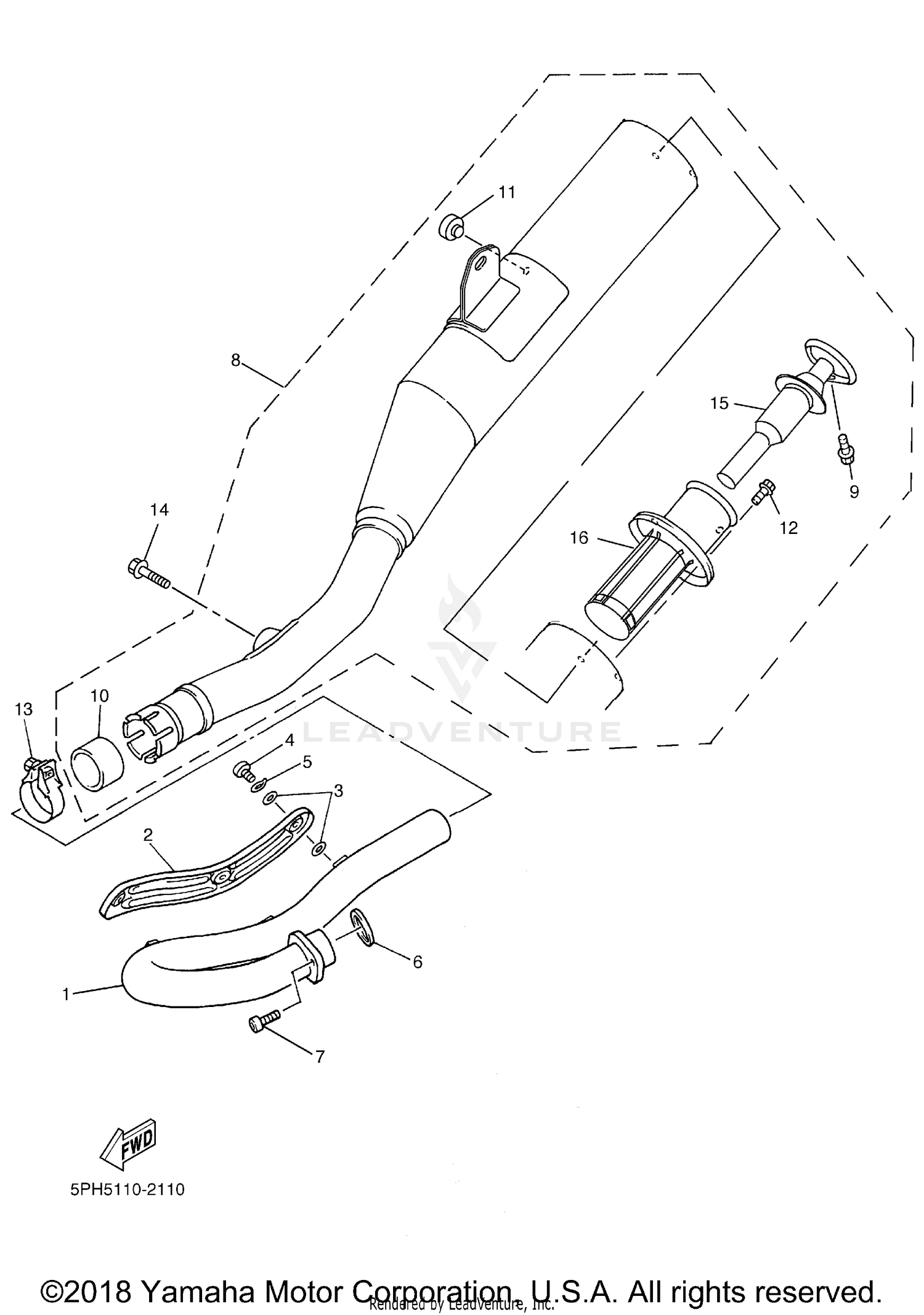

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
5NL-14611-00-00
Superseded by 5UM-14611-00-00
|
$431.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
5NL-14628-00-00
Superseded by 5XC-14628-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
5NL-14613-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. SOCKET HEAD
91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER ASSY 1
5PH-14710-00-00
|
$692.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95804-06010-00
Superseded by 95880-06010-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, MUFFLER
5PH-14714-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95804-06016-00
Superseded by 95814-06016-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, SILENCER
5BE-14788-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95817-08014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE
5BF-14752-00-00
|
$120.99 | ||
|
Unavailable |
|||
|
#16
ARRESTOR, SPARK
5BF-14786-00-00
|
$223.99 | ||
|
Unavailable |
|||
