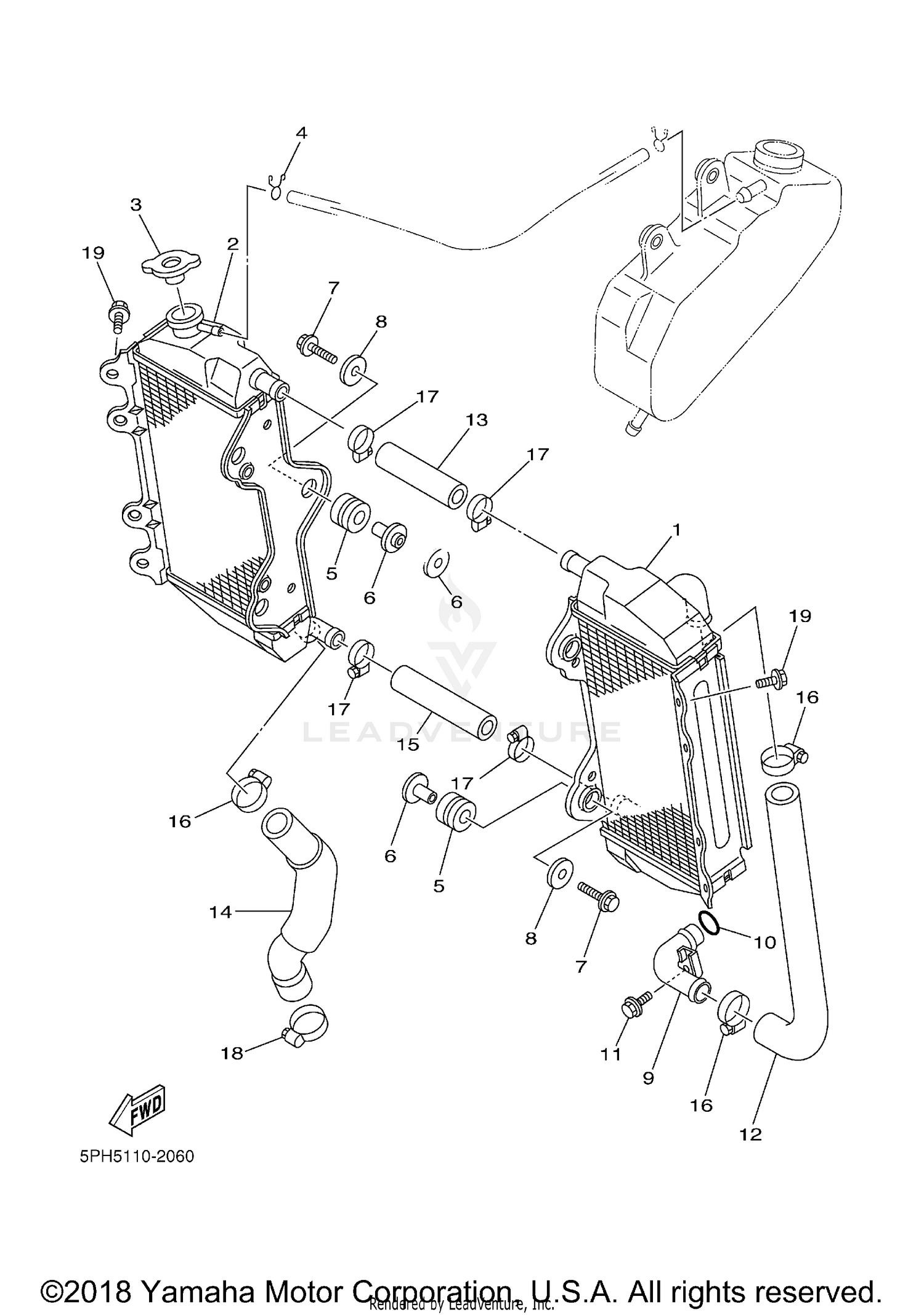

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
5PH-1240A-00-00
|
$321.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR ASSY
5PH-12461-00-00
|
$314.99 | ||
|
Unavailable |
|||
|
#3
CAP, RADIATOR
5HD-12462-00-00
Superseded by 4FL-12462-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-15528-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06004-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06030-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE 1
5NL-12481-00-00
Superseded by 5NL-12481-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-15414-00
Superseded by 93210-15566-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-06012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 1
5SG-12576-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 2
5SG-12577-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE 3
5SG-12578-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE 4
5SG-12579-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$16.49 | ||
|
Unavailable |
|||
|
#18
HOSE CLAMP ASSY
90450-32015-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
