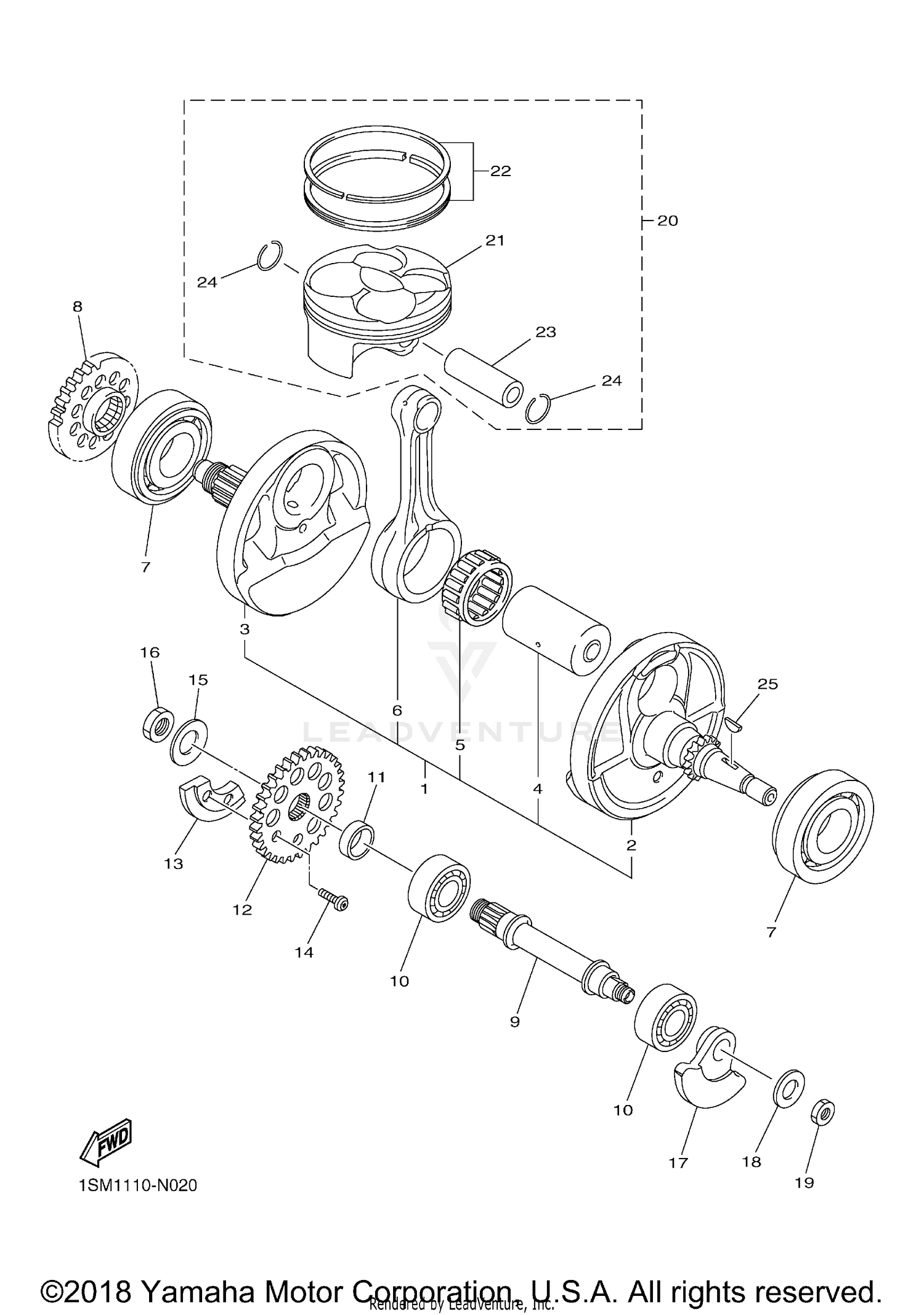

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
2GB-11400-01-00
|
$485.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
2GB-11412-00-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
1SM-11422-00-00
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CRANK 1
1SM-11681-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-63096-00
Superseded by 93310-63097-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
2GB-11651-01-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-20648-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE (30T)
1SM-11536-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT 1
1SM-11455-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20351-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-175R2-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, BALANCE WEIGHT
1SM-11531-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WEIGHT 1
1SM-11454-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06083-00
Superseded by 90149-06084-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CONICAL SPRING
90208-14033-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WEIGHT 2
1SM-11464-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, CONICAL SPRING
90208-10001-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90170-10405-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PISTON ASSY
1SM-116A0-01-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PISTON (STD)
1SM-11631-01-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PISTON RING SET (STD)
1SM-11603-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, PISTON
1SM-11633-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
93450-17129-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
KEY, WOODRUFF
90280-03006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
