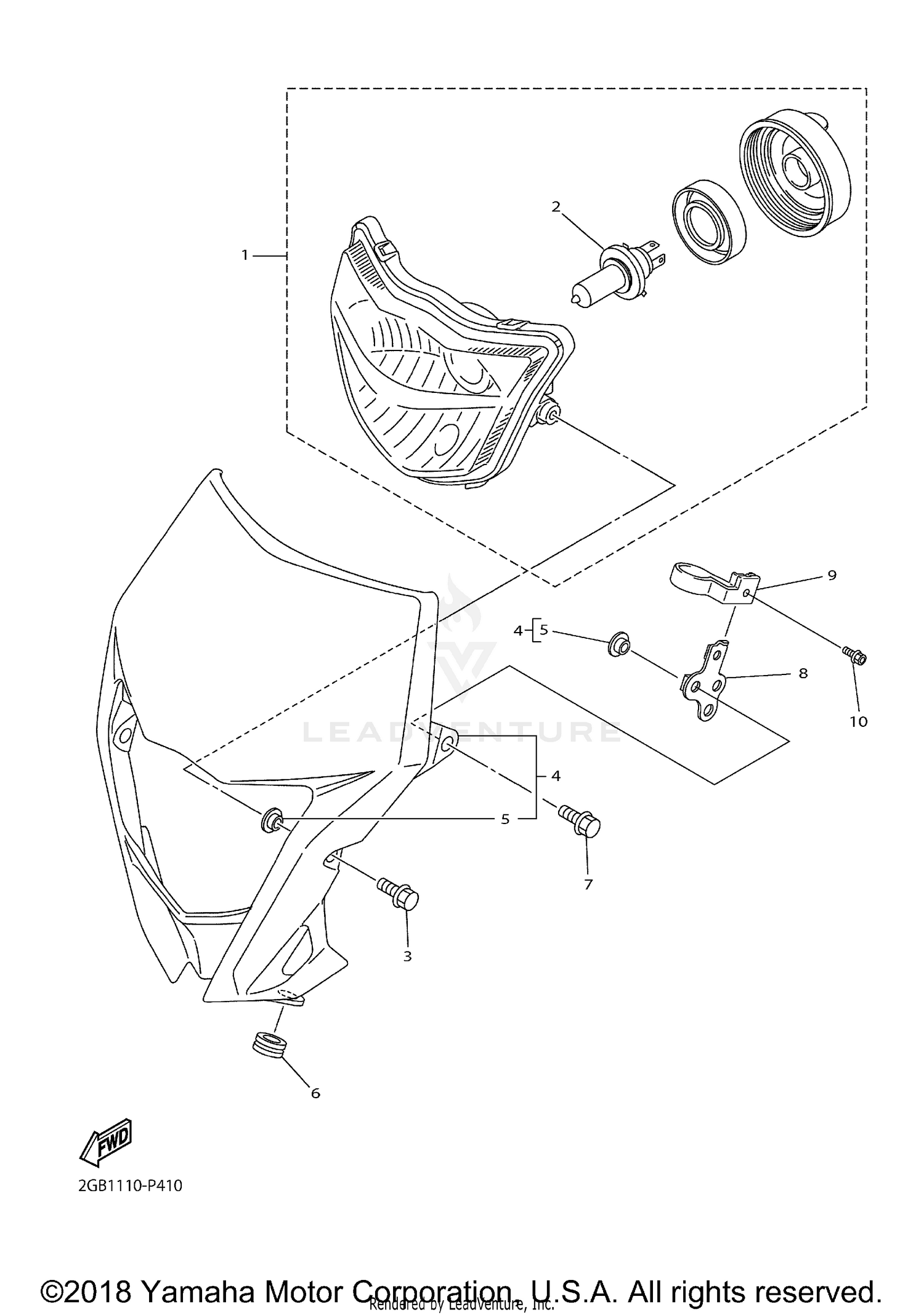

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY
2GB-84300-00-00
|
$160.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, HEADLIGHT (1
1DX-84314-00-00
Superseded by 5ST-H4314-10-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY ASSY
1DX-84330-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06170-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-12020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
Unavailable |
|||
|
#8
STAY, HEAD LIGHT 1
2GB-2831V-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, CABLE
5TJ-2331E-80-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08154-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
