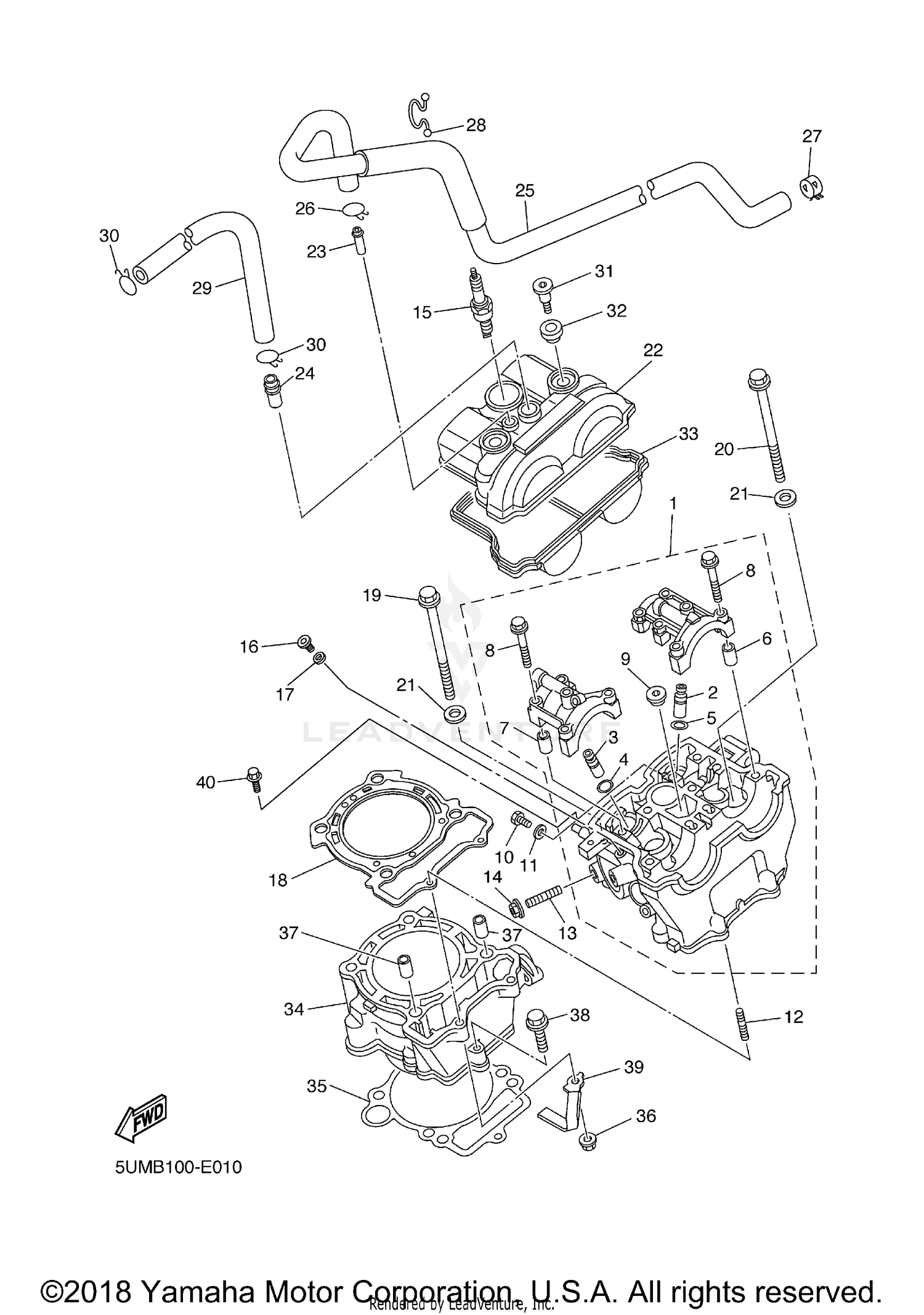

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5UM-11101-00-00
Superseded by 5UM-11101-02-00
|
$910.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5NL-11133-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
5NL-11134-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-10153-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-07149-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
90105-06027-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, STRAIGHT SCREW
90340-12112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-06541-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD
95612-08620-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, WITH WASHER
95702-08500-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, SPARK (NGK CR8E)
NGK-CR8E0-00-00
Superseded by CR8-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#15
CR9E NGK SPLUG 4PK
NGK-CR9E0-00-00
Superseded by CR9-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#16
PLUG, STRAIGHT SCREW
90340-12112-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CYLINDER HEAD 1
5NL-11181-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-09004-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-09002-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-096J9-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, CYLINDER HEAD 1
5NL-11191-10-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, BREATHER 2
5BE-11167-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE, BREATHER 2
371-11167-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, BREATHER 1
5TJ-11166-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90468-08104-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE
90445-112K0-00
Superseded by 90445-117F2-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90109-066F0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
RUBBER, MOUNT 1
4KG-1111G-00-00
Superseded by 5EA-1111G-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET, HEAD COVER 1
5NL-11193-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CYLINDER 1
5XC-11311-01-00
Superseded by 5XC-11311-20-00
|
$518.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, CYLINDER
5NL-11351-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, DOWEL
93612-16254-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
95022-06035-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP, HOSE 1
5UM-11387-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE
95827-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
