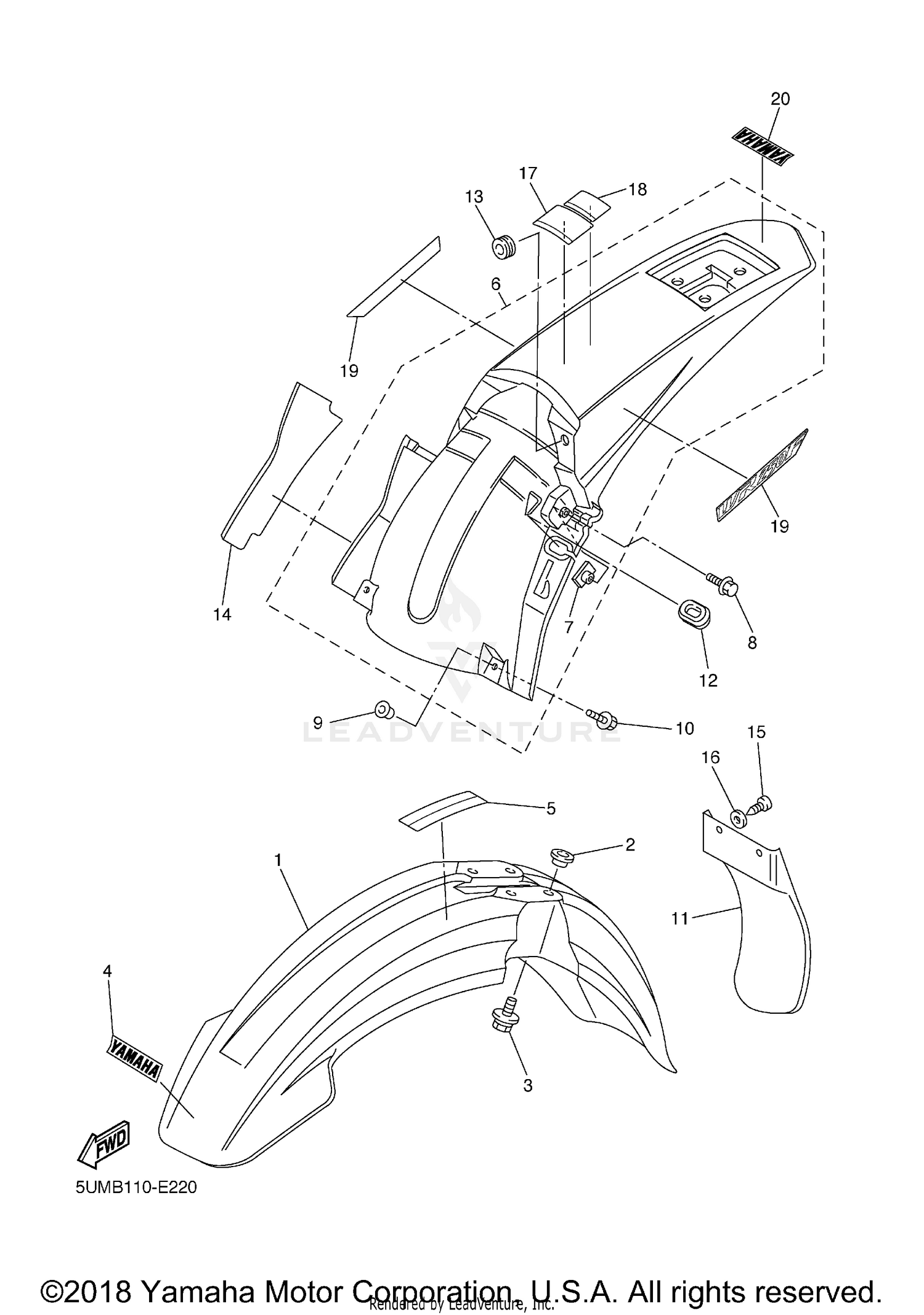

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1C3-21511-50-00
Superseded by 1C3-21511-51-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, CAUTION
3FB-2415E-01-00
Superseded by 3FB-2415E-02-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
5TJ-21610-80-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, REAR FENDER
5XD-21635-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-06192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-06009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06225-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, FLAP
5TA-21642-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-01512-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-14532-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
INSULATOR, SIDE COVER 2
5TA-2174T-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING
97707-60016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-06557-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
LABEL, CAUTION
5PA-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
LABEL 5
3XJ-2151H-A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
EMBLEM 1
5UM-2163G-20-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$13.99 | ||
|
Unavailable |
|||
